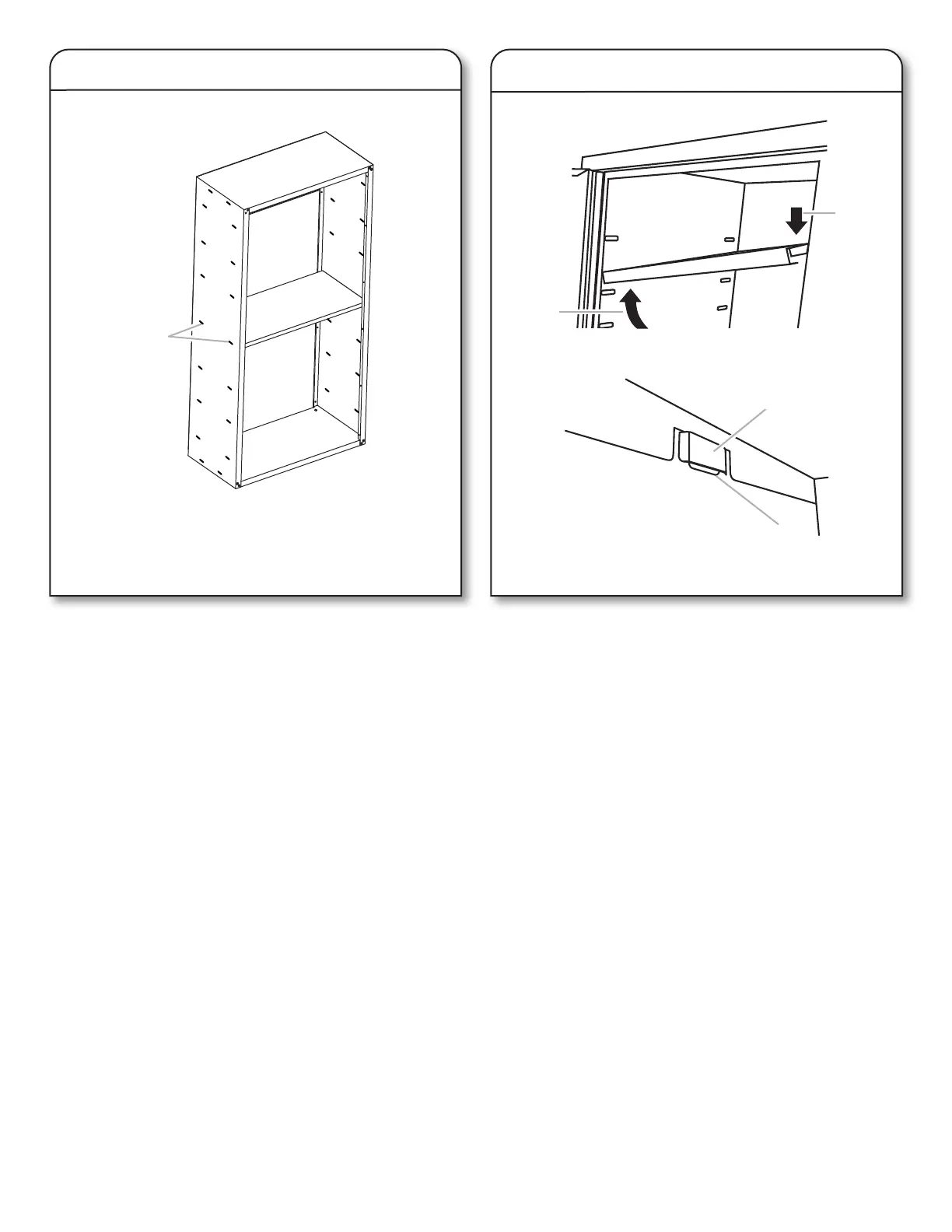

4a. Install Shelves
The shelves are supported by the metal slots on the cabinet
sides.
IMPORTANT: Install shelf (P5) in the center of the cabinet so the
door will lock. Install shelves (P5m) in the cabinet so that one is
above and one is below center shelf (P5) to best use the magnetic
closures. Make sure the long edges with the magnets are facing
the cabinet front. Place shelf (P5) so that the two tabs in the shelf
ends are aligned with the pair of slots in the middle of the cabinet
sides.
Adjust the Shelves
Lift up on the underside of the shelf until the shelf tabs are free of the cabinet slots. Tilt the shelf up to reposition it within the cabinet or
to remove it from the cabinet.
A
P1
P2
P1
P3
P5
A. Middle pair of slots in cabinet side
4b. Install Shelves
Tilt the shelf so that one end is higher than the other as shown.
Insert the shelf into the cabinet so that the higher end is directly
above the desired slots and push the shelf down into place
behind the side slots. Raise the lower end so it is directly above
the desired slots and push the shelf down.
NOTE: You may need to slightly bend the shelf tabs outward for
the tabs to engage in the slots. Make sure the shelf tabs are in
place behind all the slots, as shown. Repeat steps 2 and 3 for the
remaining two shelves.
A
B
A
B
A. Push down
B. Lift up
A. Cabinet slot
B. Shelf tab
