Glastender LP60 - EVAPORATORS AND RELATED PARTS

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax 800.838.0888 / 989.752.4444 • www.glastender.com
21
2
3
4
5

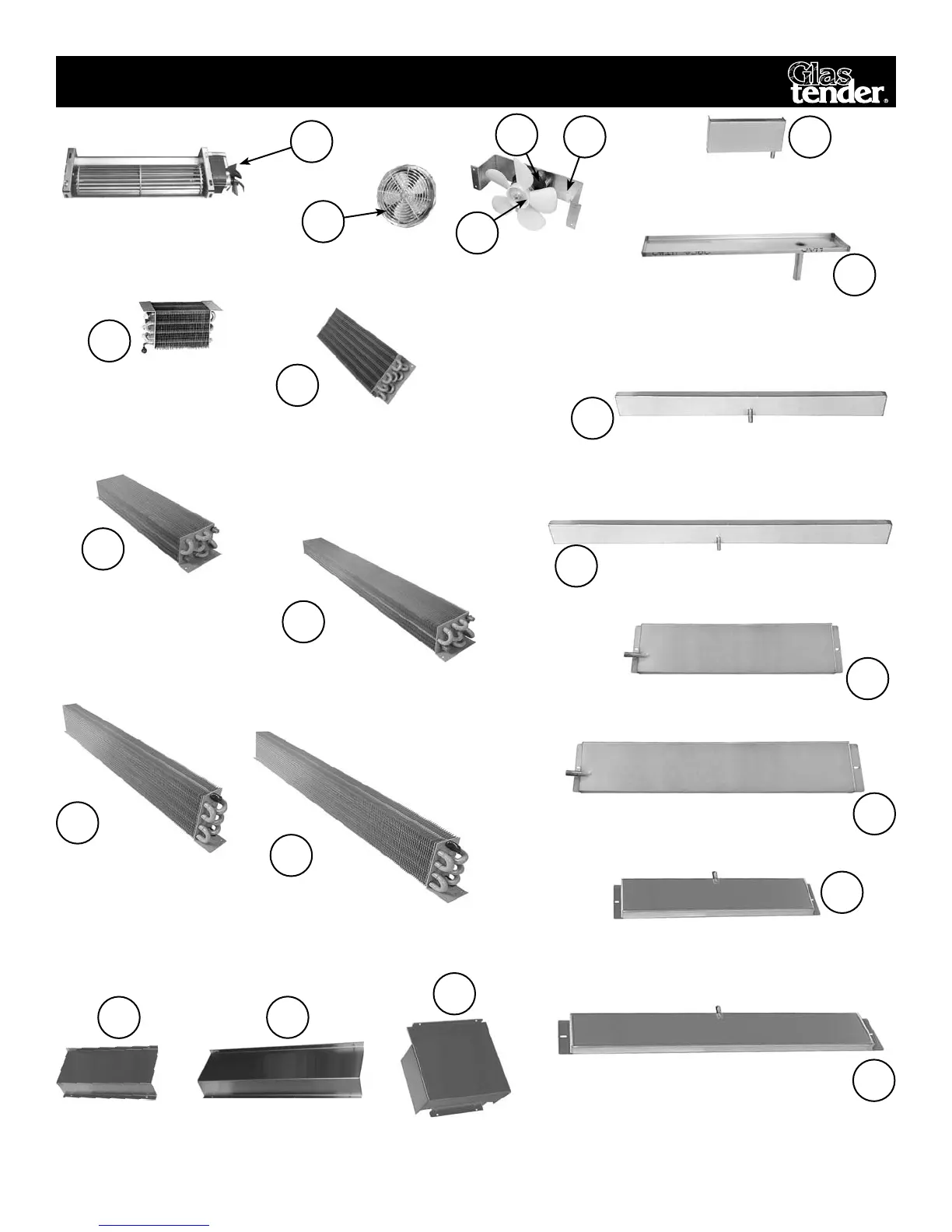

eVaPorators anD relateD Parts
06001386
Evaporator Coil for
Non Endwall Models
BB48, BB60, BB72, BB84,
ND48, ND40, ND52, ND60 ND72,
KC48, KC72, KC84
(27-1/2” L, 4” H, 1-7/8” W)
08000077
Evaporator Coil for
BB96, BB108, ND80
(38-1/2” L, 4” H, 1-7/8” W)
06001390
Evaporator Coil for
BB24 Remote, BB36, LP48,
LP60, PT48, FV24, FV48
(18-3/4” L, 2-5/8” H, 4” W)
06001391
Evaporator Coil for
LP72, LP84, LP96, LP108,
PT72, PT84, PT96, PT108
(39-1/4” L, 2-5/8” H, 4” W)
8
9
10
11
06000479
Drain Pan for Non Endwall Models
BB48, BB60, BB72, BB84,
ND52, ND72, KC48, KC72, KC84
(28-5/8” L, 2-5/8” H, 3/4” W)
06000481
Drain Pan for BB96, BB108
(39-1/2” L, 2-5/8” H, 3/4” W)
18
06000620
Drain Pan for PT48
(20-3/8” L, 4-3/4” H, 1” W)
19
06000607
Drain Pan for PT72, PT84, PT96, PT108
(41-1/8” L, 4-3/4” H, 1” W)
20
06000613
Drain Pan for BB24 Remote, BB36, LP48, LP60
(20-3/8” L, 4-3/4” H, 1” W)
21
06000632
Drain Pan for LP72, LP84, LP96, LP108
(41-1/8” L, 4-3/4” H, 1” W)
22
06003683
Evaporator Drain Pan, Left, for Endwall Models
BB36, BB60, BB84, BB108,
ND52, ND72, ND92,
KC52, KC72, and KC84
(19-1/8” L, 5” H, 1/2” W)
16
1
15
6
06001387
Evaporator Coil for
BB24 Self-contained , KC24
(8” L, 4-1/8” H, 3-1/2” W)
06000174
Drain Pan for BB24 Self-contained, KC24
(8-1/2” L, 3-7/8” H, 1” W)
06001893
Evaporator Coil for
Endwall Models
BB36, BB60, BB84, BB108,
ND52, ND72, ND92,
KC52, KC72, KC84
(16” L, 6” H, 4” W)
7
17
14
12
13
Blower Motor Assembly
Endwall BB84, BB108,
ND72, ND92, KC52, KC72, KC84
Evaporator Fan Replacement Parts
Endwall BB36, BB60, ND52 & All Non Endwall Models
