Global Surgical SMR MAXI Standard User Manual

Section 5 Care and Maintenance
5-8
WARNING
ELECTRICAL SHOCK HAZARD! DISCONNECT ALL ELECTRICAL POWER
PRIOR TO REPLACING FUSE.
WARNING
THE REPLACEMENT OF THE FUSE SHOULD BE DONE ONLY BY QUALIFIED
SERVICE PERSONNEL.
5.6. Replacing the fuse in the Optional S 740200LED LED Light Source
For further information see the S 740200LED Light Source manufacturer’s owner’s manual LIT 168, LLS-200
1. Unplug cabinet from the wall outlet.
2. Remove the top two drawers under the light source. If the cabinet has a drawer warmer disconnect the
power to the drawer warmer and then remove the drawer.
3. Reach behind the light source and remove the power cord from the back of the light source.
See Figure 5-4.
4. Remove the two screws on the bottom of the light source.
5. Remove the screws on the front of the light source plate.
6. Pull the light source forward to gain access to the fuse compartment on the back of the unit.

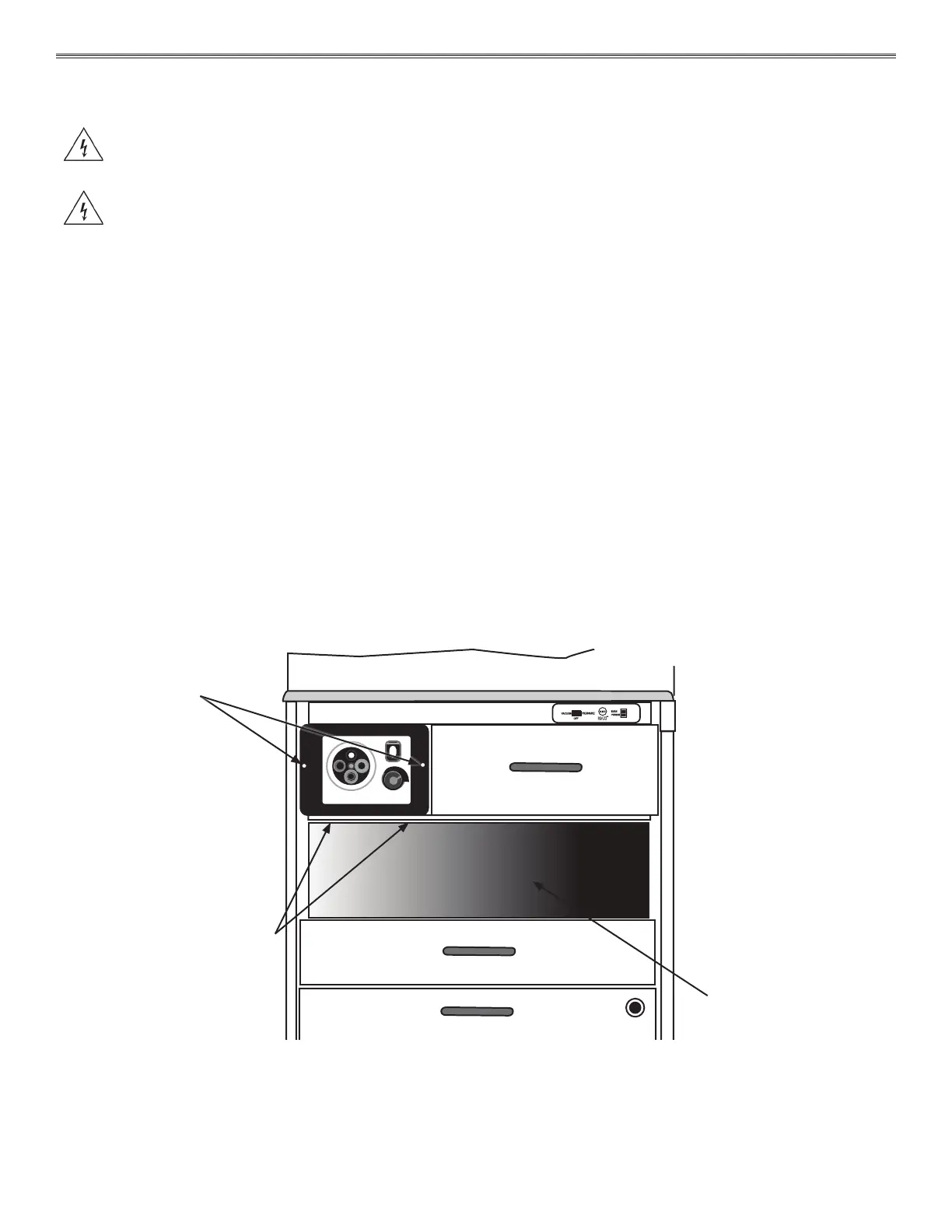

Figure 5-4. Replacing the S 740200LED Light Source Fuse
VACUUM
PRESSURE
OFF
MAIN
POWER
MAXI
TM
S M R
I
O
Remove the top two
drawers under the
light source during this
procedure
Remove the two
screws under the
light source
Remove the two
screws on the face
plate
