Glow-worm EASICOM 3 25r User Manual

Installation 5
0020177748_03 ENERGY Installation and maintenance instructions 13

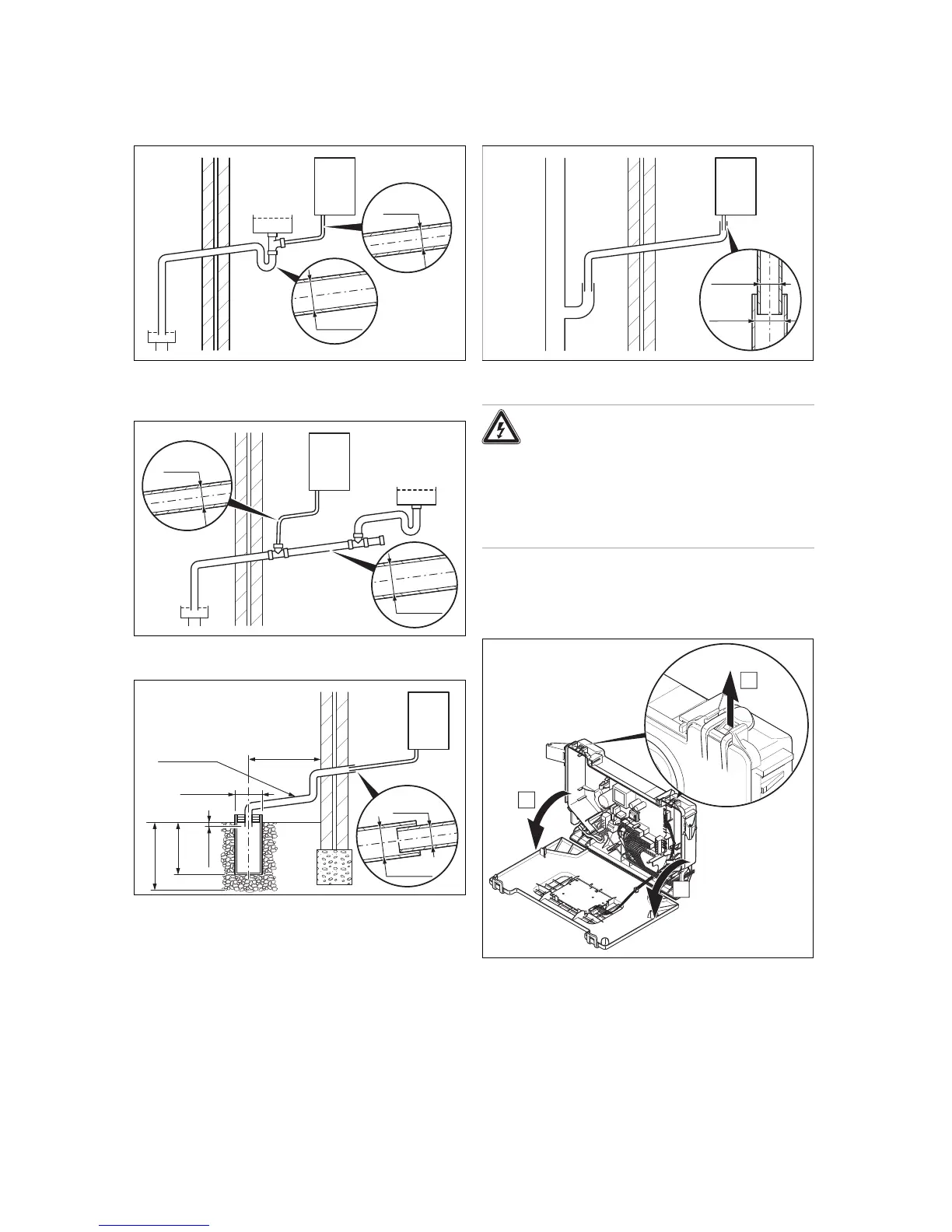

5.6.1.4 Internal termination into combined sink
waste
Ø30mm
Ø19mm
min
5.6.1.5 Internal termination downstream of sink
waste
Ø30mm
Ø19mm
min
5.6.1.6 External termination into soakaway
400mm min
300mm
min
25mm
min
500mm min
Ø100mm
L = 3m max
Ø19mm
min
Ø30mm
5.6.1.7 External termination into rain water down
pipe
Ø19mm
min
Ø30mm
5.7 Electrical installation
Danger!
Risk of death from electric shock!
The power supply terminals L and N remain
live even if the product is switched off:
▶ Switch off the power supply.
▶ Secure the power supply against being
switched on again.
Only qualified electricians may carry out the electrical install-
ation.
5.7.1 Opening the electronics box
A
B
B
▶ Follow the instructions in the specified sequence.
