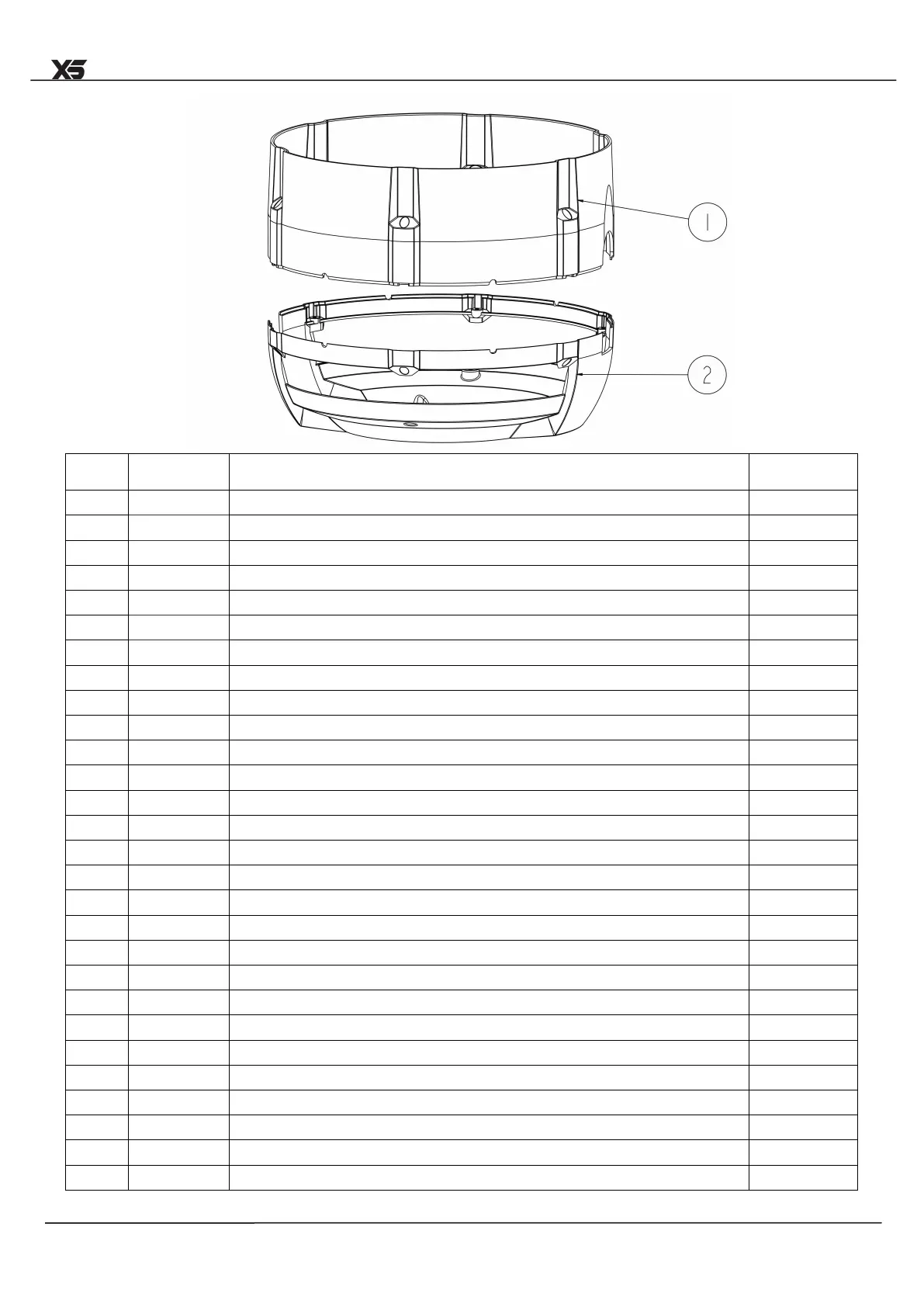

POS
CODE
NAME
QUANTITY
1
308010547
X5-HEAD-BEZEL
1
2
308010548
X5-HEAD-BACKCOVER-2
1
3
308000126
TRM-1_GROMMET
4
4
308011581
X5-EGG-CRATE-EXTENSION
1
5
207011403
X5-LENSHOLDER-TEST2
1
6
207011399
PRIMARY-OPTICS-X5
19
7
303010282
KREUZSCHLITZ-LINSENKOPF-M3X10-S
38
8
315006087
IMPRESSION_X5_LED-DRIVER _I_1_4_
4
9
315006090
IMPRESSION_X5_LED-DRIVER_O_1_3_
1
10
315006056
IMPRESSION_X5_MID_LED-RGBL_1_0
1
11
315006055
IMPRESSION_X5_FIRST-RING-RGBL_1
2
12
315006057
IMPRESSION_X5_SECOND-RING-RGBL_
4
13
303010412
KREUZSCHLITZ-SENKKOPF-M3X6
20
14
304031322
ACCESSORY-PIN
4
15
303010138
KREUZSCHLITZ-SENKKOPF-M3X12
4
16
303010456
INBUS-ZYLINDERKOPF-M3X10
16
17
207011396
X5-ZOOM-MAGNET
2
18
304031346
KREUZSCHLITZ-BLECHSCHRAUBE-3X5
6
19
207011397
X5-ZOOM-STOPPER
2
20
304031324
ACCESSORYHOLDER-X5
4
21
207011468
X5-ZOOM-BRACKET-NEW-ASSEMBLY
2
22
304031351
X5-TILT-AXIS-PSU
1
23
303010447
INBUS-ZYLINDERKOPF-M4X12
2
24
303020011
PLAIN WASHER Φ3-7
8
25
303010315
STOPPER MUT M3
4
26
308000400
X5_SECOND-RING-RGBL-FOR-SINK
4
27
308000401
X5_FIRST-RING-RGBL-FOR-SINK
2
28
308000402
X5_MID_LED-RGBL-FOR-SINK
1
