The seven-wire harness contains the following
trailer circuits:
D
Yellow: Left Stop/Turn Signal
D
Dark Green: Right Stop/Turn Signal
D
Brown: Taillamps
D
White: Ground
D
Light Green: Back
-up Lamps
D
Red: Battery Feed
D
Dark Blue: Trailer Brake
A jumper harness for an electric trailer brake controller
and a trailer battery feed fuse are included with this
trailering package. (See “Instrument Panel Jumper
Wiring Harness” later in this section.)
If you need to tow a light
-duty trailer with a standard
four
-way round pin connector, an adapter connector is
available from your dealer.

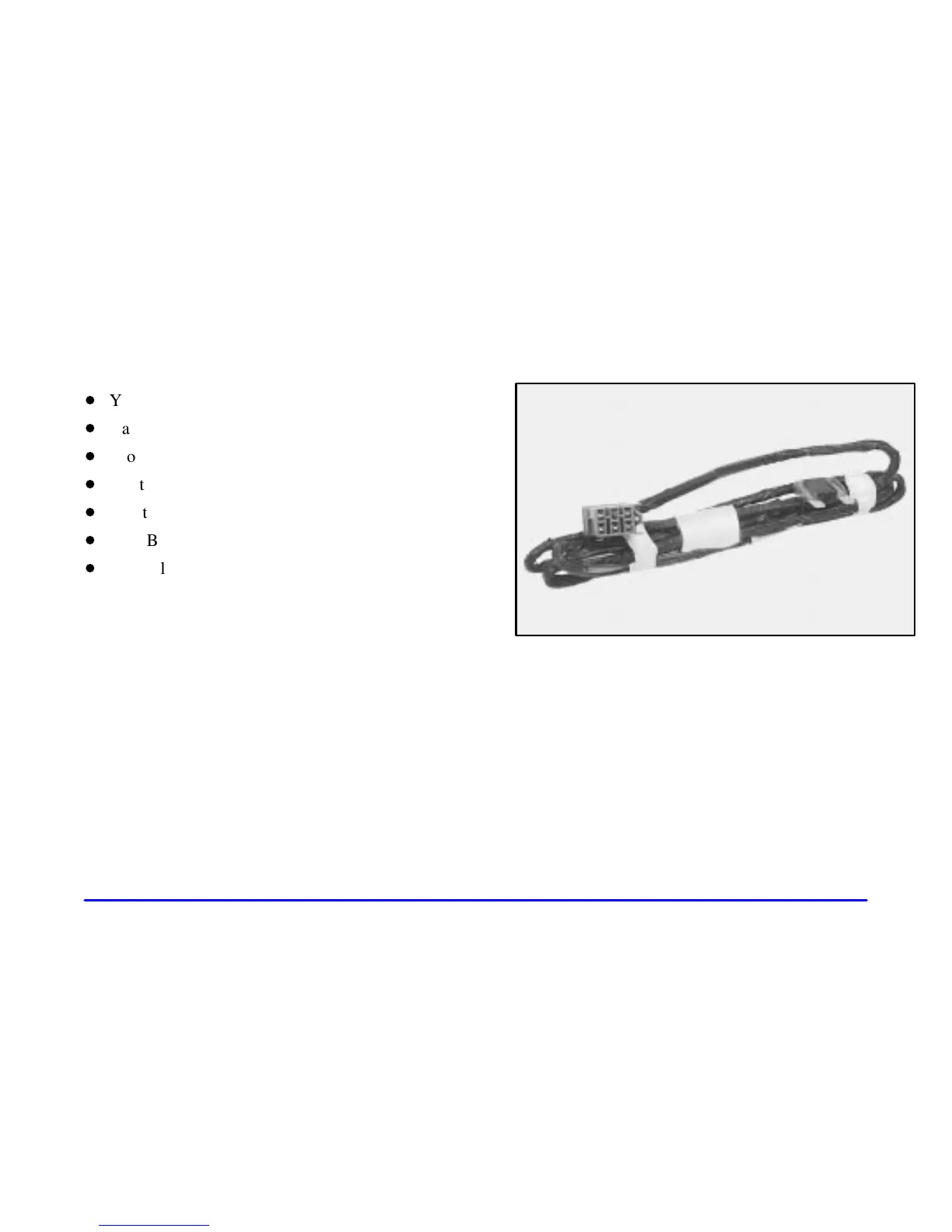

Instrument Panel Jumper Wiring Harness
This harness is included with the heavy-duty and
camper/fifth
-wheel trailer wiring packages. The harness
is for an electric trailer brake controller and includes a
trailer battery feed fuse. This harness and fuse should be
installed by your dealer or a qualified service center.
