250 Vehicle Care

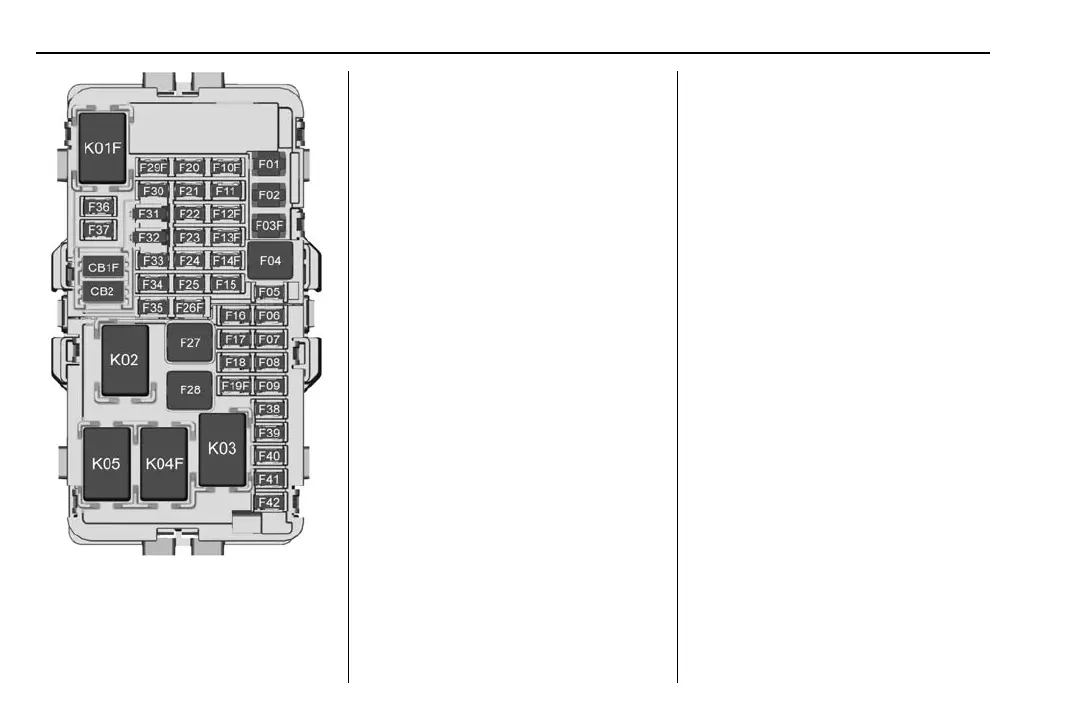

Fuses Usage
F01 DC AC inverter
F02 Front windows
Fuses Usage
F03 Trailer brake
F04 Heating, ventilation,
and air conditioning
blower
F05 Body control
module 2
F06 Cyber security
F07 –
F08 Body control
module 3
F09 Amplifier
F10 –
F11 –
F12 –
F13 –
F14 Electronic shifter
F15 Transmission control
module
F16 Front heated seats
F17 Left data link
connector
Fuses Usage
F18 Body control
module 7
F19 Exterior mirror
F20 Body control
module 1
F21 Body control
module 4
F22 Body control
module 6
F23 Electric steering
column lock
F24 Sensing and
diagnostic module
F25 Occupancy sensor
F26 –
F27 Power seats
F28 Rear windows
F29 –
F30 Front heated seats
switch
F31 Steering wheel
controls
