216 Vehicle Care

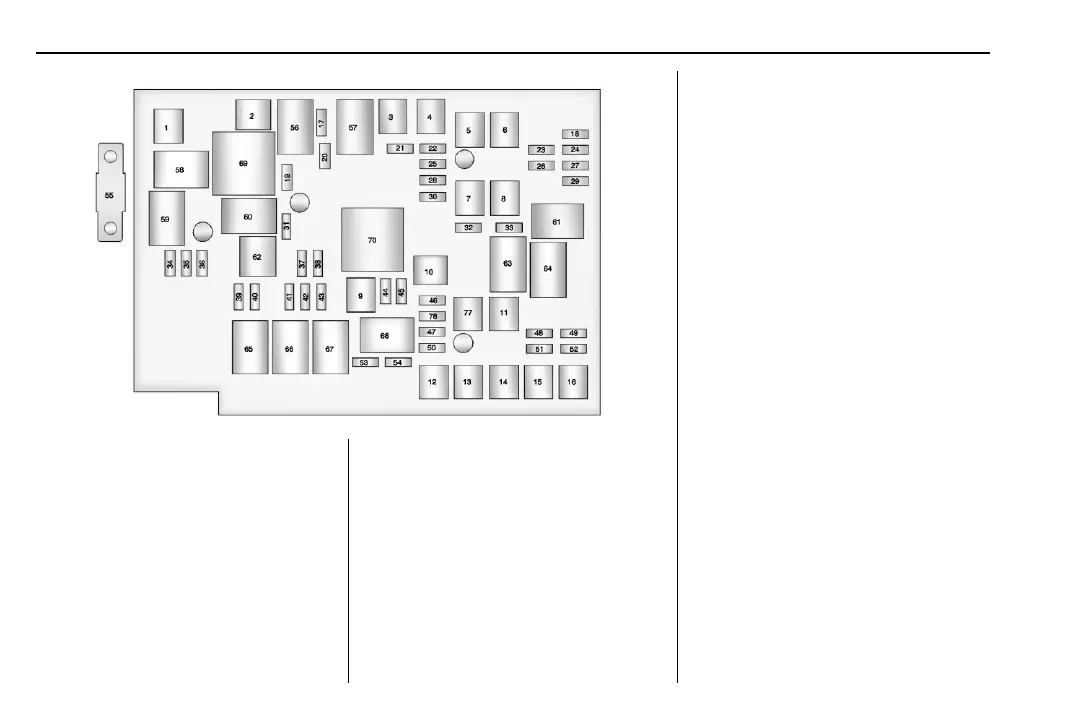

The vehicle may not be equipped
with all of the fuses, relays, and
features shown.
Fuses Usage
1 Cooling fan 1
2 Cooling fan 2
3 Brake booster
4 Right power
windows
Fuses Usage
5 Memory seat module
6 Left power seat
7 Instrument panel
fuse block 1
8 Rear defogger
9 Starter
10 AIR pump motor
Fuses Usage
11 Instrument panel
fuse block 2
12 Sunroof
13 ABS pump
14 Instrument panel
fuse block 3
15 Left power windows
16 ABS module
17 Transmission control
module battery
18 Trailer parking light
19 AIR pump solenoid
20 Engine control
module battery
21 Canister vent
22 Left trailer side (if
equipped)
23 Liftgate module
24 Power lumbar
25 Right trailer side (if
equipped)
