The vehicle may not be equipped
with all of the fuses, relays, and
features shown.

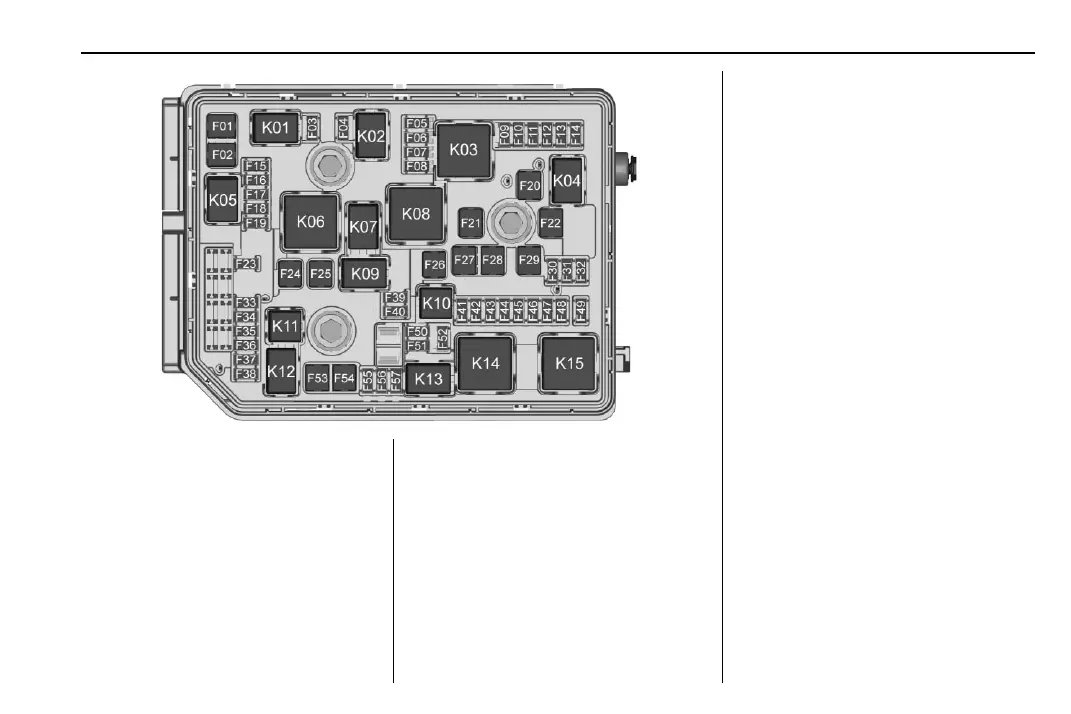

Fuses Usage
F01 Starter 1
F02 Starter 2
F03 Lambda sensor 1
F04 Engine control
module
Fuses Usage
F05 FlexFuel sensor
F06 Transmission control
module
F07 –
F08 Engine control
module
F09 Air conditioning
clutch
Fuses Usage
F10 Canister vent
F11 Fuel system
F12 Front heated seats
F13 Afterboil pump
F14 –
F15 Lambda sensor 2
F16 Fuel injectors–odd
F17 Fuel injectors–even
F18 –/Selective catalytic
reduction
module (diesel only)
F19 –/NOx soot
sensor (diesel only)
F20 DC DC converter 2
F21 Shift control
F22 Antilock brake pump
F23 Front washer
F24 –
F25 –/Diesel fuel
heater (diesel only)
F26 –
