Go Power GP-SWR-B Remote User Manual

Go Power! SWR-B Remote
Owner’s Manual
3
3.0 Mounting
1. Cut out the template attached and position it on the wall where the remote is to be
mounted.
2. Mark the location of the four holes, and the square area to be cut out. Note: Remote
switch assembly requires 1.2” (3.0’cm) minimum clear panel depth.
3. Drill the four two holes, 7/64” (2.8’mm) diameter and remove the cutout area.
4. Feed the connector and wire though the cutout hole in the panel and route the wire to
the inverter remote port.
5. Position the remote switch assembly upright and secure to the panel using the four
screws provided. Plug the remote cord into the inverter.

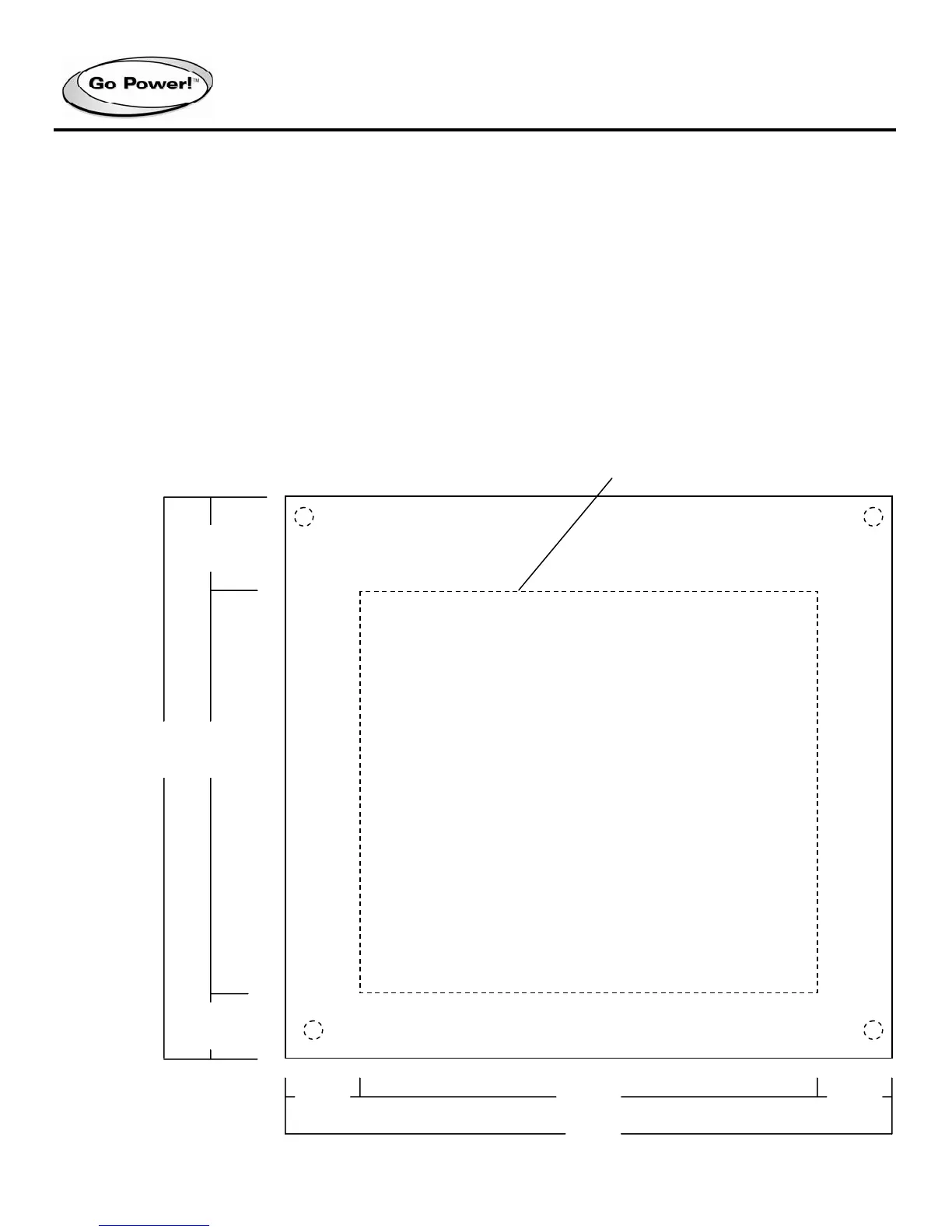

3.1 Mounting Template
1.6 cm 9.8 cm 1.6 cm
5/8” 3 7/8” 5/8”
13 cm
5 1/8”
Cutout area
2 cm
13/16”
12.1 cm 8.6 cm
4 ¾ “ 3 ¾”
1.4 cm
9/16”

Go Power GP-SWR-B Remote Specifications

General

Brand	Go Power
Model	GP-SWR-B Remote
Category	Remote Control
Language	English
