(2)
(3) (4) (5) (6) (7)
Ÿ Be careful when removing NiMH batteries. Do not use sharp
or conductive tools to remove either of these batteries.
Note:
Ÿ Remove the batteries before storing your radio for extended
periods of time. Batteries corrode over time and may cause
permanent damage to your radio.
Ÿ Do not mix old and new batteries and Do not mix alkaline, standard
(carbon-zinc) or rechargeable (ni-cad, ni-mh, etc.) batteries.
The micro-USB charger is a handy port that allows you to
conveniently charge your NiMH battery. Use certified
adaptor(5
V, ≥1A). Do not attempt to charge alkaline batteries.
2. Plug the micro-USB cable into the micro-USB charging port on
Using the Micro-USB Charger
Battery Capacity Maintenance
3. Store the NiMH batteries in temperature between -20 °C to 35 °C
and in low humidity. Avoid damp conditions and corrosive materials.
1. Charge the NiMH batteries once every 3 months when not in
use.
2. Before placing the radio in storage, remove the battery.
1. Make sure your radio is turned OFF.
Note:
Ÿ It is recommended to power OFF your radio while charging.
Ÿ When moving between hot and cold temperatures, do not
charge the NiMH batteries until the battery temperature
acclimates (usually about 20 minutes).
Ÿ For optimal battery life, remove the radio from the charger within
16 hours. Do not store the radio while connected to the charger.
Turning your Radio On and Off
1. First press either or to trigger volume change. You will
see current volume level on screen.
Do not hold the radio close to your ear. If the volume is set to an
uncomfortable level, it could hurt your ear.
1. Press and hold on the button to turn your radio ON/OFF.
In the ON position, the radio chirps and briefly shows all
feature icons available on the radio.
2. The display screen then shows the current channel, code and
all features that are enabled. The radio is in Two-Way mode.
Setting the Volume
Press and hold button for three seconds to listen to volume
level.
2. Press to increase the volume. Press to decrease the
volume.
3. When the volume reached level 0 the mute icon appears
permanently on screen.
To communicate, all radios in your group must be set to the same
channel and Interference Eliminator Code.
1. To talk, press and hold the PTT button. When transmitting, the
icon is shown.
2. When you are finished talking, release the PTT button.
3. When receiving, the icon is shown.
For maximum clarity, hold the radio 2 to 3 centimeters away from
your mouth and speak directly into the microphone. Do not cover
the microphone while talking.
Talk Range
Your radio is designed to maximize performance and improve
transmission range. Do not use the radios closer than five feet apart.
Push-to-Talk Timeout Timer
Press and hold button for 3 seconds to enter monitor mode
and listen for weak signals on the current channel. You can also
listen to the volume level of the radio when you are not receiving.
This allows you to adjust the volume, if necessary. You can also
press button to check for activity on the current channel before
you talk.
Monitor Button
To prevent accidental transmissions and save battery life, radio
will stop transmitting if you press PTT button for 60 seconds
continuously.
Mode Button
Press and hold button for 3 seconds, the user will be
seamlessly switching between two-way and weather mode.
TALKING AND LISTENING
(9)(8)
MENU OPTIONS
Selecting the Channel
The channel is the frequency of the radio uses to transmit.
1. Press the button until the channel number starts to flash.
Sub-Codes help minimize interference by blocking transmission
from unknown sources. Your radio has 121 Sub-Codes.
Selecting the Interference Eliminator Code
2. Press or button to change the channel number.
To set the code for a channel:
1. Press the button until the code number starts to flash.
2. Press or button to select code number.
3. Press the PTT button to exit menu or button to continue setup.
3. Press the PTT button to exit menu or button to continue setup.
Setting and Transmitting Call Tones
1. Press button until call tone 'CA' appears. The current call
tone setting flash.
2. Press or button to change and listen to the call tone.
3. Press the P
TT button to exit menu or button to continue setup.
Voice Operated Transmission (VOX)
Transmission is initiated by speaking into the microphone of the
radio instead of pushing the PTT button.
1. To activate VOX, press button until 'VOX' appears on the
display. The current setting (0, 1-3) will flash.
Your radio can transmit different call tones to other radios in your
group when you pressed button. The radio has 20 call tones.
To set a call tone:
For better battery life, your radio is designed to switch to Power
Save mode when it has been no transmissions after 5 seconds.
The radio can receive transmissions in this mode.
can hear the transmission.
LED Lamp
3. To stop scanning, briefly press the button.
Your radio has a built-in-LED Lamp.
Briefly press the button once to ON the lamp, press again to
OFF the lamp.
Scanning Notes:
Automatic Power Save
(11)(10) (12)
Note: If you set the same channel and code as current channel,
Dual Watch does not work.
SPECIAL FEATURES
(13)
(15)
(14)
9 467.5875 MHz 0.5W 20
462.6750 MHz 2W
10 467.6125 MHz 0.5W 21 462.7000 MHz 2W
11 467.6375 MHz
0.5W 22 462.7250 MHz 2W
2. When the radio detects channel activity matching the
channel and code combination, it stops scrolling and you
To Start Scanning:
1. Briefly press the button, the icon will appear in the
display and the radio will begin to scroll through the channel
and code combinations.
Keypad Tones
Your radio emits a beep each time one of the buttons is
pressed (except the PTT and button).
Press and hold the button while turning the radio ON to
switch the keypad tone ON/OFF.
Roger Tone
You can set your radio to transmit a unique tone when you
finish transmitting.

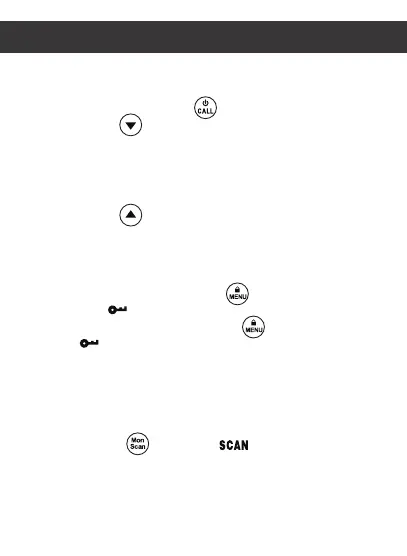

Keypad Lock
To avoid accidentally changing your radio settings:
1. To lock
the radio, press and hold button until the key
lock indicator icon on display appear.
2. To unlock the radio, press and hold button until key lock
indicator icon on display disappear.
Press and hold the button while turning the radio ON to turn
the Roger Beep ON. Repeat the step to turn Roger Beep OFF.
Scanning Receiver
Use scan to search all channels for transmissions from
400-470MHz ( only receive ), the scanning step is 250kHz.
3. Press the PTT button or button to exit the weather menu
set up.
Setting the Weather Alert
Your radio can be set to respond to NOAA Weather Radio
emergency messages. A special alarm tone sounds an alert and
turns on the weather receiver to give you immediate weather
and emergency information.
1. In weather mode press the button twice until icon
displays.
4. Press and hold button for 3 seconds to return to two-way
mode. If you activate Weather Alert and return to two-way
mode the icon will display.
2. Press or button to select On/Off.
(1)
SAFETY AND GENERAL INFORMATION
RF Exposure and Product Safety Instructions for Portable Two-
Way Radios General Populated and Uncontrolled Environments.
ATTENTION:
Before using this radio, refer to the important operating
instructions for safe usage and RF energy awareness and control
for compliance with applicable Standards and Regulations.
Ÿ Institute of Electrical and Electronic Engineers (IEEE) C95.1.
Your two-way radio contains a transmitter and a receiver. To control
your exposure and ensure compliance with the general population /
uncontrolled environment exposure limits, always adhere to the
following procedure:
Compliance with RF Exposure Standards.
Your Two-Way radio complies with the following RF energy
exposure standard and guidelines:
Ÿ United States Federal Communications Commission, Code of
Federal Regulations; 47 CFR et seq. & FCC.
Ÿ Ministry of Health (Canada) Safety Code 6 & Industry Canada
RSS-102.
Transmit and Receive Procedure
Ÿ To receive calls, release the PTT button.
Ÿ Transmit no more than 50% of the time.
Ÿ To transmit (talk), press the Push-to-Talk (PTT) button in front of
the face.
Ÿ Hold the radio in a vertical position with the microphone (and
other parts of the radio including the antenna) at least one inch
(2.5 centimeters) away from the nose or lips. Keeping the
radio at a proper distance is important to ensure compliance.
Push-to-Talk
Power On / Off
Call Tone
Lamp On / Off
Weather Switch
Speaker
Micro-USB
Charging Port
Microphone
Monitor
Scan
Lock
Menu
Screen
Accessary Port
Lamp
3. Press the PTT button to exit menu.
2. Press or button to select the sensitivity level.
L3=High Sensitivity for quiet environments
L2=Medium Sensitivity for most environments
L1=Low Sensitivity for noisy environments
L0=Turn Off VOX function
3. Press the PTT button to exit menu or button to continue setup.
2. Press or to select channels.
Enable you to scan current channel and another channel
alternately.
To set another channel and start Dual Watch.
4. Press the PTT button or wait until the time out menu to
activate Dual Watch. The screen will alternate between
Home Channel and Dual Watch Channel.
1. Press button until '2CH' appears on the display. The
current setting (OF, 1-22) will flash.
Dual Channel Monitor
To end Dual Watch mode, re-enter Dual Watch menu to select
the OFF setting.
Setting High Low Power
1. Press button until 'Pr' appears on the display.
3. Press the PTT button to set and exit menu.
2. Press or button to select HI or LO. (HI- High Power,
LO- Low Power)
WX3 162.475 MHz WX9 161.775 MHz
WX4 162.425 MHz WX10 161.750 MHz
WX5 162.450 MHz WX11 162.000 MHz
WX6 162.500 MHz
WEATHER RECEIVE
(2)
(3) (4) (5) (6) (7)
(1)
SEGURIDAD E INFORMACIÓN GENERAL
Exposición a radiofrecuencias e instrucciones de
seguridad del producto para radios portátiles de dos vías
Entornos generales poblados y no controlados.
ATENCIÓN:
Antes de usar esta radio, consultar las instrucciones de uso
importantes para un uso seguro y conciencia y control de la
energía RF para cumplir con las normas y regulaciones aplicables.
Su radio bidireccional contiene un transmisor y un receptor. Para
controlar su exposición y garantizar el cumplimiento de los
límites de exposición de la población general/ambiente no
controlado,seguir siempre este procedimiento:
Ÿ Para recibir llamadas, soltar el botón PTT.
Cumplimiento de los estándares de exposición a RF
Ÿ Para transmitir (hablar), pulsar el botón Push-to-Talk (PTT)
frente a la cara.
Ÿ Código 6 de seguridad del Ministerio de Salud (Canadá) y
RSS-102 de Industria de Canadá.
Su radio bidireccional cumple con las siguientes normas y pautas
de exposición a la energía de RF:
Ÿ Comisión Federal de Comunicaciones de los Estados Unidos,
Código de Regulaciones Federales; 47 CFR et seq. & FCC.
Ÿ Instituto de Ingenieros Eléctricos y Electrónicos (IEEE) C95.1.
Procedimiento de transmisión y recepción
Ÿ No transmitir más del 50% del tiempo.
Ÿ Sostener la radio en posición vertical con el micrófono (y otras
partes de la radio, incluida la antena) a una distancia de al
GUÍA DE PANTALLA DE VISUALIZACIÓN
Números de canal
Tono de llamada
Números para códigos
BOTONES DE CONTROL
Micro USB
Puerto de carga
Pulsar y hablar
Tono de llamada de
encendido / apagado
Encender / apagar la lámpara
Interruptor meteorológico
Altavoz
Micrófono
Monitor
de escaneo
Menú
de bloqueo
Pantalla
Puerto de acceso
Luz
Note: When the weather channel is activated, either manually or
after receiving an alert, and no buttons are pressed for 5 minutes,
the weather mode will automatically revert back to two-way
mode.
As with two-way radio reception, weather channel reception
depends on how close you are to a transmitter and whether you
are indoors or outdoors. Because weather channels are
transmitted without codes, they may contain static or noise.
Weather Alert will not function while actively transmitting or
receiving in two-way mode.
USER MANUAL
Doble escucha
Escáner
Estado
(transmitir/recibir)
VOX
Contador de batería
Volumen
/ Silenciación
Bloqueo
Alerta del tiempo
Alto voltaje
Ÿ Para una vida útil óptima de la batería, retirar la radio del
cargador en 16 horas. No guardar la radio mientras esté
conectada al cargador.
Ÿ No mezcle pilas viejas y nuevas y no mezcle pilas alcalinas,
estándar (carbono-zinc) o recargables (ni-cad, ni-mh, etc.).
Note:
Ÿ Tener cuidado al retirar las pilas NiMH. No usar herramientas
afiladas o conductoras al retirar cualquiera de estas pilas.
Ÿ Retirar las pilas antes de guardar su radio por largos períodos
de tiempo. Las pilas se corroen con el tiempo y pueden
causar daños permanentes en su radio.
Encender y apagar la radio
2. La pantalla de visualización muestra el canal actual, el código
y todas las funciones que están habilitadas. La radio está en
modo bidireccional.
Ajuste de volumen
Mantener pulsado el botón durante tres segundos para
escuchar el nivel de volumen.
1. Primero, pulsar o para activar el cambio de volumen.
Podrá ver el nivel de volumen actual en la pantalla.
2. Pulsar para subir el volumen. Pulsar para bajar el
volumen.
1. Mantener pulsado el botón para encender o apagar su radio.
En la posición ON, la radio emite un sonido y muestra
brevemente todos los iconos de funciones disponibles en la radio.
3. Cuando el volumen alcanza el nivel 0, el icono de silencio
aparece permanentemente en la pantalla.
No colocar la radio pegada a la oreja. Si el volumen está ajustado
en un nivel incómodo, podría
dañar el oído.
MANUAL DEL USUARIO DE LA
Two-way Radio Operation
Ÿ Use only approved supplied or replacement antennas and
audio accessories.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
Ÿ Reorient or relocate the receiving antenna.
Ÿ Increase the separation between the equipment and receiver.
Ÿ Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protectio
n against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications.
This device complies with Part 15 of the FCC Rules. Operation is
Ÿ Consult the dealer or an experienced radio/TV technician for help.
WARNING: Changes or modifications to this unit not
expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
CONTROL BUTTONS
DISPLAY SCREEN GUIDE
Numbers of Channel
Call Tone
Numbers for Codes
Dual Watch
Scan
VOX
Battery Meter
Status
(transmit/receive)
Volume Mute
Lock
High Power
Weather Alert
GETTING STARTED
Installing the Three AA NiMH Rechargeable Battery
3. Insert the three AA NiMH battery with + and – polarity as shown
inside.
The number of bars ( ) on the radio battery icon shown
indicates the charge remaining in the battery. When the radio
battery meter shows one segments, the radio chirps periodically
(Low Battery Alert). In battery low status, the radio will sound the
alert every 10 minutes or after releasing the PTT button.
1. Take the belt clip off.
2. With the back of the radio facing you, lift the battery cover
latch up and remove the cover.
4. Close the battery cover firmly.
Radio Battery Meter
You can listen to a weather channel (see “Weather Channels
and Frequencies” table for details). When you listen to a
weather channel, you cannot use your radio in scan mode or for
two-way communications.
Weather feature is available designed for use in USA and
Canada.
Your radio can tune in to broadcasts by the United States
National Oceanic and Atmospheric Administration (NOAA)
Weather Radio and Environment Canada Weather Radio.
Entering Weather Mode
Both NOAA and Environment Canada have transmitters
From two-way mode, p
ress and hold button for 3 seconds to
enter weather mode.
Your radio receives weather frequencies:
1. In weather mode, press the button until weather channel
number flashes.
3. Press the PTT button to set and exit menu.
Setting the Weather Channel
located throughout the United States and Canada, respectively.
These transmitters broadcast watches, forecasts and other
information 24 hours a day.
2. Press or button to select the appropriate channel with
good reception in your area.
Ÿ Funcionamiento junto al cuerpo. Cuando el dispositivo se lleva
cerca del cuerpo, colocar siempre la radio en un broche
aprobado para este producto.
Nota: La exposición a RF disminuye al aumentar la distancia de
la antena.
Funcionamiento de radio bidireccional
Ÿ Usar únicamente antenas y accesorios de audio
aprobados o reemplazados.
ADVERTENCIA: Los cambios o modificaciones de esta
unidad que no hayan sido aprobados expresamente por la
parte responsable del cumplimiento, podrían anular la
autoridad del usuario para operar el equipo.
NOTA: Este equipo ha sido probado y cumple los límites
establecidos para un dispositivo digital de Clase B, de
conformidad con la Parte 15 de las Normas de la FCC. Dichos
límites están diseñados para proporcionar una protección
razonable contra interferencias perjudiciales en una instalación
residencial. Este equipo genera, utiliza y puede emitir energía
de radiofrecuencia. Si no se instala y utiliza de acuerdo con las
instrucciones, puede causar interferencias perjudiciales en las
comunicaciones de radio.
Sin embargo, no hay
garantía de que no se produzcan
interferencias en una instalación en particular. Si este equipo
causa interferencias perjudiciales en la recepción de radio o
televisión - lo cual puede determinarse durante el encendiendo
y apagando el equipo - se recomienda al usuario que intente
corregir la interferencia realizando una de las siguientes
acciones:
Ÿ Reorientar o reubicar la antena receptora.
(1) este dispositivo no puede causar interferencias
perjudiciales, y
(2) este dispositivo debe aceptar cualquier interferencia
recibida,
incluidas las interferencias que puedan causar un
funcionamiento indeseado.
Ÿ Consulte con el distribuidor o con un técnico de radio/TV
experimentado para obtener ayuda.
Declaración de advertencia de radiofrecuencia:
El dispositivo se puede utilizar en condiciones de
exposición portátil sin restricciones.
El dispositivo ha sido evaluado para cumplir con el
requisito general de exposición a radiofrecuencia.
Ÿ Conectar el equipo a una toma de corriente en un circuito
diferente al que está conectado el receptor
.
Este dispositivo cumple con la Parte 15 de las Reglas de la
FCC. El correcto funcionamiento depende de las siguientes
dos condiciones:
Ÿ Aumentar la separación entre el equipo y el receptor.
Mantenimiento de la capacidad de la pila
1. Cargar las pilas de NiMH una vez cada 3 meses cuando no se
usen.
Uso del cargador Micro USB
El cargador Micro USB es un puerto práctico que le permite
cargar cómodamente sus pilas NiMH, Use adaptador
certificado(5V, ≥1A). No intente cargar pilas alcalinas.
1. Asegurarse de que su radio esté apagada.
2. Antes de guardar la radio, retirar la batería.
3.
Guardar las pilas de NiMH a una temperatura de entre -20 °C y
35 °C y con poca humedad. Evitar condiciones de humedad y
materiales corrosivos.
2. Enchufar el cable Micro USB en el puerto de carga Micro USB
de su radio. Conectar el otro extremo del cargador Micro USB
al enchufe de la pared.
3. El medidor de la batería en la pantalla LCD se moverá para
indicar que la batería se está cargando.
Note: RF exposure decreases with increasing distance from the
antenna.
Ÿ Body Worn Operation. When worn on the body, always place
the radio in a approved clip for this product.
Medidor de batería de radio
3. Poner las tres pilas AA NiMH con polaridad + y – como se
muestra en el interior.
Instalación de la batería recargable NiMH de tres AA
1. Retirar el broche.
2. Con la parte posterior de la radio hacia usted, levantar la tapa
que cubre la batería y retirarla.
El número de barras ( ) en el icono que se muestra de la
batería de la radio indica la carga restante en la batería. Cuando
el medidor de batería de radio muestra un segmento, la radio
emite sonidos de manera regular (Alerta de batería baja). Cuando
la batería está baja, la radio
emitirá un sonido de alerta cada 10
minutos o después de soltar el botón PTT.
4. Cerrar la tapa de la batería firmemente.
1. Apagar la radio.
Extracción de las tres pilas recargables de NiMH AA
2. Con la parte posterior de la radio hacia usted, levantar la tapa que
cubre la batería y retirarla.
3. Retirar cada una de las tres pilas baterías recargables de NiMH
AA tirando de la cinta adjunta.
4. Cerrar la tapa de la batería firmemente.
Nota: Retirar la batería de la radio para guardarla.
CÓMO EMPEZAR
The device has been evaluated to meet general RF exposure
requirement.
(2) this device must accept any interference received, including
interference that may cause undesired operation.
(1) this device may not cause harmful interference, and
The device can be used in portable exposure condition
without restriction.
subject to the following two conditions:
RF warning statement:
Note: Remove the battery from radio for storage purposes.
Removing the Three AA NiMH Rechargeable Battery
1. Turn the radio off.
4. Close the battery cover firmly.
2. With the back of the radio facing you, lift the battery cover
latch up and remove the cover.
3. Remove each of the three AA NiMH rechargeable battery by
pulling the ribbon attached to the radio.
your radio. Connect the other end of the micro-USB charger to
wall power outlet.
3. The battery meter on LCD will move to indicate the battery is
charging.
Note:
Ÿ Se recomienda APAGAR la radio mientras se está cargando.
Ÿ Al moverse entre temperaturas altas y bajas, no cargar las
baterías de NiMH hasta que la temperatura de la batería se
aclimate (por lo general, alrededor de 20 minutos).
HABLAR Y ESCUCHAR
1. Para hablar, pulsar el botón PTT. Al transmitir, se muestra el
icono .
2. Cuando haya terminado de hablar, soltar el botón PTT.
Para comunicarse, todas las radios de su grupo deben
configurarse en el mismo canal y código de eliminador de
interferencias.
menos una pulgada (2,5 centímetros) de la nariz o los labios.
Para garantizar el cumplimiento es importante mantener la
radio a una distancia adecuada.
Model: G600
Ver.01 Rev.**/**/**
Modelo: G600
Ver.01 Rev.**/**/**
WEATHER CHANNELS AND FREQUENCIES
Weather Channel
Frequency
W
To Next Page
Loading...
