Godex RT730i User Manual

Appendix
BT2.4G Module
RT700i/RT730i USER MANUAL
APPENDIX
BT2.4G Module

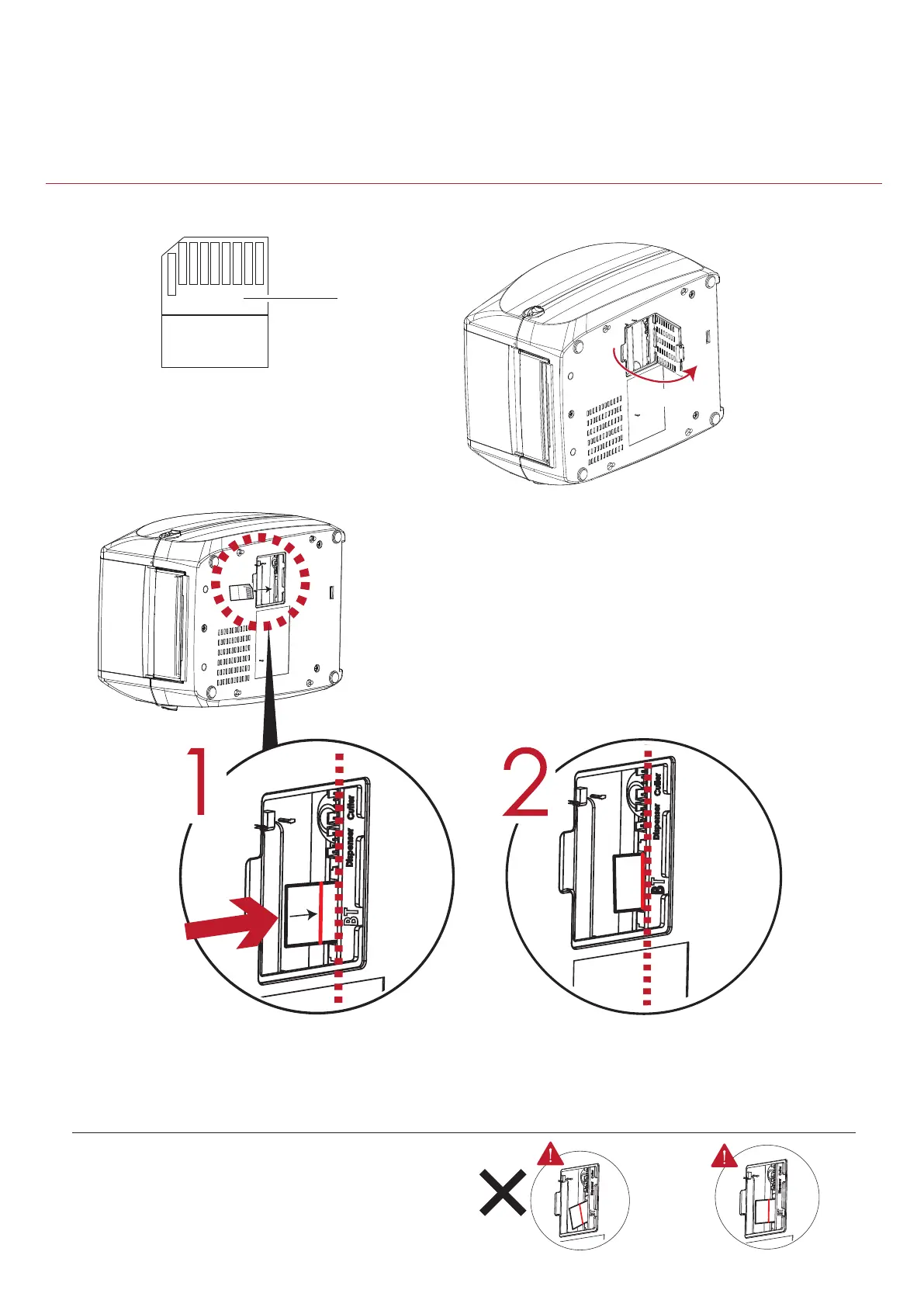

Getting Started
Open the bottom base cover
open
Install BT2.4G Module
Follow below step to insert BT2.4G Module
into the slot.
Follow the indicator to insert the module.
BT
rettuC
r
e
sne
psiD
BT
rettuC
resnepsiD
BT
rettuC
resnepsiD
Push the module to the end of the slot.
The Installation Line on BT2.4G Module
must right along with the edge of mainboard.
Otherwise, it might cause signal error.
**** Please prevent below incorrect installation.
* User have to turn off the machine that
can insert BT2.4G module.
BT
rettuC
resnepsiD
BT
rettuC
resnepsiD
Does not parallel with mainboard.
Does not push till the end of slot.
Notice

Godex RT730i Specifications

General

Print technology	Direct thermal / Thermal transfer
Maximum resolution	300 x 300 DPI
Maximum print height	762 mm
Maximum printing width	105.7 mm
Display	LCD
Product color	Black
Wi-Fi	No
Ethernet LAN	Yes
USB 2.0 ports quantity	1
Connectivity technology	Wired
Flash memory	8 MB
Certification	CE (EMC), FCC Class A, CB, CCC, cUL
Internal memory	16 MB
Built-in barcodes	1D, 2D, Code 128 (A/B/C), Code 39, Code 93, EAN128, EAN13, EAN8, MaxiCode, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Windows code pages supported	1250, 1251, 1252, 1253, 1254, 1255, 1257
Ribbon width	110 mm
Core diameter	25.4 mm
Ribbon length	300 m
Media thickness	0.06 - 0.2 mm
Maximum roll diameter	127 mm
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	30 - 85 %
Power requirements	100-240V, 50-60Hz
Compatible operating systems	Windows 2000, XP, Vista, 7, Windows Server 2003, 2008

Weight and Dimensions

Depth	280 mm
Width	210 mm
Height	186 mm
Weight	3000 g
