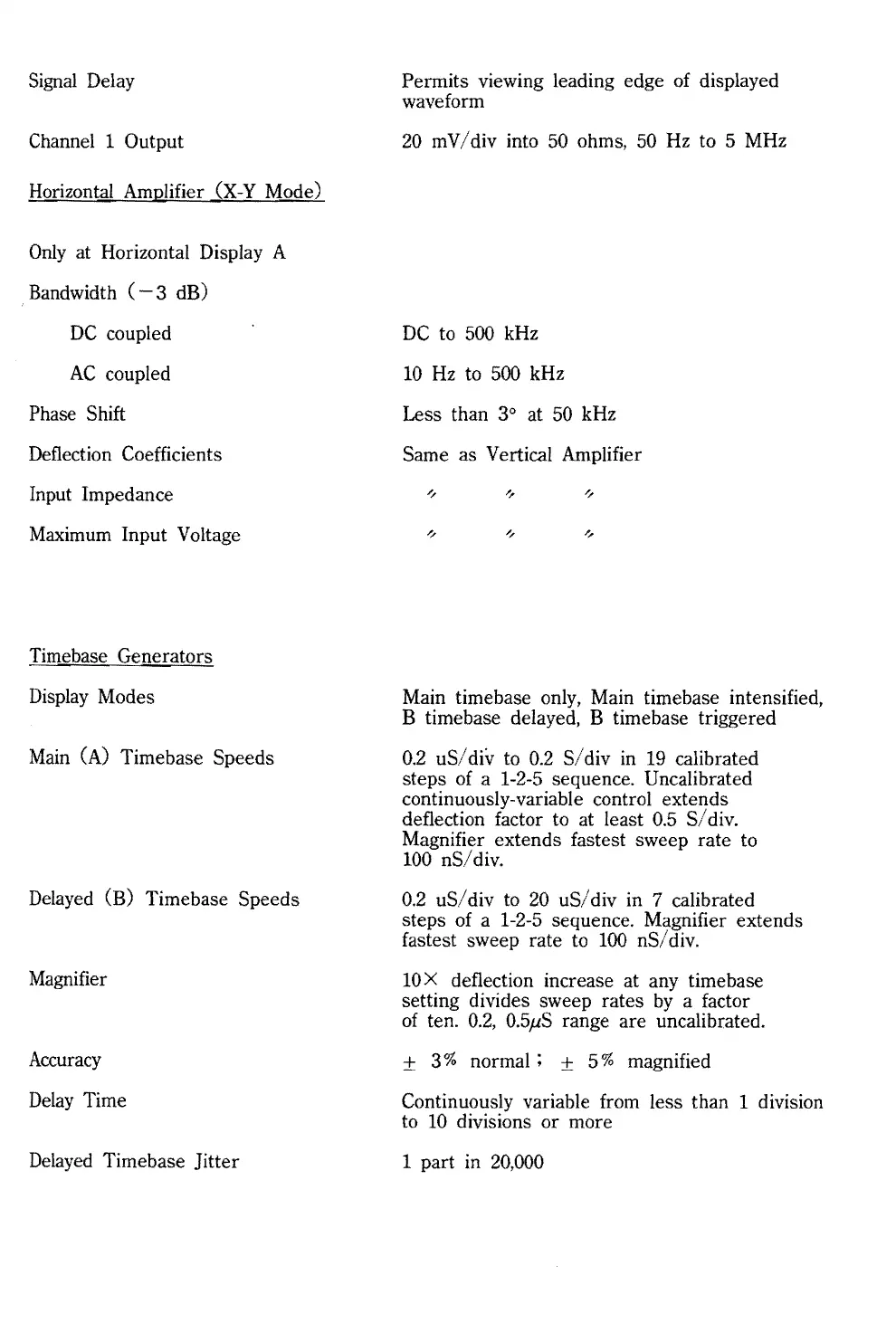

~n-
Signal
Delay
Channel 1 Output
Horizontal Amplifier
(X-Y
Mode)
Only
at Horizontal Display A
Bandwidth
(-
3 dB)
DC
coupled
AC
coupled
Phase Shift
Deflection Coefficients
Input Impedance
Maximum Input Voltage
Timebase Generators
Display
Modes
Main
(A) Timebase Speeds
Delayed (B) Timebase Speeds
Magnifier
Accuracy
Delay
Time
Delayed
Timebase Jitter
Permits viewing leading edge of displayed
waveform
20 m V / div into 50 ohms, 50
Hz
to 5 MHz
DC
to
500
kHz
10
Hz
to
500
kHz
Less than 3° at
50 kHz
Same as Vertical Amplifier
Main timebase only, Main timebase intensified,
B timebase delayed, B timebase triggered
0.2
uS/
div to 0.2
S/
div in
19
calibrated
steps
of
a 1-2-5 sequence. Uncalibrated
continuously-variable control extends
deflection factor to at least
0.5
S/
div.
Magnifier extends fastest sweep rate to
100
nS/div.
0.2
uS/
div
to
20
uS/
div in 7 calibrated
steps of a
1-2-5 sequence. Magnifier extends
fastest sweep rate to
100
nSf div.
10 X deflection increase at any time base
setting divides sweep rates
by
a factor
of
ten. 0.2, 0.5;B range are uncalibrated.
± 3%
normal;
± 5% magnified
Continuously variable from less than 1 division
to
10 divisions or more
1 part in
20,000
