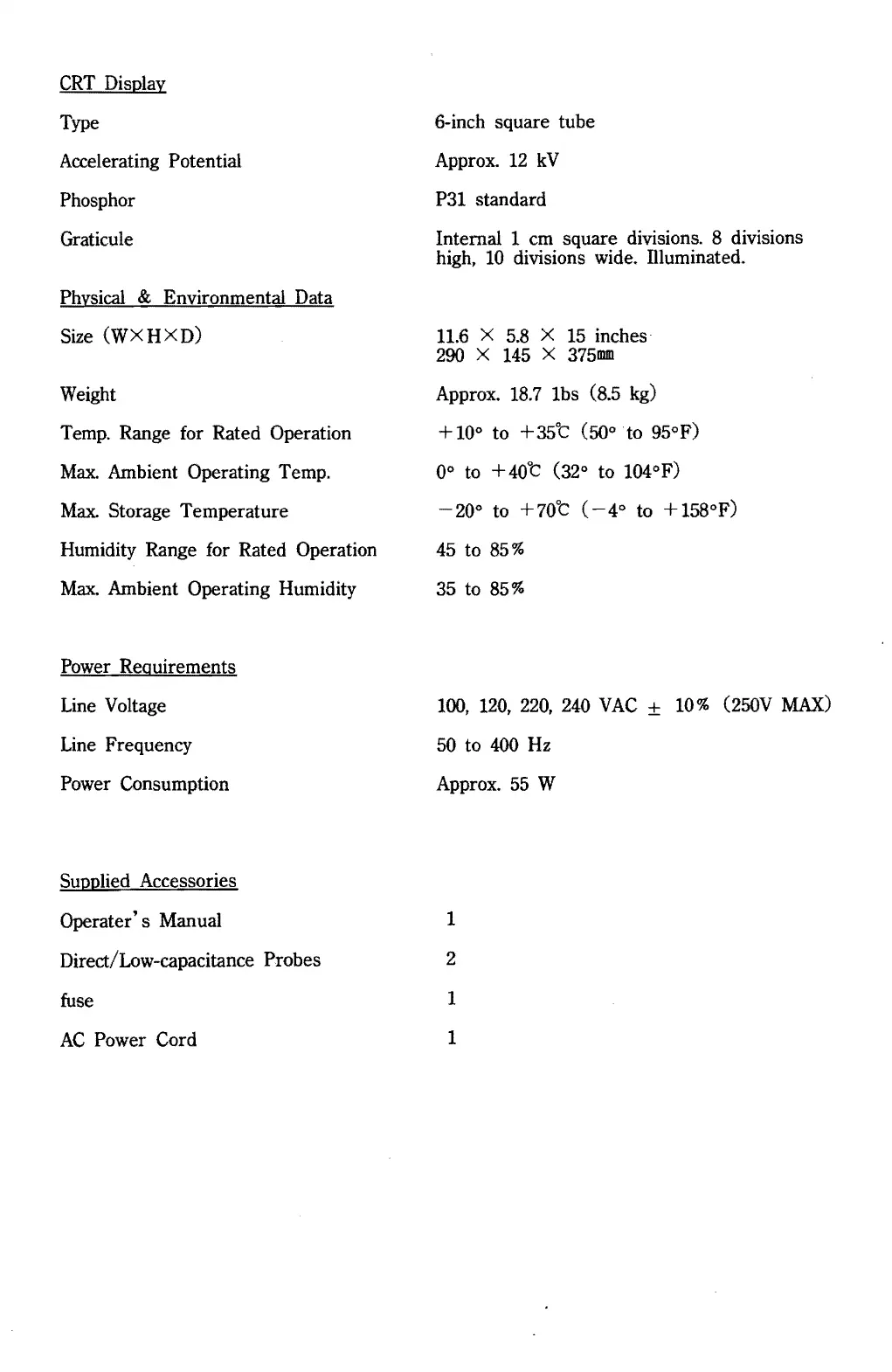

Goldstar 7040A - Page 4

CRT Display
Type
Accelerating Potential
Phosphor
Graticule
Physical
& Environmental Data
Size (WXHXD)
Weight
Temp. Range for Rated Operation
Max. Ambient Operating Temp.
Max. Storage Temperature
Humidity Range for Rated Operation
Max. Ambient Operating Humidity
Power Requirements
Line Voltage
Line Frequency
Power Consumption
Supplied Accessories
Operater's Manual
Direct/Low-capacitance Probes
fuse
AC Power Cord
•
6-inch square tube
Approx.
12 kV
P31 standard
Internal 1
cm square divisions. 8 divisions
high,
10 divisions wide. Illuminated.
11.6 X 5.8 X 15 inches·
290 X 145 X 375mm
Approx. 18.7 1bs (8.5 kg)
+10° to +35't (50° to 95°F)
0° to
+40't (32° to 104°F)
-20° to +70't (-4° to +158°F)
45 to 85%
35 to 85%
100, 120, 220, 240 VAC ± 10% (25OV MAX)
50 to 400 Hz
Approx. 55 W
1
2
1
1
1
