goliath BASIC LINE - Page 60

A maximum of 14 addresses for door stations can be assigned via the
DIP switches.
be set

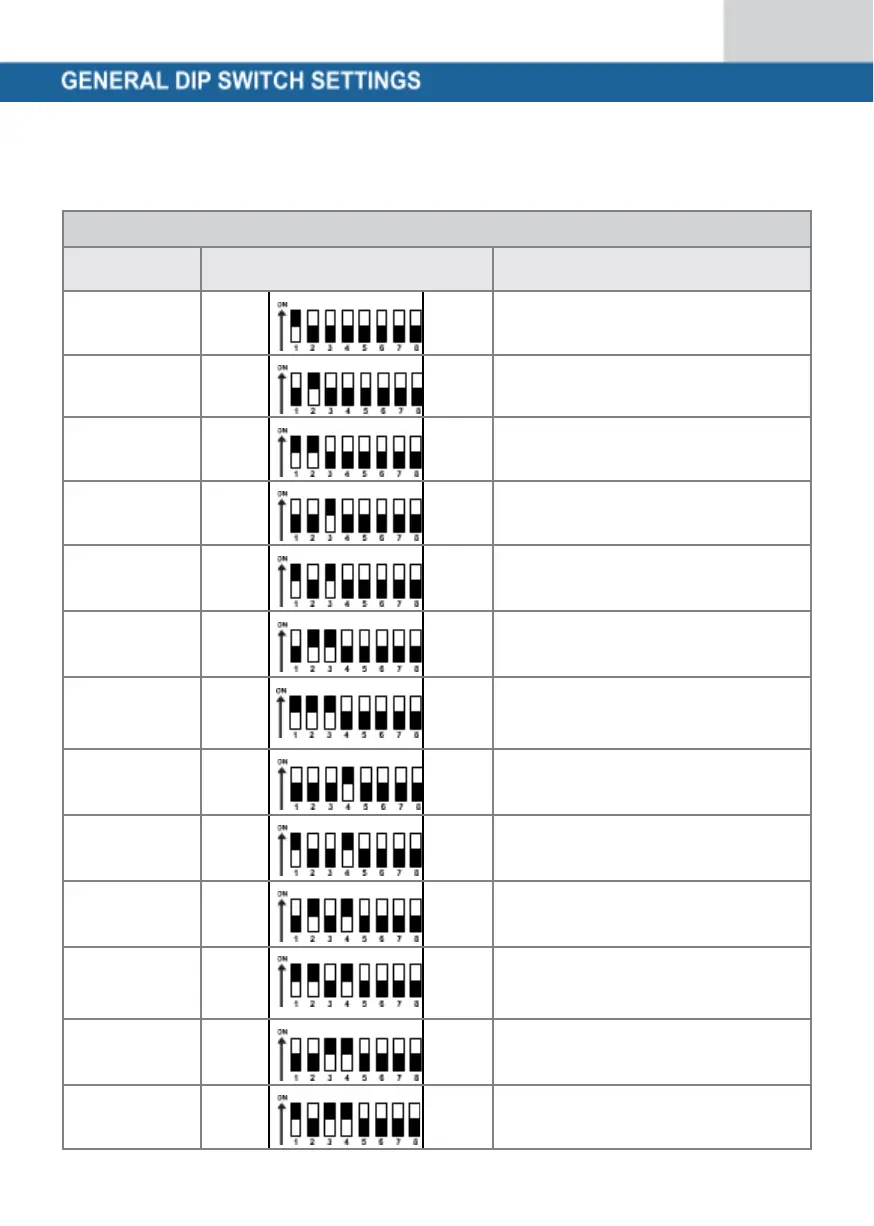

Door station addresses
Door station
Address
DIP switch position
Rule
1
DIP 1 ON
2
DIP 2 ON
3
DIP 1 ON + DIP 2 ON
4
DIP 3 ON
5
DIP 1 ON + DIP 3 ON
6
DIP 2 ON + DIP 3 ON
7
DIP 1 ON + DIP 2 ON + DIP 3
ON
8
DIP 4 ON
9
DIP 1 ON + DIP 4 ON
10
DIP 2 ON + DIP 4 ON
11
DIP 1 ON + DIP 2 ON + DIP 4
ON
12
DIP 3 ON + DIP 4 ON
13
DIP 1 ON + DIP 3 ON + DIP 4
