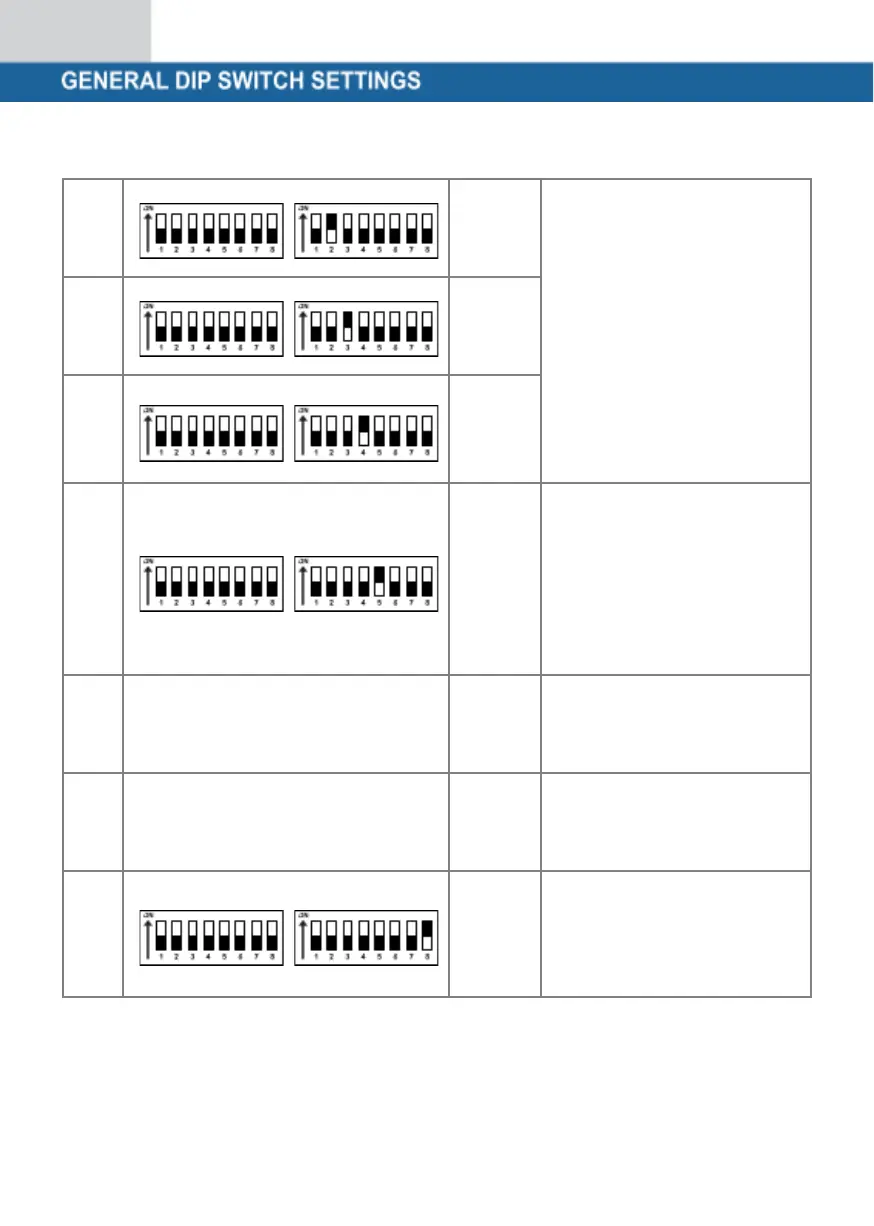

goliath BASIC LINE - Page 63

10
512
• DIP 1 to DIP 12 are
used to set the indoor
station addresses
• A maximum of 4094
different addresses
can be set
• In the following
table you will find
the most
important
Indoor station addresses
11
1024
12
2048
13
-
DIP 13 to ON if an HDCVI
camera is connected via a
UTP cable.
Set the DIP switch to OFF if
the camera is connected via
a coaxial cable
14
Not used
-
Not used
15
Not used
-
Not used
16
-
DIP 16 to ON when
the VTH is an
extension. DIP switch to
OFF if it is the main
VTH
