goliath BASIC LINE - Page 9

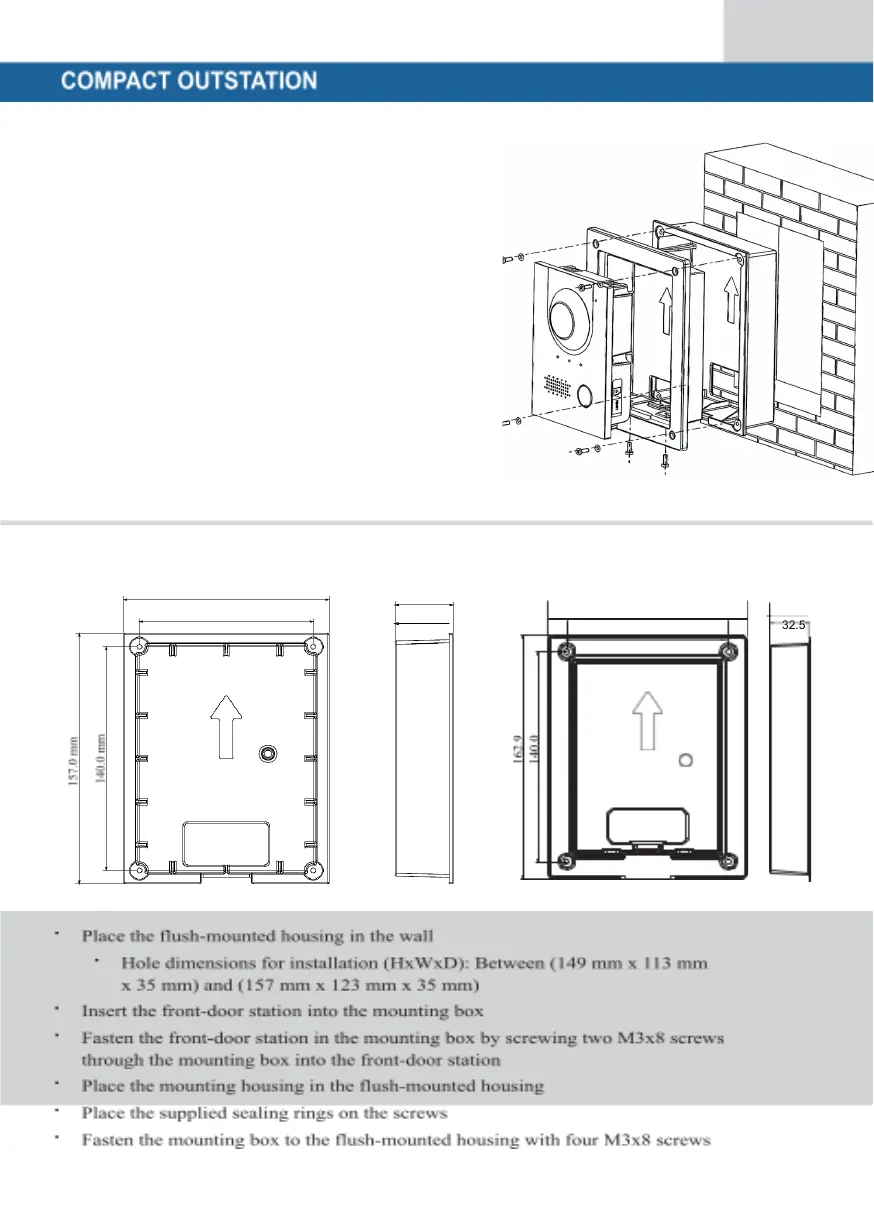

Flush-mounted housing
installation
Installation recommendation
The recommended installation height of
the outdoor station is 1.50 - 1.60 metres.
The height of the lens is important here.
123.0 mm
35.0 mm
123.0
35.0
104.0 mm
32.5 mm
104.0
32.5
