MOUNTING CONFIGURATIONS
*
( )
*
( )
For more information, see the TCODE/CA NEXA user manual (code 50123681)
https://doc.golmar.es/search/manual/50123681
SAFETY PRECAUTIONS
-Always disconnectthepowersupply before installing or making modifications tothe devices.
-The fitting and handling ofthese devices mustbe carried out by .authorizedpersonnel
- The wiring must run at least .40 cm away from any other wiring
- On the power supply unit:
wDo not overtighten the screws on the connector.
wInstall the power supply unit in a dry and protected place free from the risk of water leaks or sprays.
wAvoid locations that are humid, dusty or near heat sources.
wEnsure that the air vents are free from obstruction so that air can circulate freely.
wTo avoid damage, the power supply unit must be firmly secured in place.
wTo prevent electric shock, do not remove the cover or handle the wiring connected to the terminals.
- Coded module and access control.
- Can be combined with “Nexa Modular” and “Inox Modular” door panels.
- Configuration programmable using a numeric keypad, PC or tablet.
- Residents list with up to 1,990 contacts depending on setup.
-Status LEDs and tones.
CHARACTERISTICS
*
( )

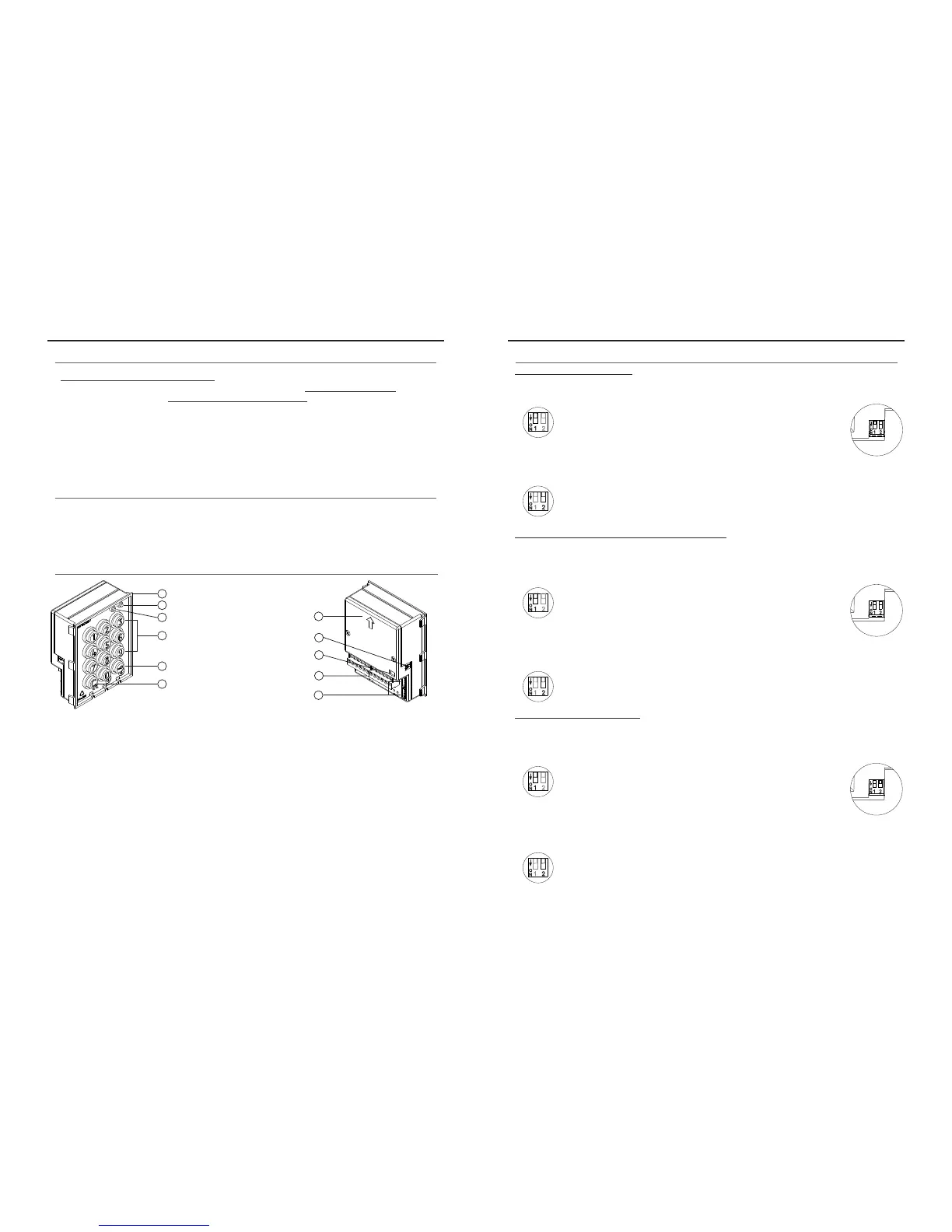

MODULE DESCRIPTION
*
( )
a
b
c
d
e
f
g
h
i
j
k
a. Front
b.
Green LED
c. Red LED
d. Numeric keypad
e. Key button
f. Cancel button
g. Back
h. SW1 DIP switch
i. JP1 tamper jumper
j. Connection block
k. Nexa Bus connectors
: Power input (Do not use when connecting the Nexa Bus link hose)
: Normally open output relay 1.
Common relay 1.
: Normally closed output relay 1.
: Normally open output relay 2.
: Common relay 2.
: Normally closed output relay 2.
: Panic output.
: Negative.
: Input for exterior button relay 1.
: Input for exterior button relay 2.
~ ~
NA1
C1
NC1
NA2
C2
NC2
P
-
PL1
PL2
Standalone access control:
The standalone access control enables access to the building by entering a numeric code using
the N3301 module.
Access control combined with Nexa door panels:
Configuring access control with call buttons enables users to make calls to apartments using
the call buttons and to gain access to the building by entering a numeric code into the N3301
module.
Coded panel without display:
The coded door panel enables calls to be made to apartments by entering the monitor code
and access to be gained to the building by entering a numeric code into the N3301 module.
Use to reset the special installer PIN to the factory code.
Proceed as follows: Set DIP switch 1 to ON. The module will emit 2 beeps
and the green LED on the front will light up for 1 second. Then set the DIP
switch to OFF (the code is now the one assigned at the factory). If the
access control module was locked during this process, the special unlock
PIN will also be reset to the factory code.
Set DIP switch 2 to OFF to configure the door panel as a standalone module.
Use to reset the special installer PIN to the factory code.
Proceed as follows: Set DIP switch 1 to ON. The module will emit 2 beeps
and the green LED on the front will light up for 1 second. Then set the DIP
switch to OFF (the code is now the one assigned at the factory). If the
access control module was locked during this process, the special unlock
PIN will also be reset to the factory code.
Set DIP switch 2 to OFF to configure the door panel as a standalone module.
Use to reset the special installer PIN to the factory code.
Proceed as follows: Set DIP switch 1 to ON. The module will emit 2 beeps
and the green LED on the front will light up for 1 second. Then set the DIP
switch to OFF (the code is now the one assigned at the factory). If the
access control module was locked during this process, the special unlock
PIN will also be reset to the factory code.
Set DIP switch 2 to ON to configure the door panel as a coded door panel.
