Goobay MS-506PQ-N User Manual

6
67265 SAT Multiswitch 9/06 MS-906PQ-N
67266 SAT Multiswitch 9/08 MS-908PQ-N
67267 SAT Multiswitch 9/12 MS-912PQ-N
67268 SAT Multiswitch 9/16 MS-916PQ-N
4 Connecting and Operating
4.1 Connecting
Satellite dish-LNBs - Inputs
Ground
Receiver - Outputs
1. Connect the device to ground.
2. Connect the input devices
(LNBs).
3. Connect the output devices
(Receivers).
4. Connect the device to mains.

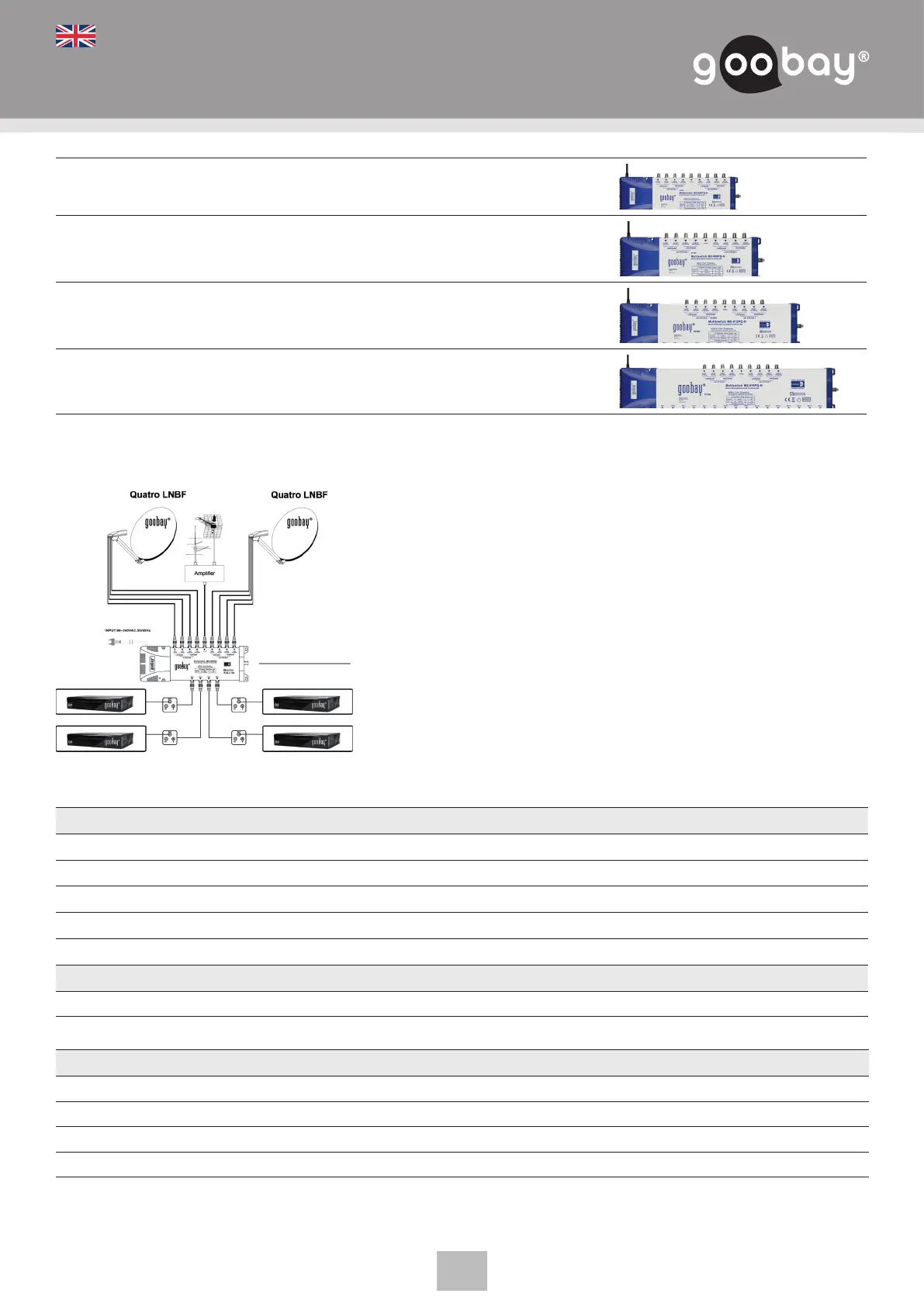

Connection drawing
4.2 Mapping of possible connection descriptions
Inputs Description Band
LNB-D = High/H (18/22 kHz) Horizontal High Band
LNB-C = High/V (13/22 kHz) Vertical High Band
LNB-B = Low/H (18 V / 0 Hz) Horizontal Low Band
LNB-A = Low/V (13 V / 0 Hz) Vertical Low Band
TERR. = terrestrical antenna
Inputs Description
REC 1–X = Outputs to Receivers
4.3 Connection diagram
Polarity Band Short cut Voltage
horizontal Polarity High Band H / H 18V + 22kHz
horizontal Polarity Low Band H / L 18V + 0kHz
vertical Polarity High Band V / H 14V + 22kHz
vertical Polarity Low Band V / L 14V + 0kHz
EN
USER‘S MANUAL FOR SAT MULTISWITCHES
MS-506PQ-N/508PQ-N/512PQ-N/516PQ-N AND
MS-904PQ-N/906PQ-N/908PQ-N/912PQ-N/916PQ-N

Goobay MS-506PQ-N Specifications

General

Brand	Goobay
Model	MS-506PQ-N
Category	Switch
Language	English
