Goodman ARUF - ARPF Model Dimensions

PRODUCT DIMENSIONS
15
ARPF
Model A B C D E F G
H
IJ
ARPF18241* 42 1/8" 22" 13 1/2" 15 1/2" 10" 14 1/2" 11 15/16" 13 1/8" 17 15/16" 2"
ARPF19311* 46 3/4" 22" 17 1/2" 19 1/2" 10" 14 1/2" 11 15/16" 17 1/8" 17 15/16" 2"
ARPF30301* 46 3/4" 22" 17 1/2" 19 1/2" 10" 14 1/2" 11 15/16" 17 1/8" 17 15/16" 2"
ARPF36361* 46 3/4" 22" 17 1/2" 19 1/2" 10" 14 1/2" 11 15/16" 17 1/8" 17 15/16" 2"
ARPF36421* 53 1/4" 24" 20" 22" 12" 14 1/2" 11 15/16"
19 5/8"
19 15/16" 1 13/16"
ARPF37431* 53 1/4" 24" 20" 22" 12" 14 1/2" 11 15/16"
19 5/8"
19 15/16" 1 13/16"
ARPF48601* 53 1/4" 24" 20" 22" 12" 14 1/2" 11 15/16"
19 5/8"
19 15/16" 1 13/16"
ARPF49611* 53 1/4" 24" 20" 22" 12" 14 1/2" 11 15/16"
19 5/8"
19 15/16" 1 13/16"
A
B
E
SUCTION
LINE
LIQUID
LINE
INLET
TUBE
I
INLET

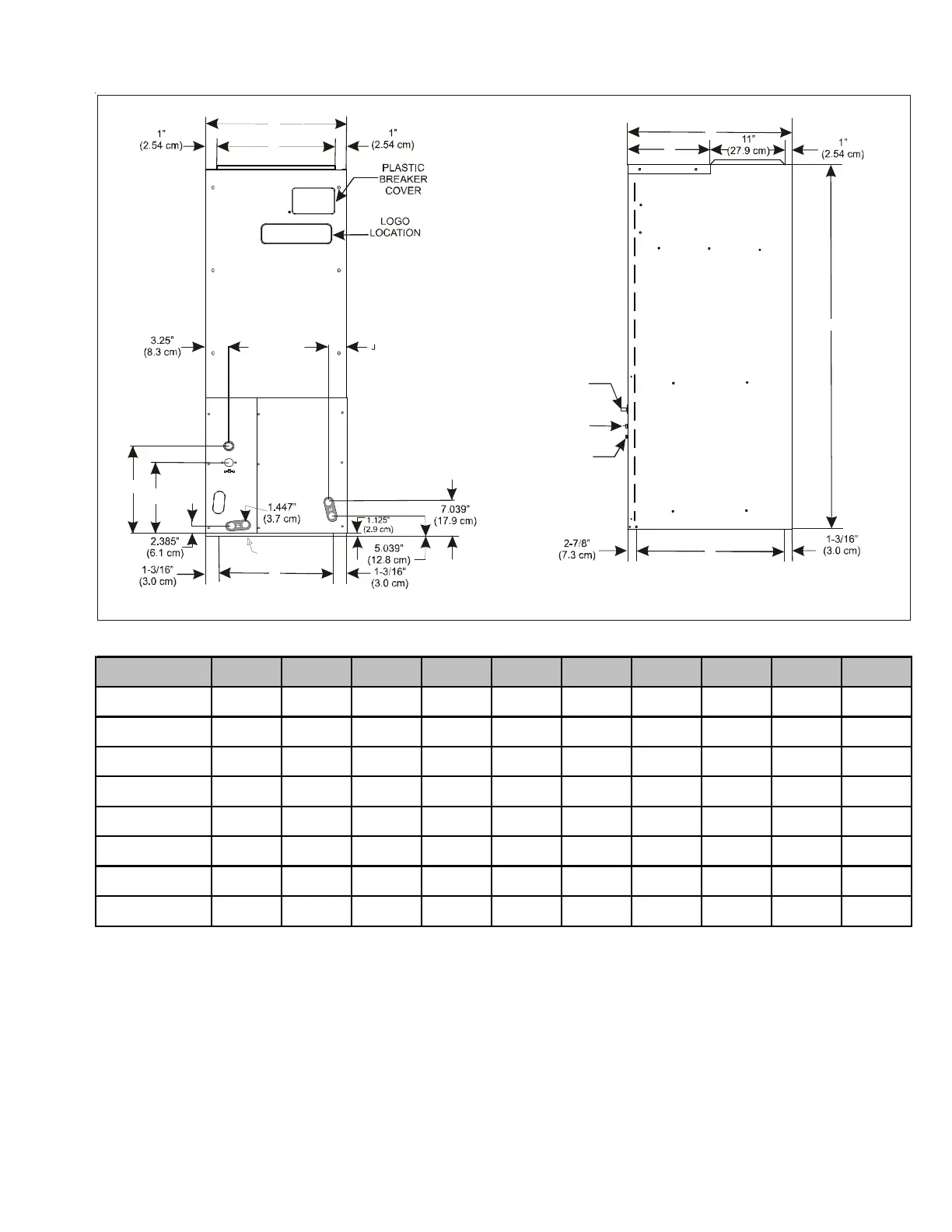

(RIGHT SIDE VIEW)
H
INLET
(FRONT VIEW)
D
C
F
G
