This manual, designated RP-431G and replacing RP-431F, provides repair parts information for GSC13 Remote Condensing Units. It is intended for use by qualified technicians only, emphasizing that warranty service must be performed by authorized technicians using authorized factory parts. Goodman Manufacturing Company, L.P. disclaims responsibility for personal injury or property damage resulting from improper service and reserves the right to change specifications or designs without notice.

The manual is structured with an index that points to a functional parts list and detailed illustrations and parts breakdowns. The illustrations are for parts identification only and are not intended as servicing procedures.

Functional Description:

The GSC13 Remote Condensing Units are outdoor components of an HVAC system, designed to condense refrigerant and dissipate heat to the ambient air. These units are available in various models, each identified by a unique alphanumeric code (e.g., GSC130181AB, GSC130361BB, GSC130604AC). The core function involves a compressor, a condenser coil, and a fan, all working in conjunction with an indoor evaporator coil to provide cooling.

Important Technical Specifications:

Capacitors:

The units utilize various capacitors for motor starting and running, with specifications including:

CAP050350440RSS: 5/35/440V, found in models M1, M2, M3, M6, M7, M8, M9, M10.
CAP050000370VAS: 5/370V, for models M11, M12, M16, M17, M18, M21, M22, M23, M24.
CAP050400370RSS: 5/40/370V, used in model M4.
CAP050450370RSS: 5/45/370V, used in model M5.
CAP050500440RTS: 5/50/440V, for model M13.
CAP050550440RTS: 5/55/440V, for models M14, M15.
CAP050800440RTS: 5/80/440V, for models M19, M20.

Compressors:

A variety of compressors are specified, differing in capacity, voltage, phase, and manufacturer:

CR14K7PFV970: 14100 capacity, 208/230/60/1, for model M1.
ZR16K4PFV930: 16500 capacity, 208/230/60/1, for model M2 (note: this model had a compressor change from ZR16K4PFV930 to H21J383ABCAS as of 08/19/09).
CR18K7PFV930: 17500 capacity, 208/230/60/1, for model M3.
CR23K7PFV930: 22600 capacity, 208/230/60/1, for model M4.
CR28K7TF5970: 28000 capacity, 200/230/60/3, for models M11, M12.
CR28K7PFV930: 28300 capacity, 208/230/60/1, for models M6, M7.
ZR30K3PFV930: 31100 capacity, 208/230/60/1, for model M5.
ZR34K3PFV930: 34400 capacity, 208/230/60/1, for model M13.
ZR40K3PFV930: 40600 capacity, 208/230/60/1, for models M14, M15.
ZR40K3TF5930: 40600 capacity, 208/230/60/3, for models M16, M17.
ZR40K3TFD930: 40600 capacity, 460/60/3, for model M18.
ZR52K3PFV930: 52000 capacity, 208/230/60/1, for models M19, M20.
ZR54K3TF5930: 54200 capacity, 200/230/60/3, for models M21, M22.
ZR54K3TFD930: 54500 capacity, 460/60/3, for models M23, M24.
H20J293ABCAS: BRISTOL compressor, used in models M8, M9, M10.

Condenser Motors:

The units employ various condenser fan motors:

0131M00018PS: 1/4 HP, 1 SP, 6 PL, for model M13.
0131M00007PS: 1/4 HP, 1 SP, 6 PL, for models M5, M11, M14, M16.
0131M00014PS: 1/4 HP, 1 SP, 8 PL, for models M15, M17.
0131M00022S: 1/4 HP, 8 PL, 460V, for model M18.
0131M00012PS: 1/6 HP, 1 SP, 8 PL, for models M19, M20, M21, M22.
0131M00060S: 1/6 HP, 1 SP, 8 PL, for models M1, M2, M3, M4, M6, M7, M8, M9, M10, M12.
0131M00023S: 1/6 HP, 8 PL, 460V, for models M23, M24.

Contactors:

Different contactors are used based on the unit's electrical requirements:

CONT2P025024VS: 25 AMP, 2P, 24V, for models M1, M2, M3, M4, M5, M6, M7, M8, M9, M10, M13.
CONT3P025024VS: 25 AMP, 3P, 24V, for models M11, M12, M16, M17, M18, M21, M22, M23, M24.
CONT2P030024VS: 30 AMP, 2P, 24V, for models M14, M15.
CONT2P040024VS: 40 AMP, 2P, 24V, for models M19, M20.

Usage Features:

The GSC13 units are designed for remote condensing applications, implying they are installed outdoors and connected to an indoor evaporator unit. The various models cater to different cooling capacities and electrical supply requirements (single-phase vs. three-phase, different voltages). The "Expanded Model Nomenclature" section helps technicians quickly identify the specific components applicable to each unit model.

Maintenance Features:

The manual provides a detailed breakdown of parts, which is crucial for maintenance and repair. Key components for maintenance include:

Access Panels: Lower access panels (e.g., 4400200PDG, 0121R00094PDG) allow technicians to reach internal components for inspection and service.
Control Cover: The control cover (0121R00053PDG) protects the electrical control box.
Service Valves: 3/8" and 3/4" service valves (B12825171, 0151R00002P, 0151R00003P) are provided for refrigerant charging, recovery, and system isolation.
Filter Driers: Single-flow filter driers (B1219212, B1219225) are integral for removing moisture and contaminants from the refrigerant circuit, protecting the compressor and expansion device.
Compressor Grommets: Grommets (B1339530, B1339533, 0164M00000P) are used to isolate compressor vibration and reduce noise.
Flow Check Pistons: Various flow check piston kits (e.g., B1789855, B1789874) are specified, likely for optimizing refrigerant flow in different operating conditions or system configurations.
Condenser Coils and Tubing: The manual lists various tubing assemblies for condenser coils (e.g., 0201R00177S, 1362100-1362106), indicating that these are replaceable components if damaged or leaking.
Louvered Side Panels: These panels (e.g., 0121R00014PDGB, 0121R00025PDGB) protect the condenser coil while allowing airflow.
Venturi Rings: Venturi rings (0161L00000, 0161R00007P) are used to optimize airflow through the fan, improving efficiency and reducing noise.

The "Text Codes" section clarifies the meaning of abbreviations used in the parts list, such as AR (As Required), NA (Not Available), NS (Not Shown), QTY (Quantity), and M (Model), which are essential for accurate parts ordering and maintenance. The contact information for Goodman Manufacturing Company, L.P. (Consumer Affairs Department and International Division) is provided for further assistance.

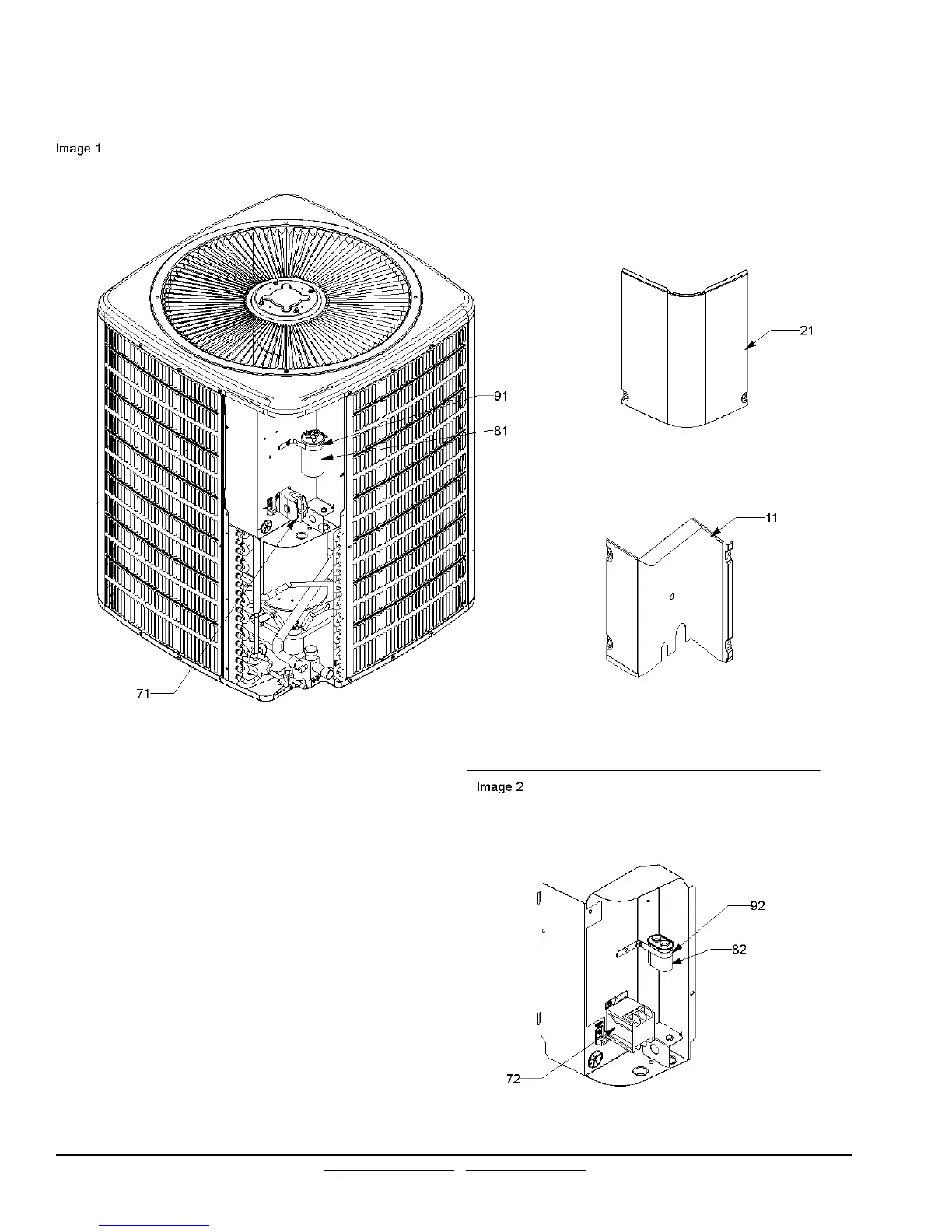

Goodman REMOTE CONDENSING UNITS GSC13 - Control Cover;Control Box
