8 System Commissioning
8.1 Indicators
8.2 Setting Inverter Parameters via LCD
NOTICE
• Inverter software version shown in this document is V1.01.01.01. The screen shots are for
reference only. The actual display may dier.
• The name, range, and default value of the parameters is subject to change or adjust. The
actual display prevails.
• The power parameters should be set by professionals to prevent the generating capacity
from being inuenced by wrong parameters.

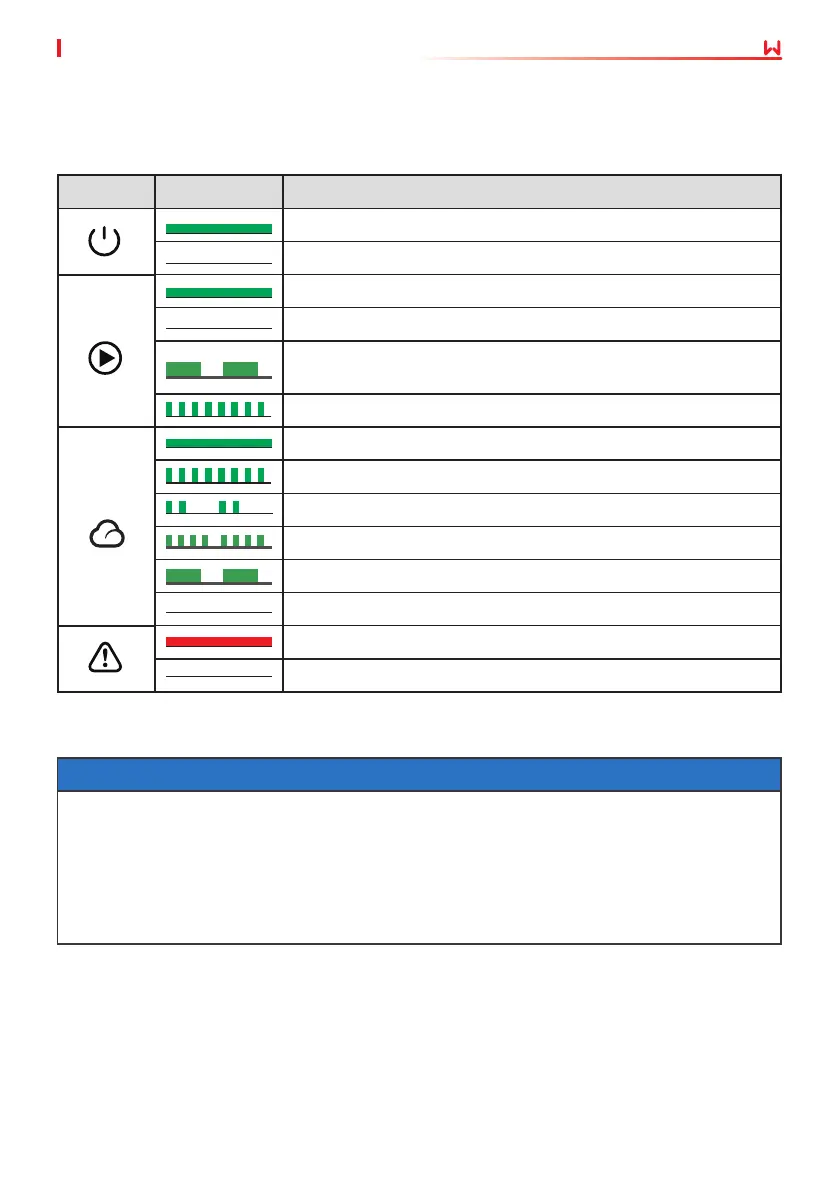

Indicator Status Description
ON = EQUIPMENT POWER ON
OFF = EQUIPMENT POWER OFF
ON = THE INVERTER IS FEEDING POWER
OFF = THE INVERTER IS NOT FEEDING POWER
SINGLE SLOW FLASH = SELF CHECK BEFORE CONNECTING TO
THE GRID
SINGLE FLASH = CONNECTING TO THE GRID
ON = WIRELESS IS CONNECTED/ACTIVE
BLINK 1 = WIRELESS SYSTEM IS RESETTING
BLINK 2 = WIRELESS ROUTER NOT CONNECTED
BLINK 4 = WIRELESS SERVER PROBLEM
BLINK = RS485 IS CONNECTED
OFF = WIRELESS IS NOT ACTIVE
ON = A FAULT HAS OCCURRED
OFF = NO FAULT
