4.
Operating
elements
How it works

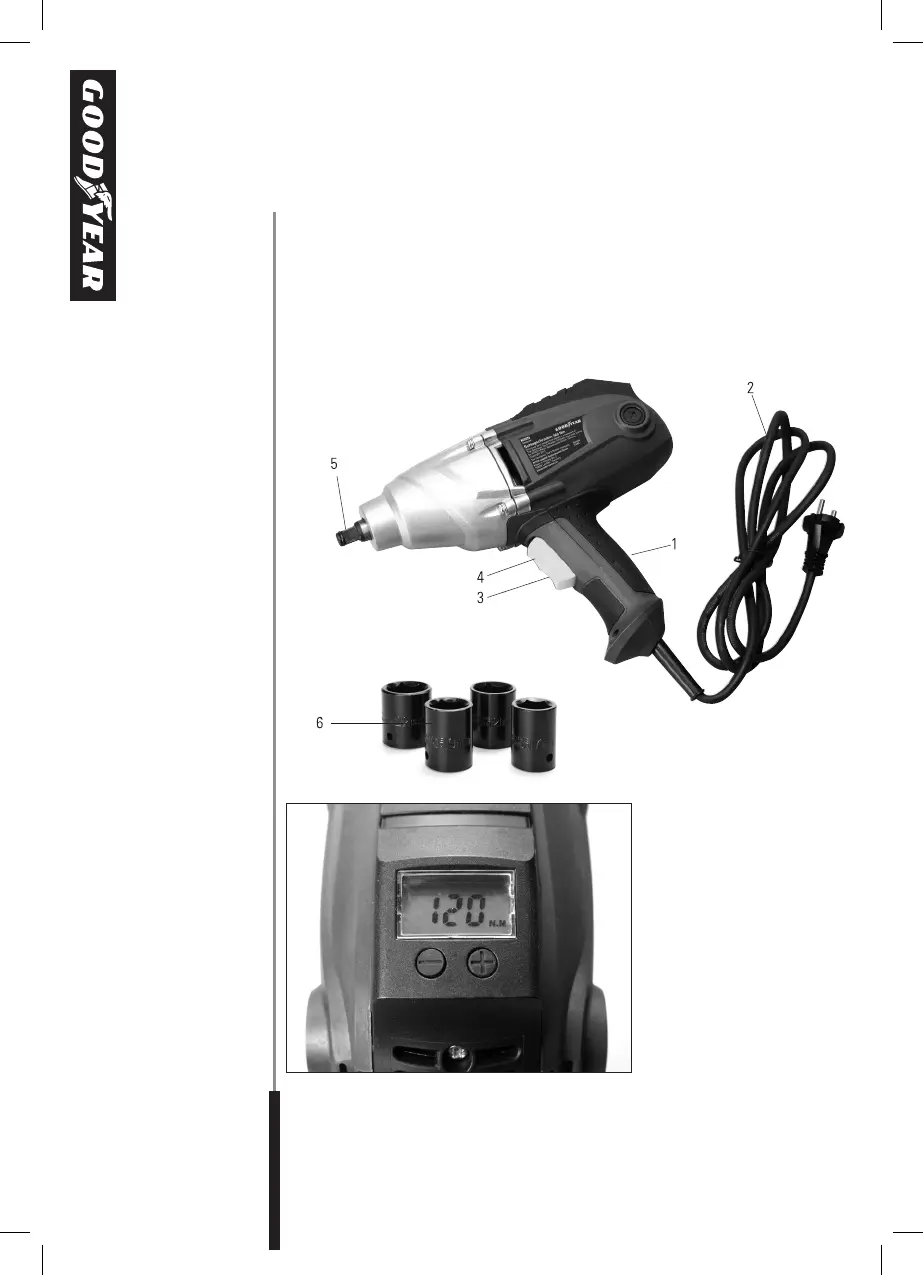

1. Handle
2. Mains cable with mains plug
3. Rocker switch, rotation to the right (F)
4. Rocker switch, rotation to the left (R)
5. Socket spanner holder
6. Socket spanner attachments (accessories)
7. Carry case (not shown)
Setting the tightening
torque.
The tightening torque is
adjustable within a range
between 100 Nm and
350 Nm in steps of 10. If
you press the - / + buttons
you can set the tightening
torque to the desired
level. The current torque is
shown on the large display
located above.
This impact wrench is
suitable for tightening and loosening bolts, screws and nuts. Do not use it for any
other purposes. Incorrect use of this tool may cause personal injury or damage to
property.
22 mm
21 mm
19 mm
17 mm
