Google Nest Protect User Guide

2
2
1
1

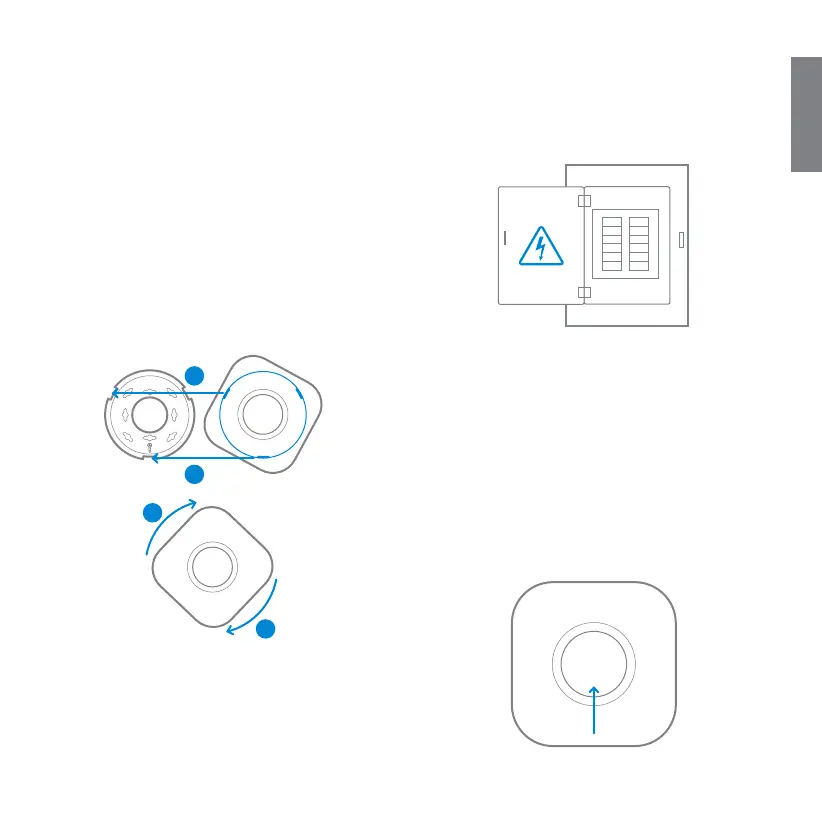

Breaker box
15
English
13. Switch power back on or replace the fuse
Tip: If you ever need to remove it (for cleaning or
baery replacement), turn o power to your Nest
Protect at the breaker box or remove the fuse rst.
Then turn counterclockwise until it disconnects from
the backplate.
12. Install your Nest Protect
First, tuck any excess wiring into the electrical box.
Line up the three tabs on the back of your Nest Protect
with the notches on the backplate. Hold Nest Protect
against the backplate and turn it clockwise. Continue
turning until it’s square with the wall or ceiling. Install
the rest of your Nest Protects if you have more.
8. Press to test
Press the buon on one Nest Protect. It will tell you
what to do next. Every Nest Protect in the house
should speak up, conrming that they’re connected
to each other.

Google Nest Protect Specifications

General

LED color	Red / Green / Blue
Detector type	Carbon monoxide detector
Maximum range	15 m
Mounting type	Surface-mounted
Product color	White
Speaker power	2 W
Alarm decibels	85 dB
Number of LEDs	6
Housing material	Plastic
Languages support	Italian
Placement supported	Horizontal/Vertical
Wireless connection	Yes
Number of simultaneously connected devices (max)	18
Package type	Box
Quantity per pack	1 pc(s)
Wi-Fi frequency	2.4 GHz
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Connectivity technology	Wireless
Number of screws	4
Power source	Battery
Battery voltage	1.5 V
Battery technology	Lithium
Compatible battery sizes	AA
Operating temperature (T-T)	4 - 38 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	38.5 mm
Width	135 mm
Weight	379 g
