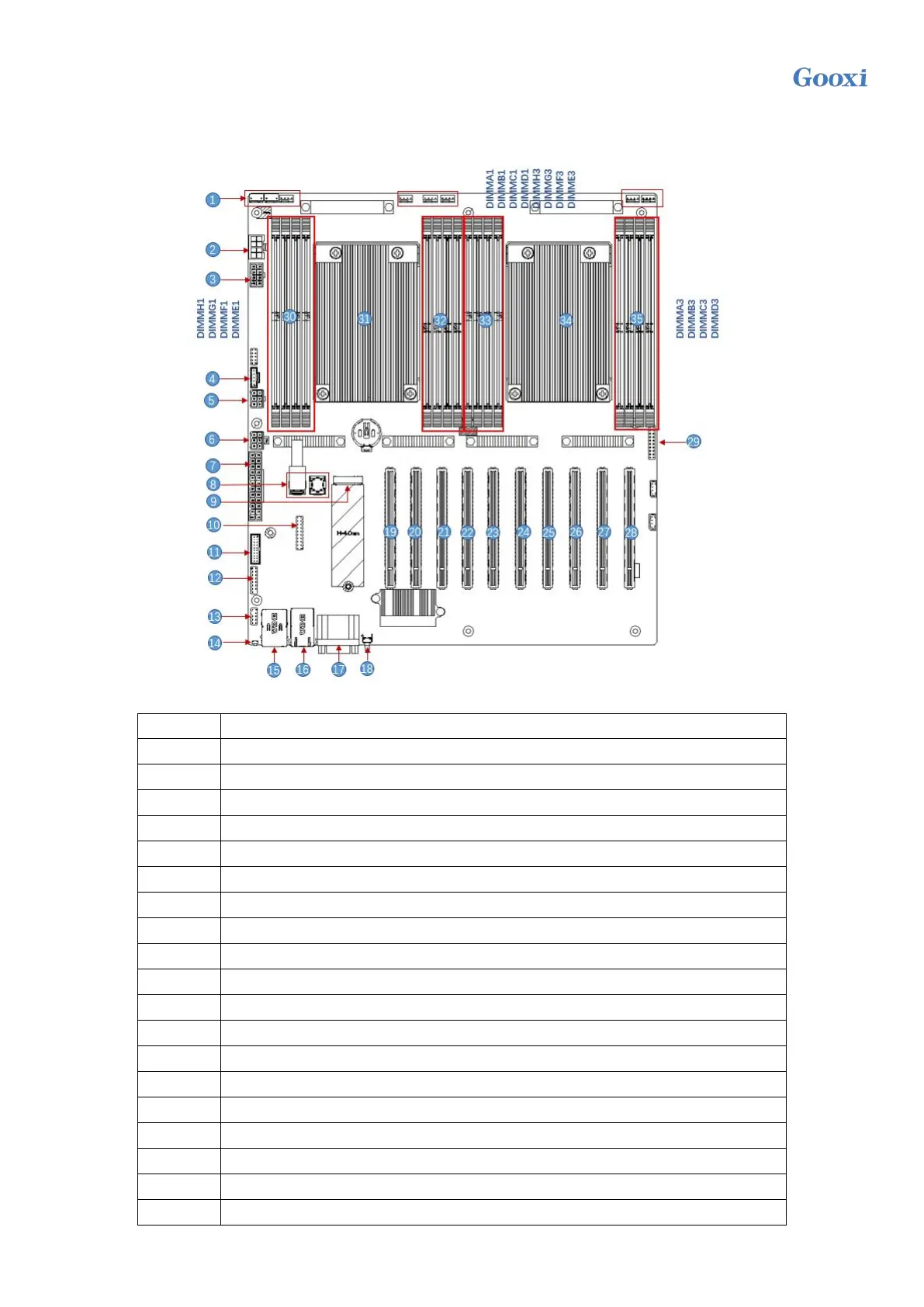

1.4 Motherboard structure diagram
Figure 1-1
S/N
Module name
1
Chassis fan control 4Pin interface (8 pieces)
2
ATX 8Pin power connector
3
ATX 8Pin power connector
4
PMBUS
5
ATX 6Pin power connector
6
ATX 6Pin power connector
7
ATX 24Pin power connector
8
Mini SAS HD1/HD2 8643 connector
9
M.2 slot
10
LPC TPM/80Port 2x10Pin Header
11
FP USB3.0*2 Header
12
FP VGA Header
13
SPI TPM Header
14
BMC button
15
USB 3.0*2+IPMI LAN
16
RJ45 Gigabit Ethernet port
17
COM port and VGA
18
UID button
19
SLOT10 PCIe4.0 X16
