Gooxi SL201 User Manual

21
2.8 I/O Expansion
2.8.1 PCIe slot location

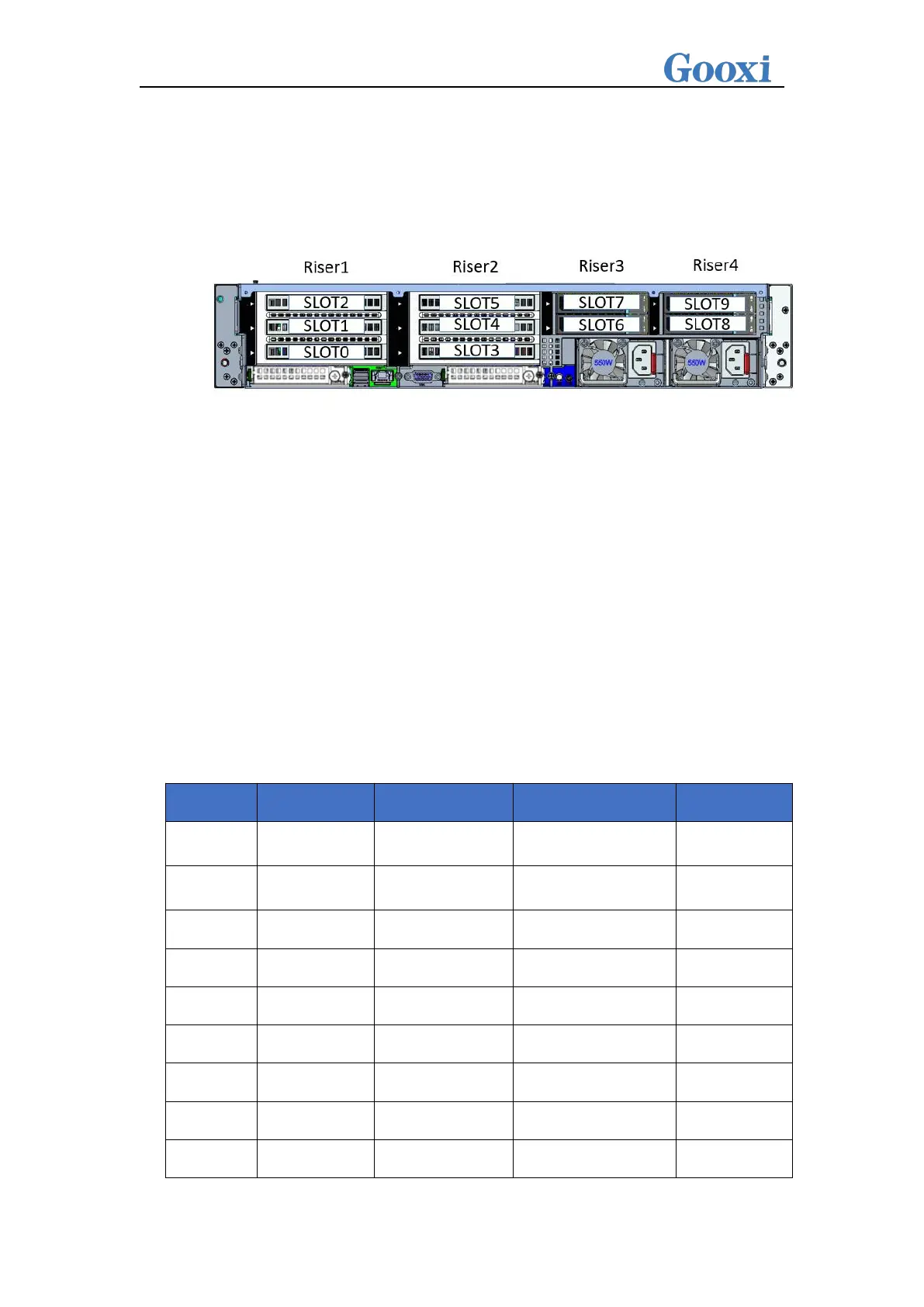

Figure 2-18
 The slots provided by Riser1 module are Slot0, Slot1, Slot2. When using a
PCIe expansion module with 2 slots, Slot1 is not available.
 The slots provided by Riser2 module are Slot3, Slot4, Slot5. When using a
PCIe expansion module with 2 slots, Slot4 is not available.

The slots provided by Riser3 module are Slot6, Slot7. When using a PCIe
expansion module with 1 slot, Slot6 is not available.
 The slots provided by Riser4 module are Slot8, Slot9. When using a PCIe
expansion module with 1 slot, Slot8 is not available.
2.8.2 PCIe slot description
When CPU1 is not in place, its corresponding PCIe slot is unavailable.
PCIe slot
Subordinate
CPU
PCIe standard
Bus bandwidth
Slot size
OCP1
CPU0
PCIe 5.0
X8
-
OCP2
CPU1
PCIe 5.0
X8
Slot 0
CPU0
PCIe 5.0
X16
Full-height
full-length
Slot 1
CPU0
PCIe 5.0
X8
Full-height
half-length
Slot 2
CPU0
PCIe 5.0
X8 or X16
Full-height
half-length
Slot 3
CPU0/CPU1
PCIe 5.0
X8(CPU0) or
X16(CPU1)
Full-height
full-length
Slot 4
CPU1
PCIe 5.0
X8
Full-height
half-length
Slot 5
CPU1
PCIe 5.0
X8 or X16
Full-height
half-length
Slot 6
CPU1
PCIe 5.0
X16
Half-height
full-length
