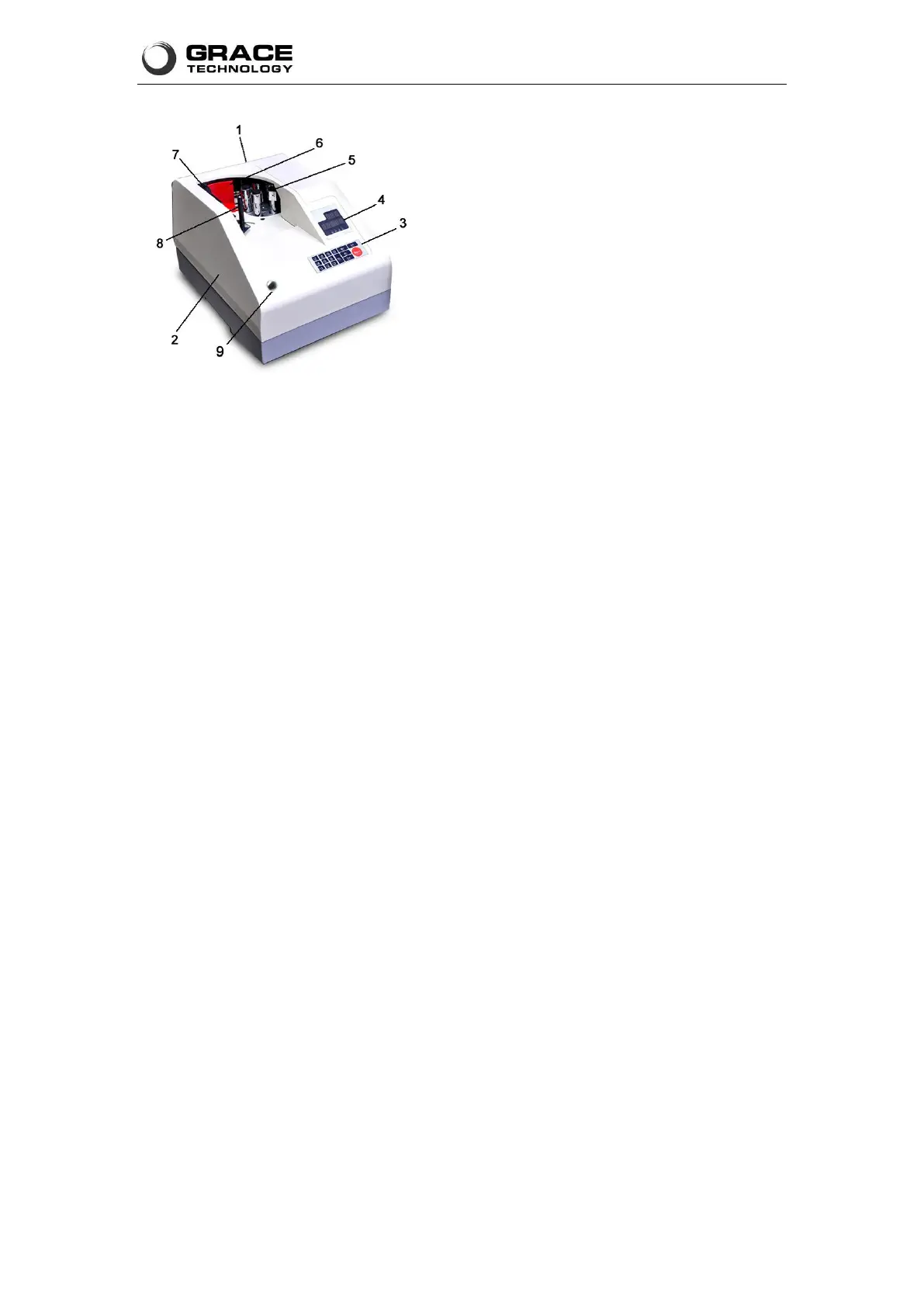

1. Power switch
2. Case
3. Input panel
4. Display
5. Spindle
6. Baffle
7. Note holder
8. Note pole
9. Reset button
D. Specification
1. Type Viacom type
2 .Speed 2.5s/100sheets,3s/100sheets,3.5s/100sheets and 4s/100sheet.
3. Display
Counting and Accumulation Mode Counter display 4+3 digits LED display.
4. Capacity 200 sheet max .
5. Dimension 300mm(w)×410mm(D)×258mm(H)
6.Carton dimension 420mm (w)×530mm (D)×430mm (H)
7. Weight about 30 KGS .
8.Note size 45mm ×100mm 130mm ×240mm.
9. Control system : Microcomputer of Dual CTU.
E. Function& Operation Procedures
1. Function
(1) .Check Mode -You can check if the banknote is exactly 100 sheets.
(2) .Free Mode ---You can count the banknote freely between 1 to 200 sheets.
(3) .Batch Mode -You can preset the banknote number and count them within range (Number 0
and 200 can not be set).
(4) .Accumulation ModeAccumulate the counted results and display it.
Select counting Mode -Four speeds are available.
2. Operation Procedures
Turn on the power switch .and then push the banknote into the note battle .When the note touches
