Reversible Handle Kit
14. Remove linestriper handle (24), four cap
screws (69), four lock nuts (68), and tie
straps (129). Carefully set aside assembled line–
striper handle (24) and pressure control (2).
15. Loosen two knobs (127) and slide out assembled
gun hose (17), flex gun (40), and support
bracket (128).
Note: Raise the LineLazer and place a support under
and near the front end of the cart frame (126) before
removing the caster wheel assembly(118) in the follow-
ing steps.
16. Free detent arm (118ac) from cable (102) by
loosening and removing wire stop (117) from
cable.
17. Loosen and remove two cap screws (143) and two
lock nuts (68)
18. Remove caster wheel assembly (118) and front
caster bracket (124).

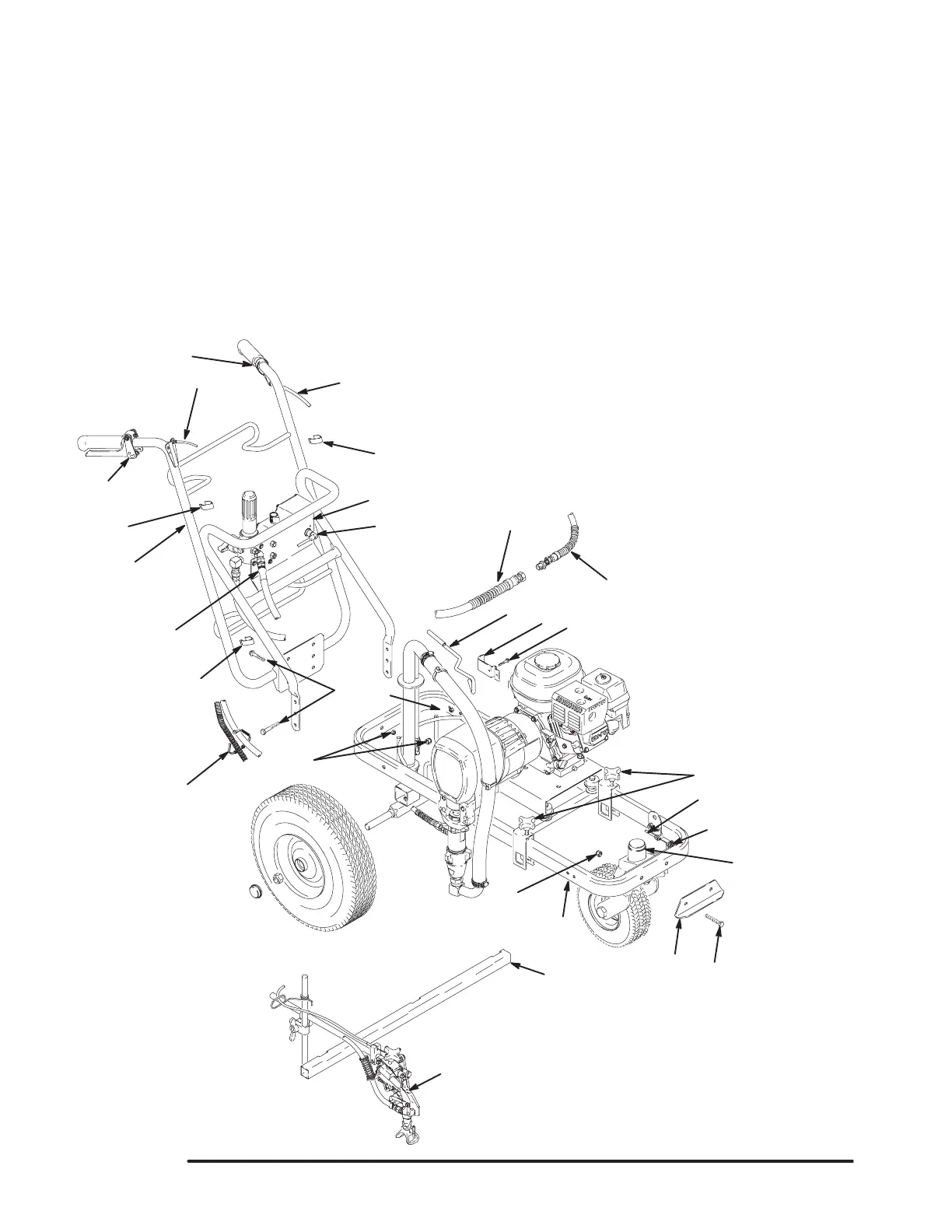

Fig. 1
58
24
130
55
17
102
8897A
130
130
A
A
B
B
19
101
25
2
129
69
68
62
105
103
54
127
68
102(Ref)
118
117,118ac
143
124
126
128
40
11
