4 308944
Reversible Handle Kit

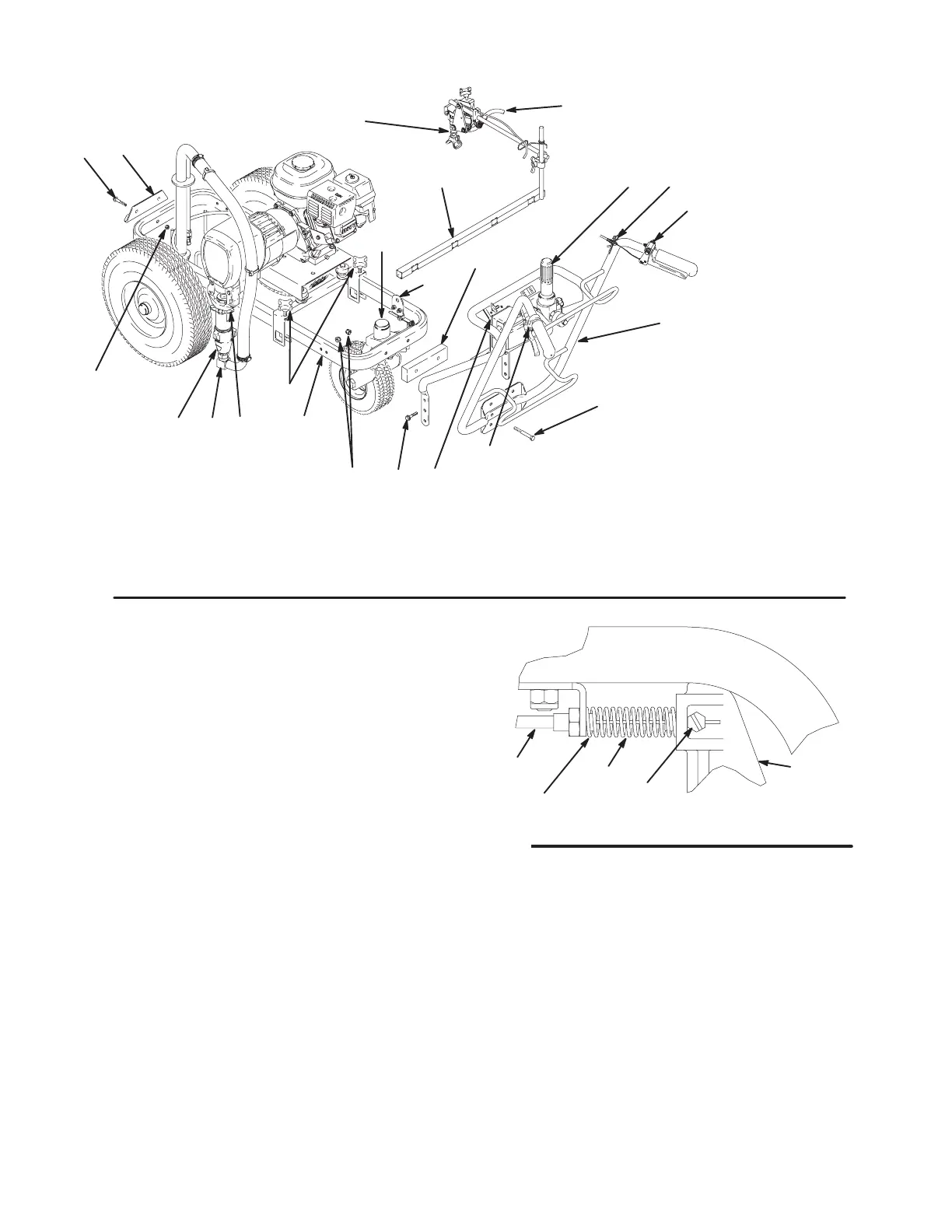

Fig. 3
201
203
202
204
Ref
No. Part No. Description Qty
240714 KIT ASSY, reversible handle Ref
201 194412 . PLATE, spacer 1
202 110837 . SCREW, flange, hex 2
203 111040 . NUT, lock, nylock 4
204 100454 . SCREW, cap, hex hd 2
Kit Parts List
8922A
40
118
24
2
143
124
68
27c80
25
127
126
128
37
17
62
101,102,130
19
58,130
Cable Adjustment
Adjust the cable as follows:
1. Fig. 4. Make sure cable is routed between the top
of sprayer frame and underneath the motor mount
plate
2. Check that cable is snug and cable nut (A) under
spring is tight. Extend cable wire and draw tight in
wire stop (7). Tighten wire stop screw.
3. Check that release lever frees wheel to turn.
Readjust cable if necessary.
Fig. 4
117
A
8835A
102
116
118ac
Graco Phone Number
TO PLACE AN ORDER
, contact your Graco distributor, or call this number to identify the distributor closest to you:
1–800–690–2894 Toll Free.
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Sales Offices: Minneapolis, Detroit
Foreign Offices: Belgium, England, Korea, France, Germany, Hong Kong, Japan
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
http://www.graco.com
PRINTED IN USA 308944 March 1999
