Graco NOAH - Page 21

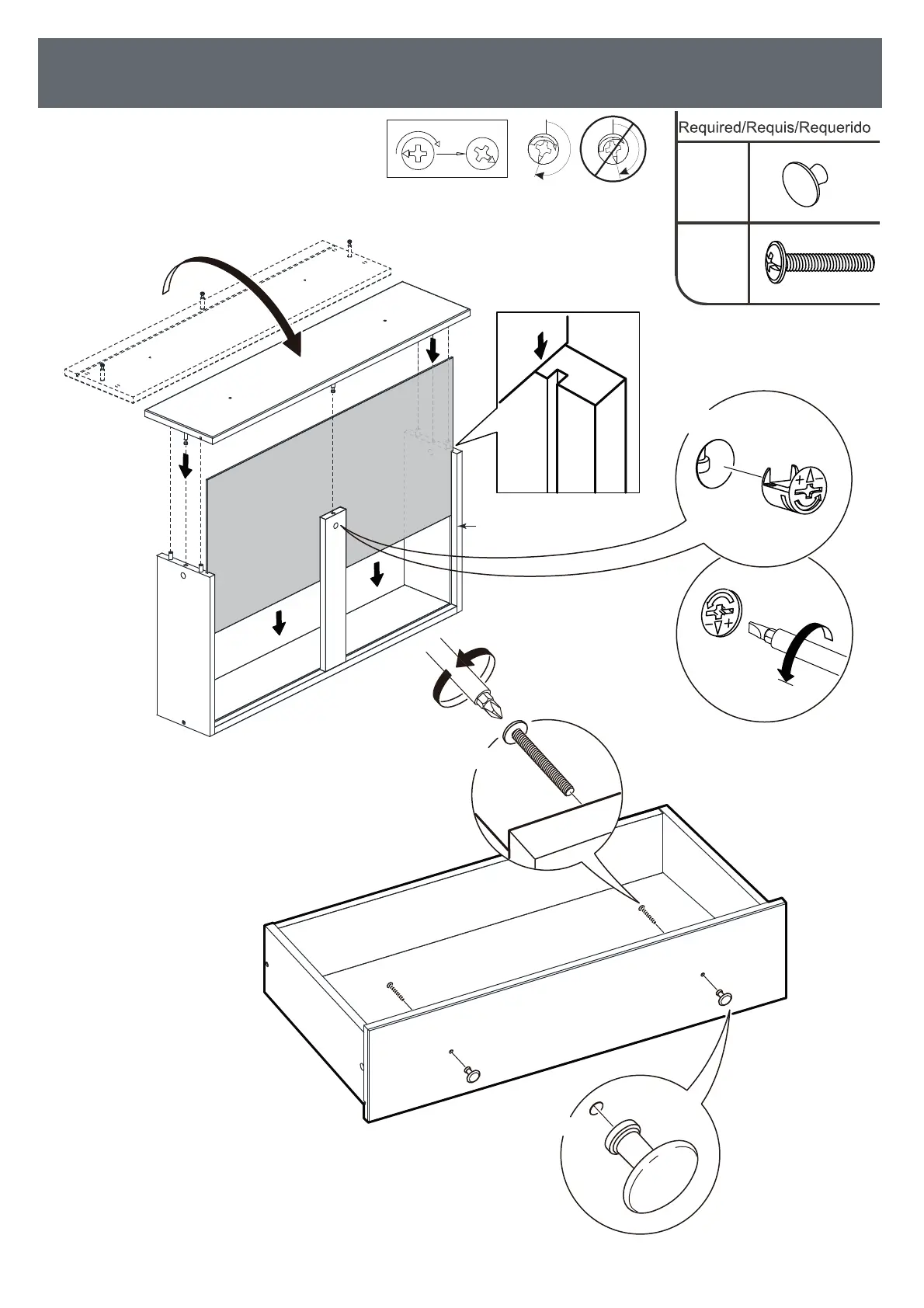

ASSEMBLY INSTRUCTIONS / INSTRUCTIONS D'ASSEMBLAGE /
INSTRUCCIONES DE ENSAMBLAJE
21
14
- Insert D(X3) into A,B,C
- Insert E(X3) into A,B,F&D
correct/
correcto
incorrect/
incorrecto
5
LOCK
X6
X6
E
E
F
6x
6x
D
D
A
B
B
C
C
5
5
8
7
9x
7
8
- Tighten right 5 little more than half turn
to lock them together
- Screw 7(x6) through E(x3) into 8(x6). (3 drawers)
