Parts
312063Z
49
WLD
TI9838a

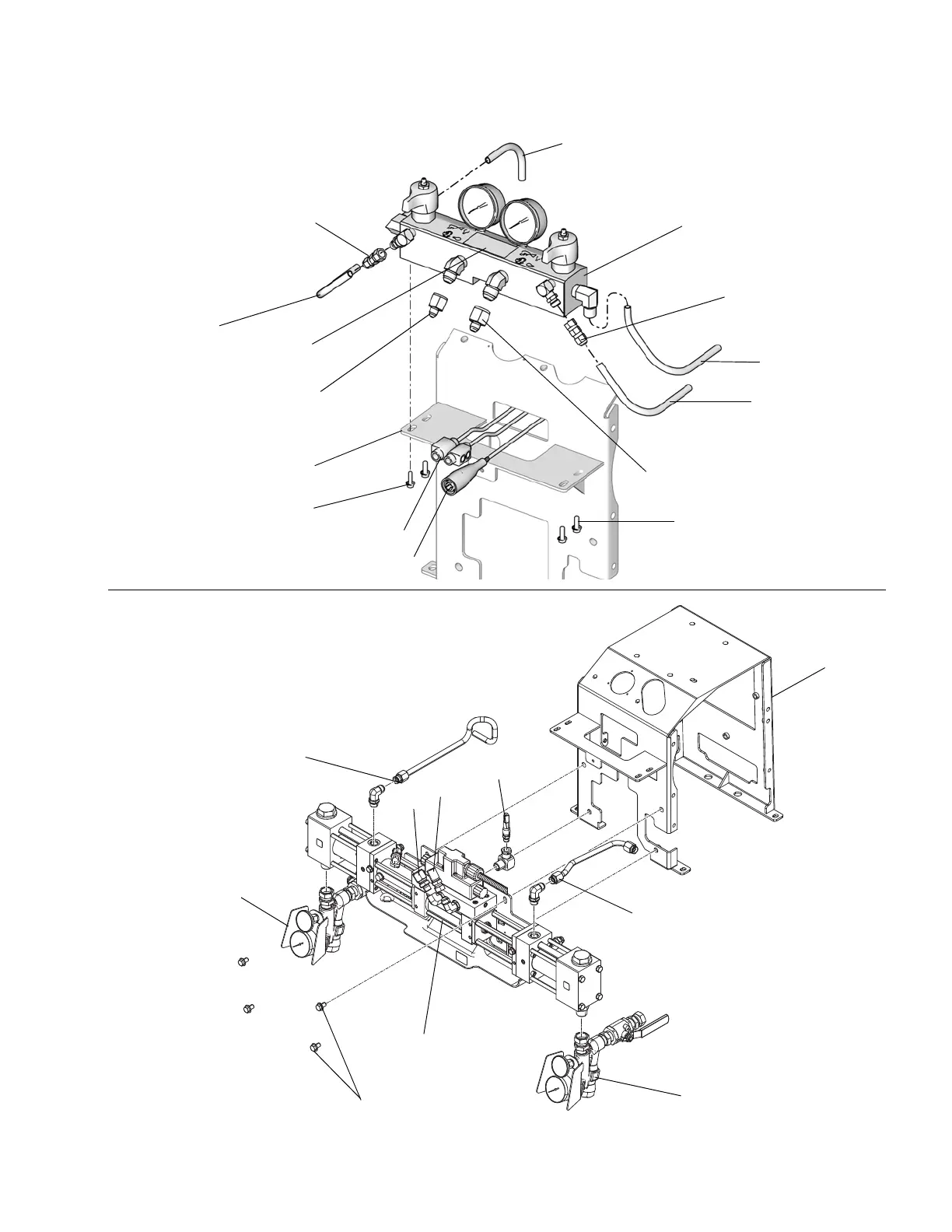

Detail, Fluid Manifold Area
Detail, Proportioner Area
78
88
39
39
89
78
7, see page 65
See page 58
59, see page 51
59, see page 51
15
17
111 (Ref)
111 (Ref)
16
94
93
151
19
79
79
243
57
14
717 (Ref)
48
50
Table of Contents
Default Chapter
2
Table of Contents
2
Models
3
Supplied Manuals
5
Related Manuals
5
Warnings
6
Temperature Control Diagnostic Codes
8
E01: High Fluid Temperature
8
E02: High Zone Current
9
E03: no Zone Current
9
E04: Fluid Temperature Sensor (FTS) or Thermocouple Disconnected
10
E05: Circuit Board Overheated
10
E06: Communication Cable Unplugged
10
Motor Control Diagnostic Codes
11
Alarms
11
Warnings
11
E21: no Component a Transducer
11
E22: no Component B Transducer
11
E23: High Fluid Pressure
11
E24: Pressure Imbalance
11
E27: High Motor Temperature
13
E30: Momentary Loss of Communication
14
E31: Pumpline Reversing Switch Failure/High Cycle
14
E99: Loss of Communication
14
Troubleshooting
15
Reactor Electronics
15
Primary Heaters (a and B)
17
Hose Heat System
18
Hydraulic Drive System
20
Proportioning System
22
Repair
26
Pressure Relief Procedure
26
Flushing
27
Proportioning Pumps
27
Circuit Breaker Module
29
Electric Motor
30
Motor Control Board
31
Transducers
33
Electric Fan
33
Temperature Control Module
34
Primary Heaters
36
Heated Hose
38
Fluid Temperature Sensor (FTS)
39
Display Module
41
Inlet Fluid Strainer Screen
43
Pump Lubrication System
43
Change Hydraulic Fluid and Filter
44
Parts
46
Parts Used on All Models
52
Parts that Vary by Model
54
Sub Assemblies
57
Proportioner Assembly
57
10.2 Kw and 6.0 Kw Heaters
59
8.0 Kw Dual Zone Heater
60
7.65 Kw Single Zone Heater
61
Hydraulic Cylinder
62
Display
63
Temperature Control
64
Fluid Manifold
65
Circuit Breaker Modules
66
Dimensions
70
Technical Specifications
72
Graco Standard Warranty
74
Graco Information
74
