Grammer MSG 90.6PG - Page 180

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.17 Bowden pull wire for seat angle adjustment with locking mechanism –
removal and installation
Page 7 of 9
REMOVAL INSTALLATION TABLE OF CONTENTS

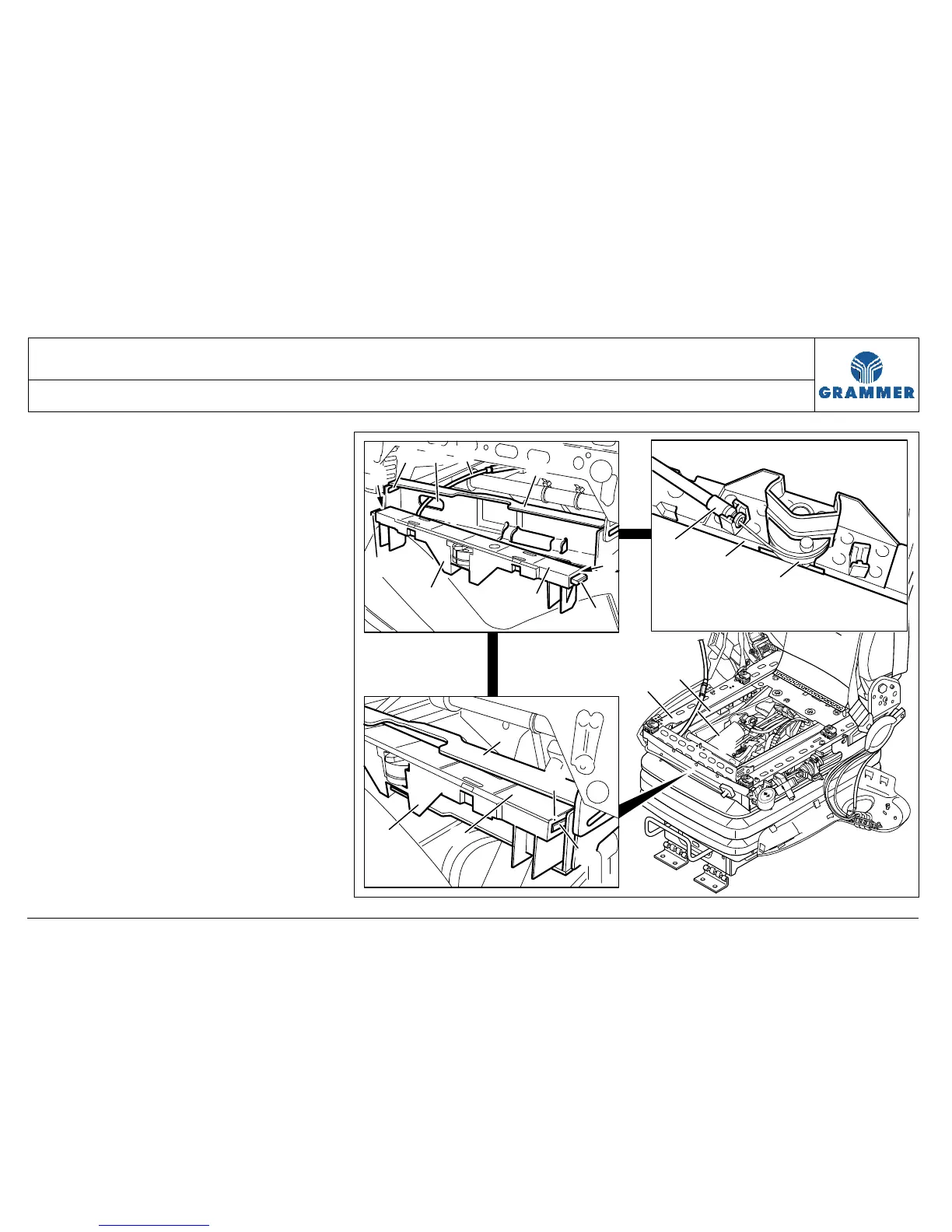

10 Turn the complete locking
mechanism (1) around and position
the Bowden pull wire (5) in the
housing (3).
11 Guide the Bowden pull wire (5)
through the cutout (14) in the upper
suspension part (11).
12 Place the right latch (16) in front of
the groove (15) in the upper
suspension part (11) and press it in.
Installation notes:
• Check the latch guides (7) in the
upper suspension part (11) for tight
fit before inserting the latches
(16, 17) (pressed in).
• Apply acid-free multi-purpose
lubricant to the recess (F) of the
latch guides (7).
