Grammer MSG 90.6PG - Page 199

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.20 Heater cable and belt tensioner cable (delivery option) –
removal and installation
Page 8 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS

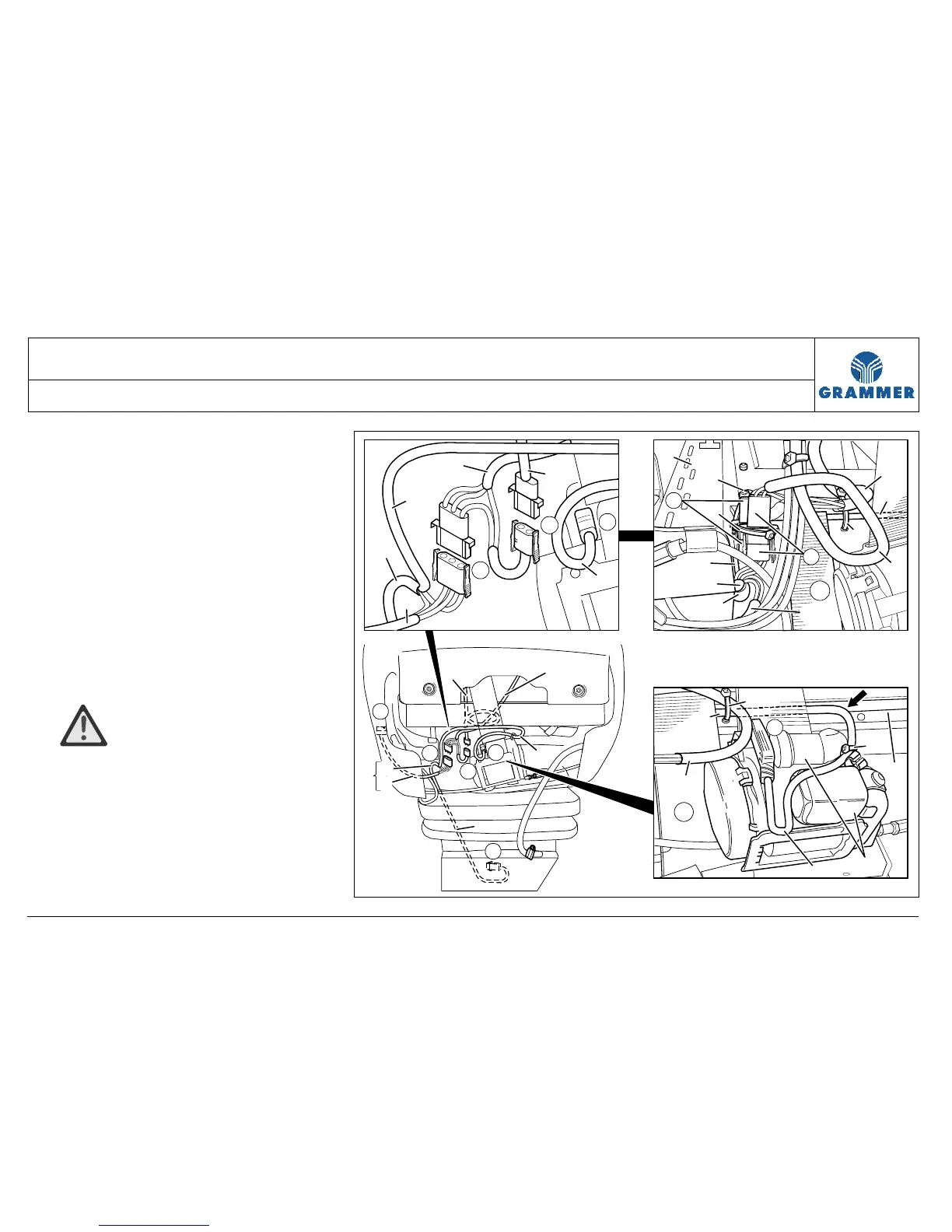

16 Disconnect the electrical
connection (A).
For seat model Actros:
(see Chapter 3.39).
For seat models Atego, Axor:
(see Chapter 3.40).
17 Mark the installation position for the
cable for vehicle connection (4), pull
the cable for vehicle connection (4)
out of the suspension in backward
direction and remove it with the
cable of the heater switch (3) and
the belt tensioner cable (5).
Installation note:
WARNING Malfunction!
Lay the cable for vehicle connection
(4) according to the markings in
such a way that they cannot be
squeezed when the seat is moved
vertically.
18 Re-install the components in the
reverse order of their removal.
2
5
4
6
1
C
B
D
A
4
3
E
13
12
9
10
2
5
1
5
4
14
9
7
5
C
D
E
E
D
C
2
4
5
1
5
3
3
11
10
8
5
2
11
