Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

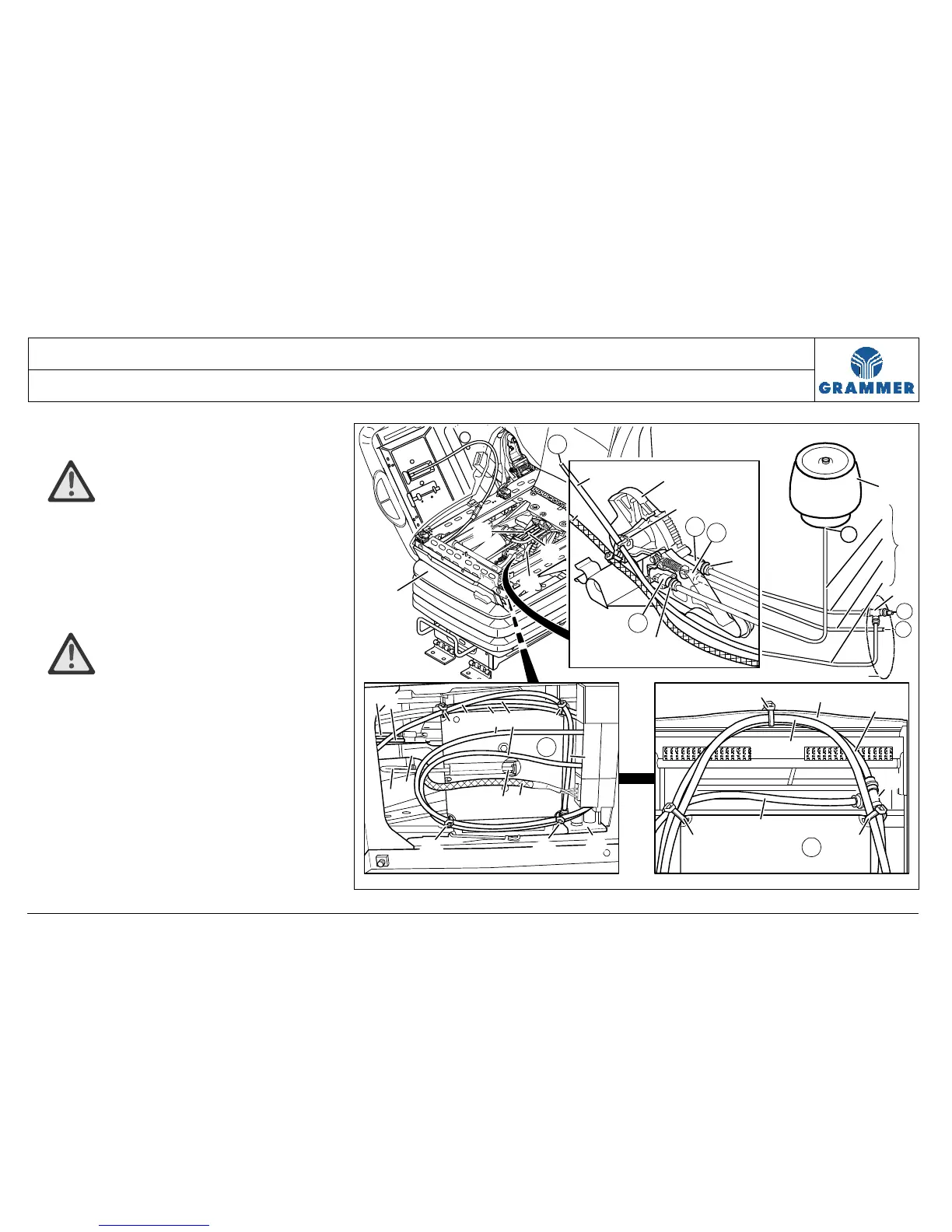

3.22 Air hose set – removal and installation
Page 7 of 15
REMOVAL / INSTALLATION TABLE OF CONTENTS
Removal and installation
6 WARNING Risk of crushing!
Bring the seat into the highest position
and secure the swinging structure to
the front plastic rollers of the lower
suspension part by means of
appropriate spacers.
7 WARNING The pressure in the
pneumatic system might cause injury!
The pneumatic system is to be vented
before removing the air hoses (1, 2,
3, 4) (e.g. by means of the quick
lowering).
8 If the air hose (1) to the air spring
(6) is defective:
8.1 Pull off the hose nozzle (9) and push
it backwards at the air hose (1).
R
7
6
1
3
2
5
14
4
Z
8
4
P
R
10
12
12
19
4
8
9
P
9
1
8
3
2
13
4
3 2
13
4
4
3
15
2
15
16
16
1
12
13
13
11
13
14
13
A
Z
