Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.30 Backrest – removal and installation
Page 11 of 13

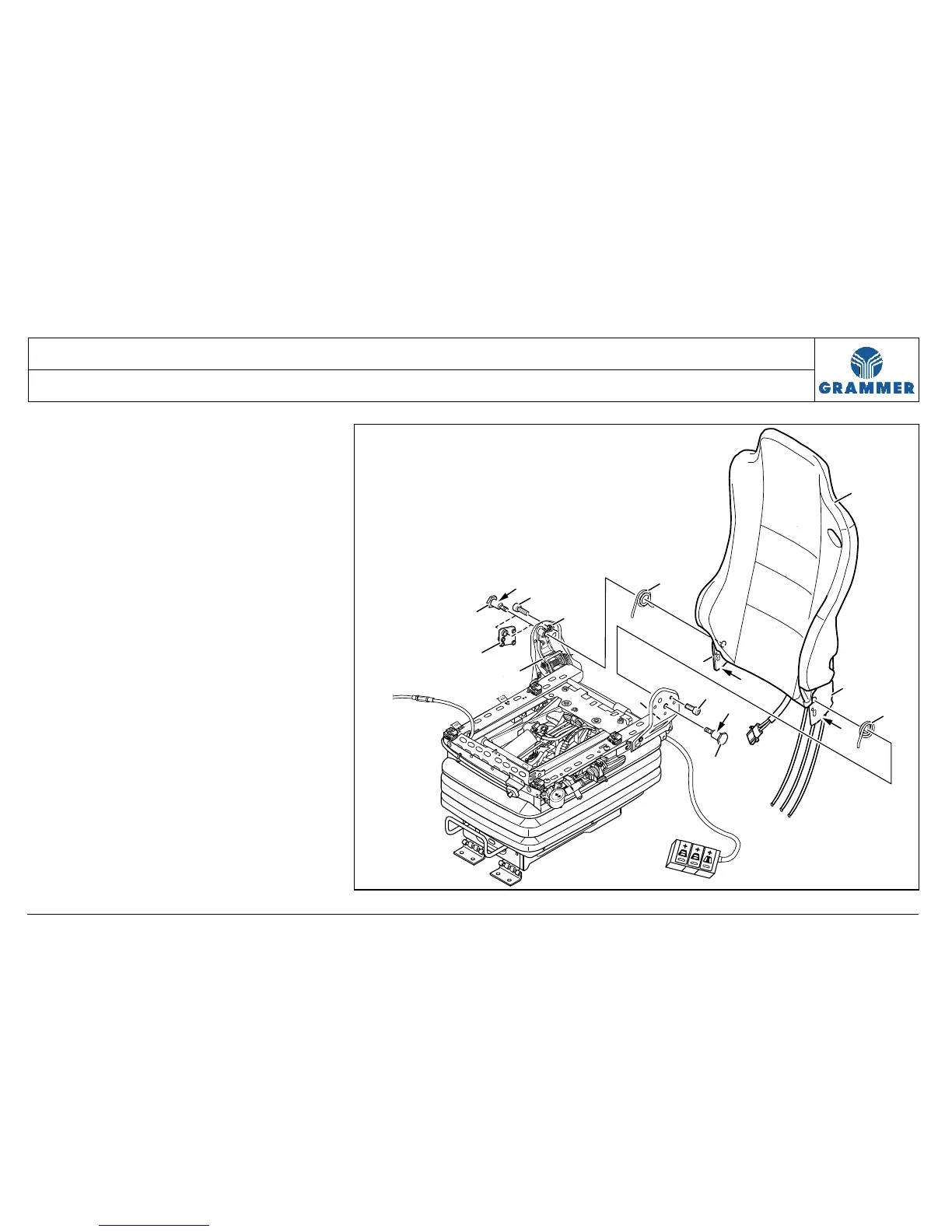

REMOVAL INSTALLATION TABLE OF CONTENTS
5 Set the backrest (7) upright.
6 Tighten the micro-encapsulated cap
screws (3) at the right and left hexagon
nut (4).
Installation note:
Replace the micro-encapsulated cap
screw (3), 25 Nm.
7
Install air hoses for lumbar support and
lateral support adjustment at the valve
unit (see Chapter 3.23).
8 Seat with climate control system:
8.1 Remove the microphone support
(Chapter 3.55).
8.2 Install the cable for the microphone
(Chapter 3.54).
10
F
F
F
F
2
12
3
4
5
9
8
7
11
1
6
3
2220
