Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.33 Lumbar support – removal and installation
Page 5 of 5
REMOVAL / INSTALLATION TABLE OF CONTENTS

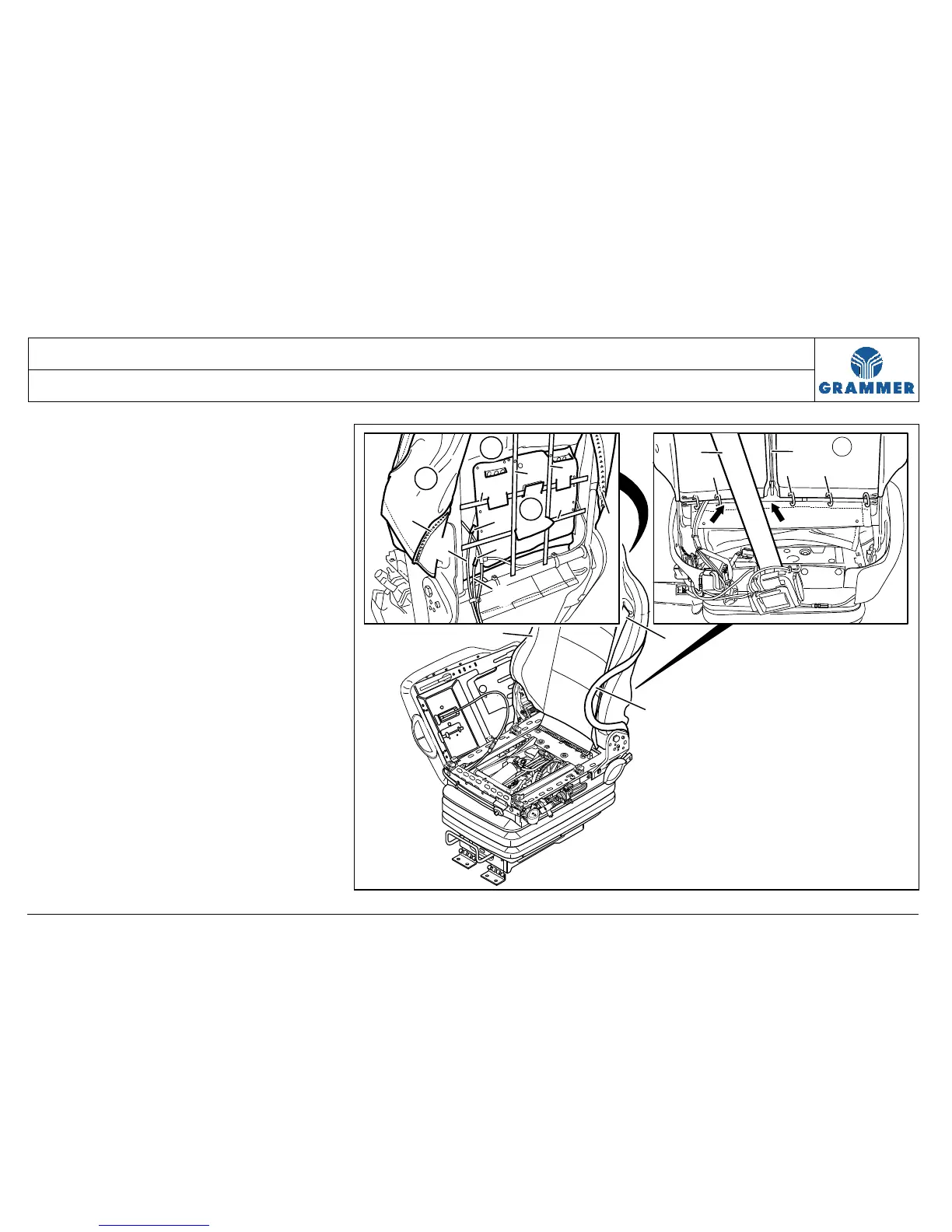

9 Detach the lumbar support (5) at the
lattice frame (6).
10 Pull out the lumbar support (5)
through the lattice frame (6) in
backward direction.
Installation note:
Before hanging it into the lattice
frame (6), exactly align the lumbar
support (5) between the foam plastic
part (4) and the lattice frame (6).
11 Re-install the components in the
reverse order of their removal.
3
4
5
6
6
6
8
10
10
7
9
9
6
2
2
1
2
10
3
1111
11
2236
