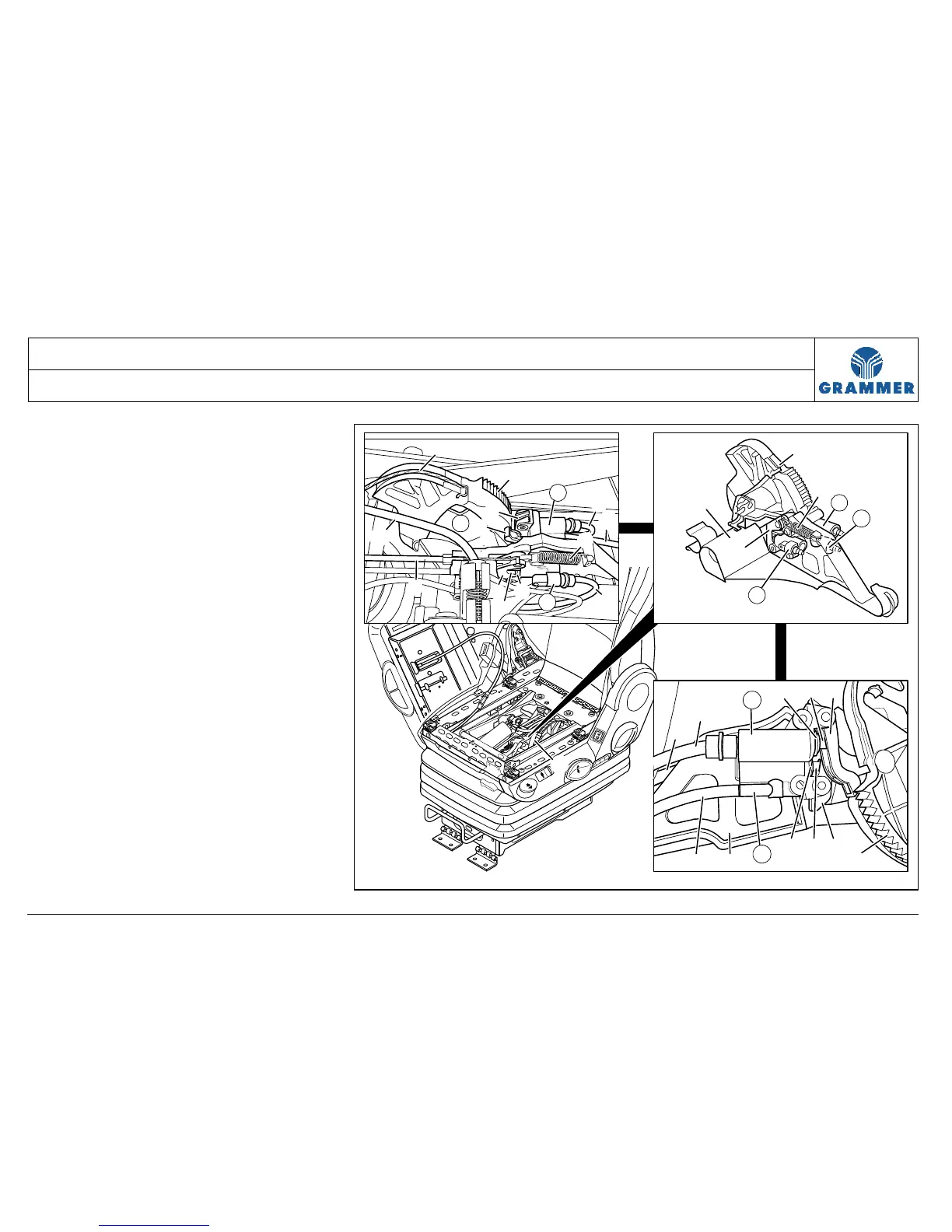

2.1 Overview of components
Page 6 of 15
TABLE OF CONTENTS
(12) Valve tappets for air intake
(13) Valve tappets for air exhaust
(14) Valve tappets for quick lowering of
the seat
(15) Air hose (blue) to the air spring (Z)
(16) Air hose (black) for air intake (P)
(17) Air hose (gray) for air exhaust (R)
(18) Bowden pull wire for vertical shock
absorber adjustment
Connections:
(Z) Connection for air hose (blue) to the
air spring
(P) Connection for the air hose (black)
for air intake
(R) Connection for the air hose (gray)
for air exhaust
