3.46 Worn parts – removal and installation
Page 2 of 2

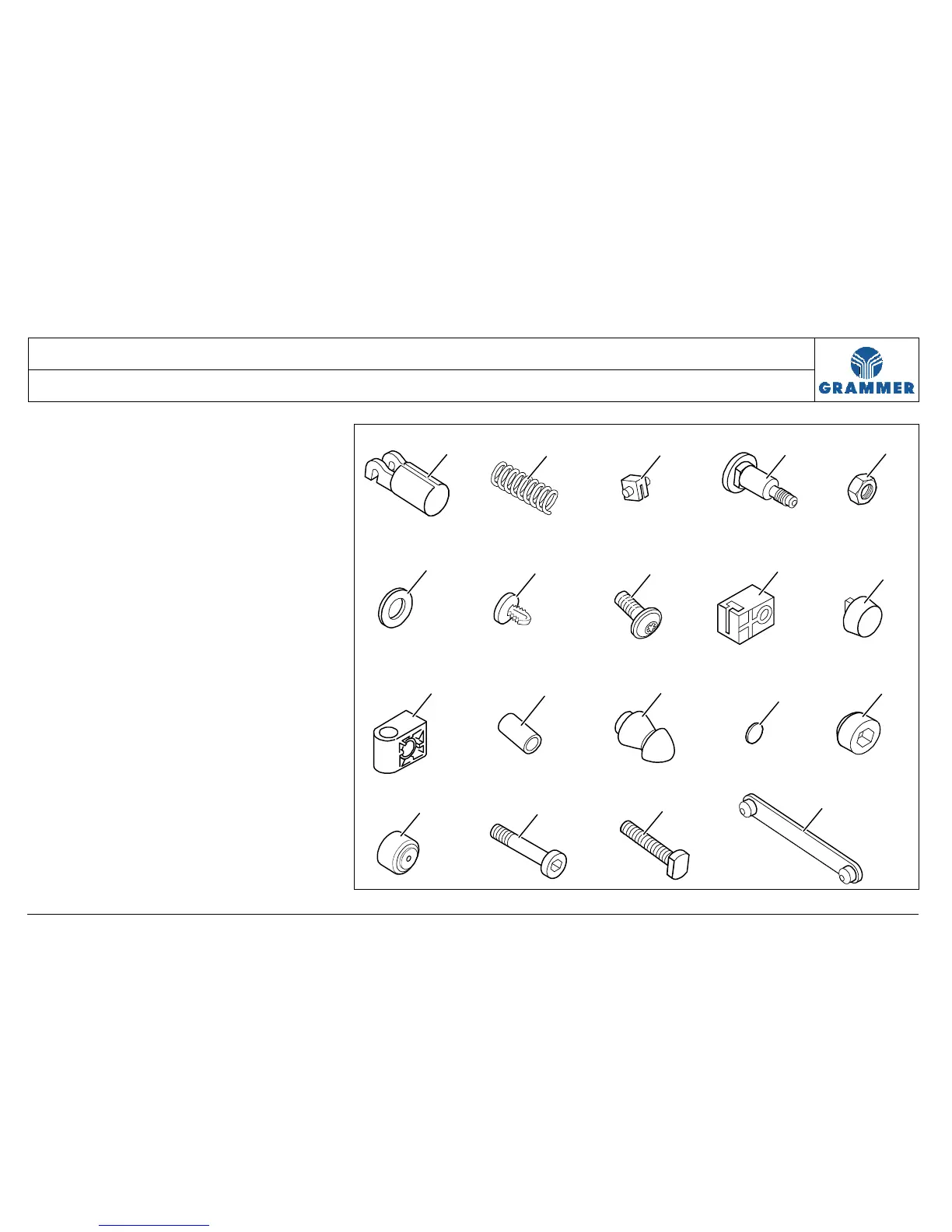

REMOVAL / INSTALLATION TABLE OF CONTENTS
(10) Buffer (2x)
(see Chapter 3.45)
(11) Fixed bearing (4x)
(see Chapter 3.45)
(12) Sleeve (tube piece) (4x)
(see Chapter 3.45)
(13) Buffer (2x)
(see Chapter 3.45)
(14) Clearance spacer (8x)
(see Chapter 3.45)
(15) Buffer (spacer) (2x)
(see Chapter 3.45)
(16) Plastic roller (4x)
(see Chapter 3.45)
(17) Micro-encapsulated cap
screw (2x) ............................. 25 Nm
(see Chapter 3.45)
(18) Threaded bolt (2x)
(see Chapter 3.45)
(19) Slider (2x)
(see Chapter 3.43)
1
2
3
7
9
15
16
14
17
18
10
11
12
13
19
8
4
6
5
