Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.47.4 Air hose set for swivel – removal and installation
Page 8 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS

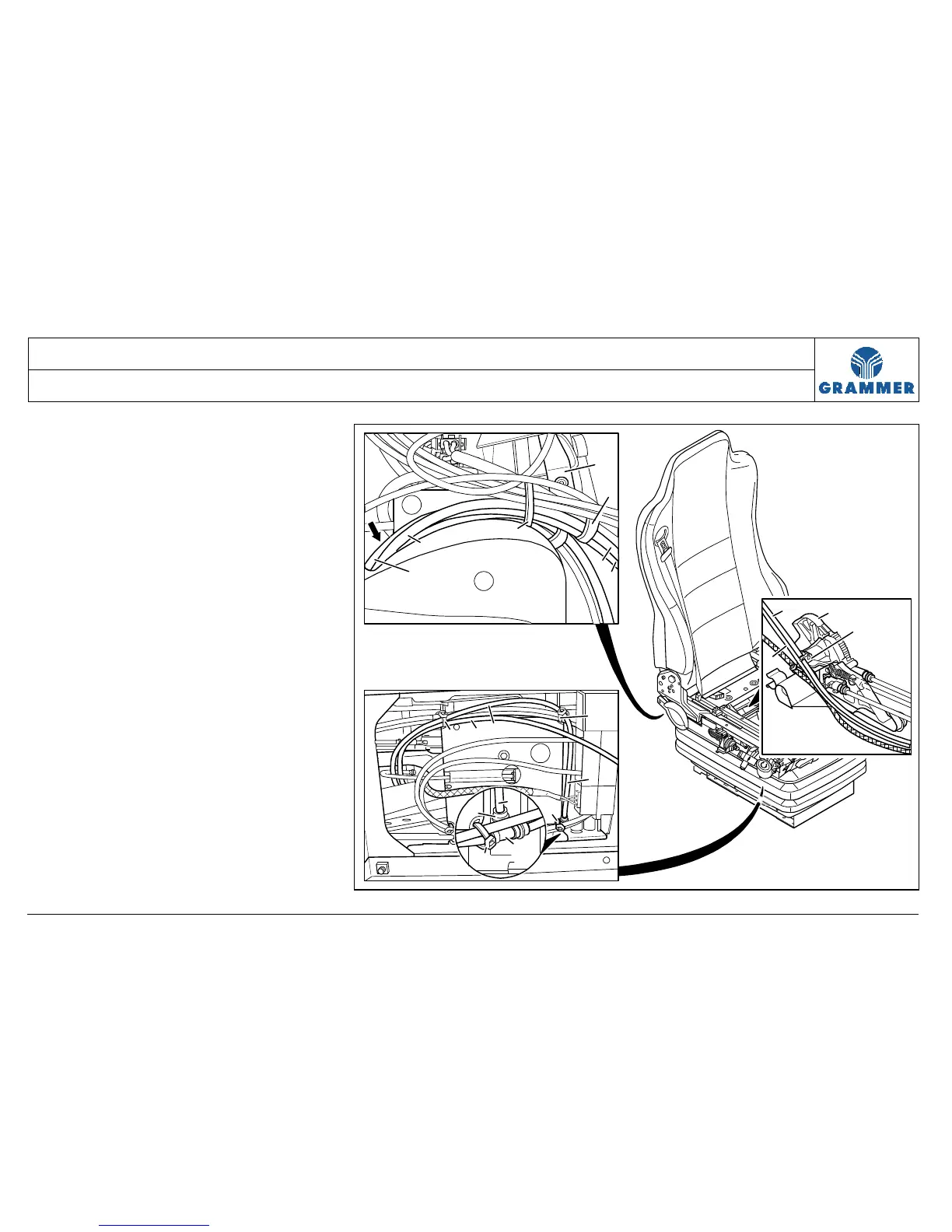

21 Pull off the hose nozzle (5) at the air
hose (9).
22 Pull out the air hoses (8, 9) in
upward direction through the seat
suspension and then in backward
direction (arrow) at the bellows (18)
and remove them.
23 Re-install the components in the
reverse order of their removal.
Installation note:
Cut the required air hoses (6, 7, 8,
9, 10) to the length of the removed
air hoses (6, 7, 8, 9, 10) using piece
goods.
19
20
18
18
19
19
8
9
9
9
11
19
5
9
9
14
13
8
8
17
2264
9
16
15
8
