Grammer MSG 90.6PG - Page 413

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

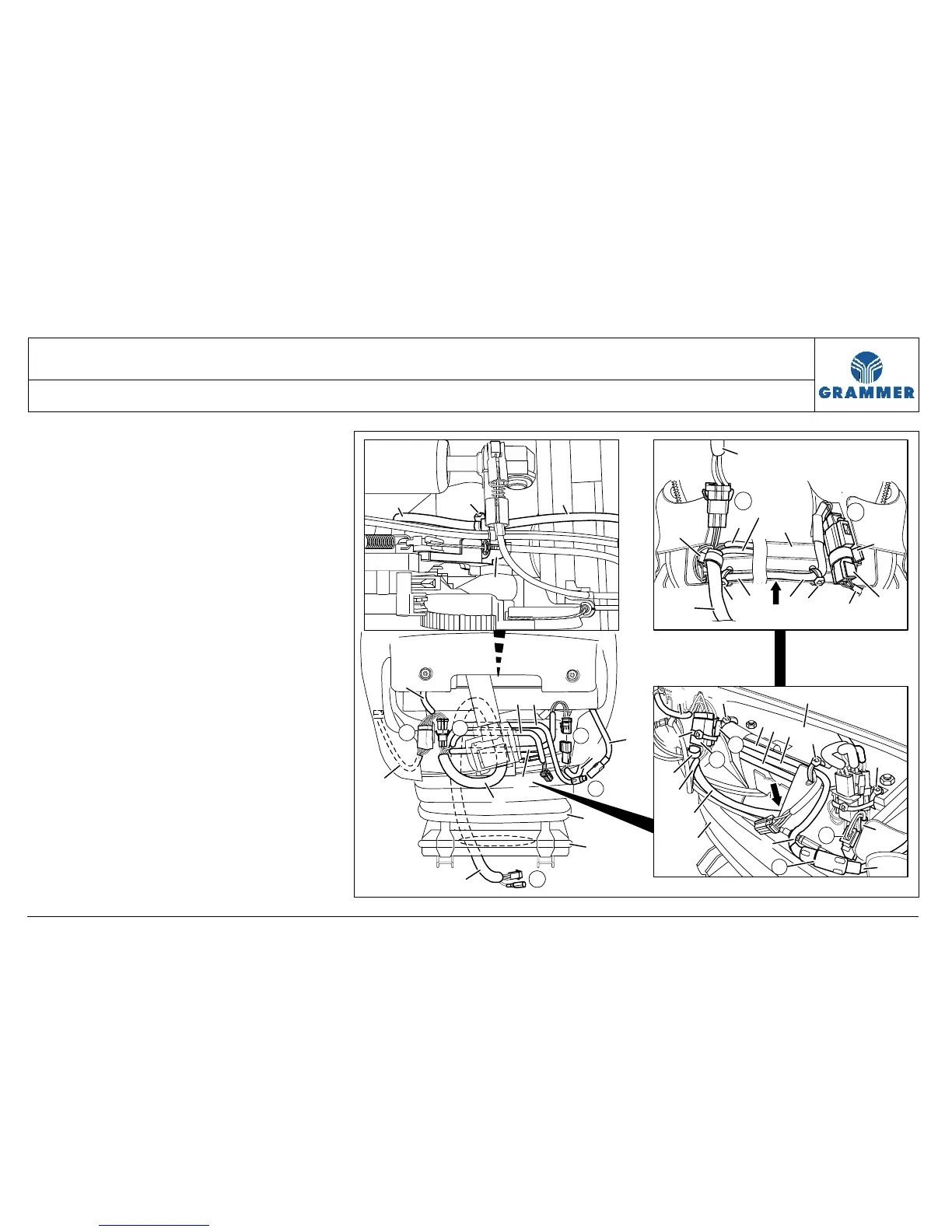

3.51 Cable harness for vehicle connection – removal and installation
(seat with climate control system)
Page 1 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS
(1) Cable harness for vehicle
connection
(2) Cable harness for backrest
(3) Cable harness for heater switch
(4) Microphone contact cable (in cable
harness for vehicle connection)
(5) Belt buckle contact cable (in cable
harness for vehicle connection)
(6) Belt buckle cable
(7) Cable for microphone
(8) Bellows
(9) Swivel
(10) Cable clamp
(11) Cable tie
(12) Cable tie
(13) Seat frame
