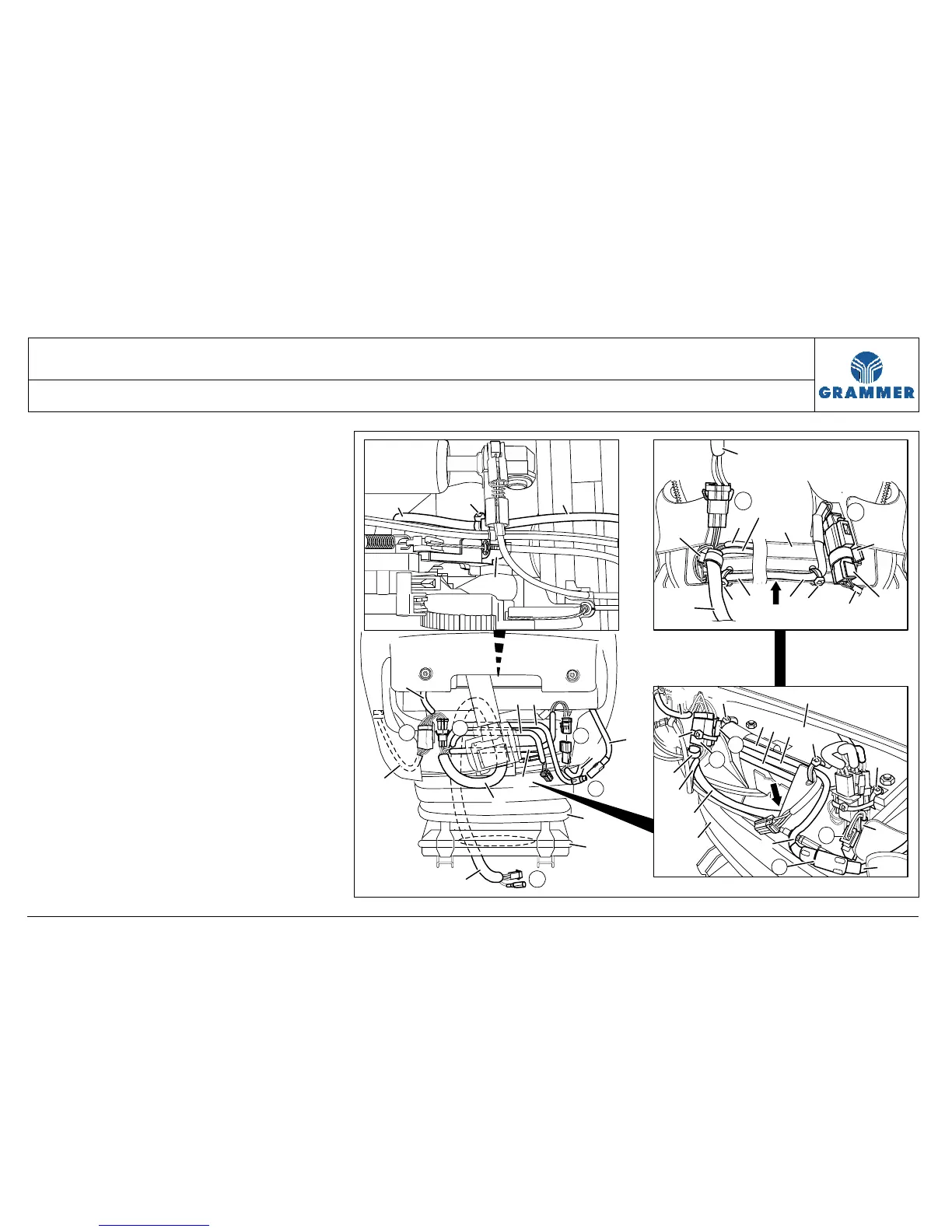

3.51 Cable harness for vehicle connection – removal and installation
(seat with climate control system)
Page 3 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS
Electrical plug and socket
connections:
(A) Electrical connection between
vehicle and cable harness for
vehicle connection (1)
(F) Electrical connection between belt
buckle contact cable (5) and belt
buckle cable (5)
(K) Electrical connection between cable
harness for backrest (2) and cable
harness for the heater switch (3)
(L) Electrical connection between cable
harness for backrest (2) and cable
harness for the vehicle
connection (1)
(O) Electrical connection between
microphone cable (7) and
microphone contact cable (4)
