Grammer MSG 90.6PG - 3.1 Seat cushion in position for repair - lifting off and attachment

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.1 Seat cushion in position for repair – lifting off and attachment
Page 1 of 5
RAISE/ATTACH TABLE OF CONTENTS

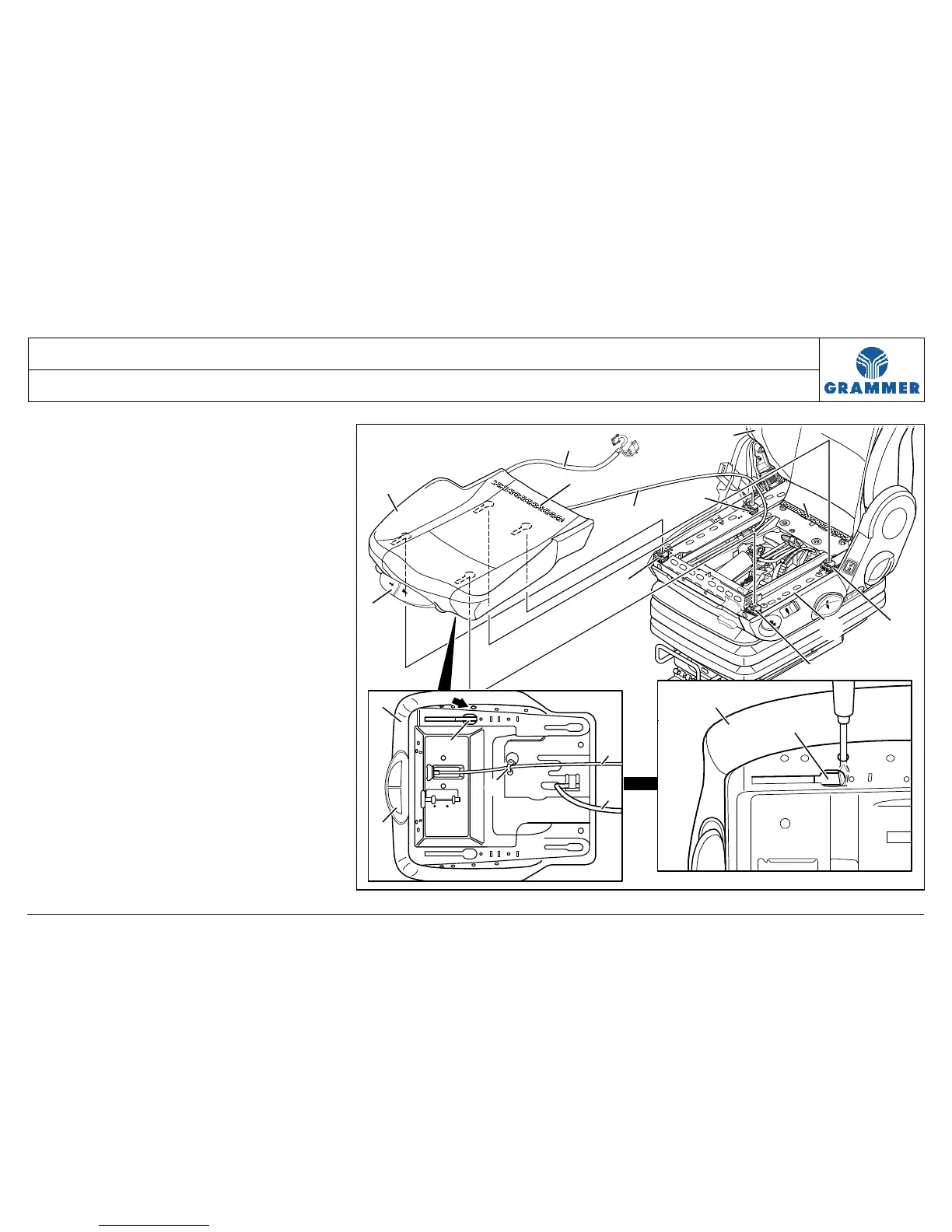

(1) Seat cushion
(2) Velcro fastener (at the cover of
the backrest (4) and the seat
cushion (1)).
(3) Bowden pull wire for seat angle
adjustment
(4) Backrest
(5) Slider
(6) Lever for seat depth adjustment
(7) Spring
(8) Cable tie
(9) Cable seat cushion heater
(10) Seat frame
1
7
2170
1
7
3
9
5
5
5
6
6
1
510
2
2
3
9
4
8
