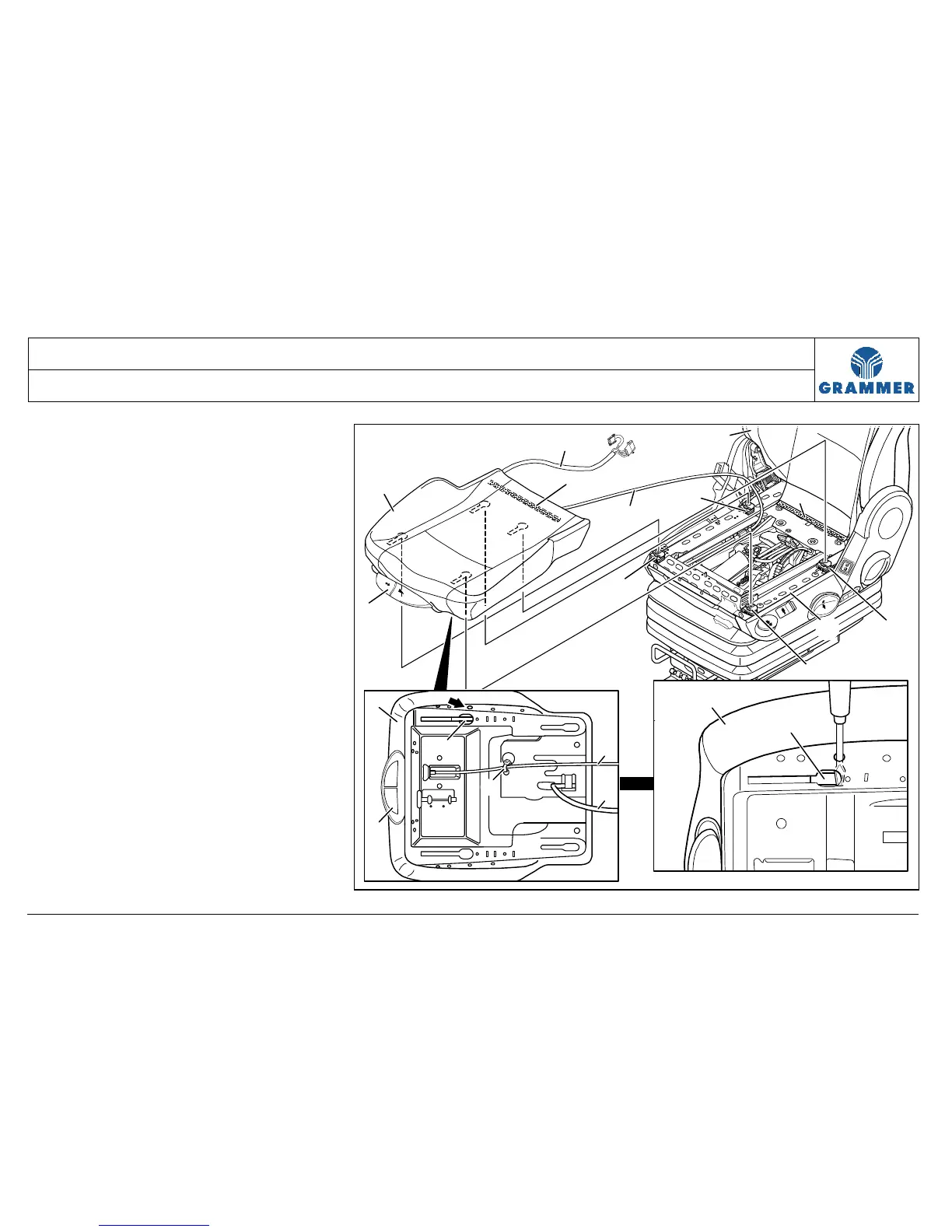

3.1 Seat cushion in position for repair – lifting off and attachment
Page 3 of 5
RAISE/ATTACH TABLE OF CONTENTS
4 Mark the point where the Bowden pull
wire for the seat angle adjustment (3)
is fastened at the seat cushion (1) with
cable tie (8), and remove the cable
tie (8).
5 Undo the Velcro fastener (2) between
the backrest (4) and the seat
cushion (1).
Notes:
• For easy disconnection and
reconnection of the electrical
connections, detach the covering on the
left in position for repair (Chapter 3.4)
and remove covering at the rear (see
Chapter 3.5).
• For seats with climate control system,
the cable for the backrest cushion heater
is guided out of the backrest at the
bottom right (see Chapter 3.49).
