PRECAUTIONS
PACKAGE CONTENTS
•
Do not attempt to disassemble or modify the device.
• Strictly follow the requirement of power source.
• Do not expose this device to temperatures out the range
of -30 °C to 60 °C for operating and -35°C to 60°C for storage
• If the temperature is under -30 degree, the device will take
about 3 minutes to heat up itself before booting and
operating.
• Do not expose this device to environments outside of the
following humidity range: 10-90% RH (non-condensing).
• Please strictly follow the instruction to install or hire
professionals to install properly.
1 x Installation
Bracket
4 x Rubber Gaskets
6 x Bracket Screws
and Anchors
6 x Back Panel Screws
4 x Anti-tamper
Screws
1 x Anti-tamper
Hex Key
1 x Drilling
Template
1 x Wiegand
Cable
1 x Frame Back Cover

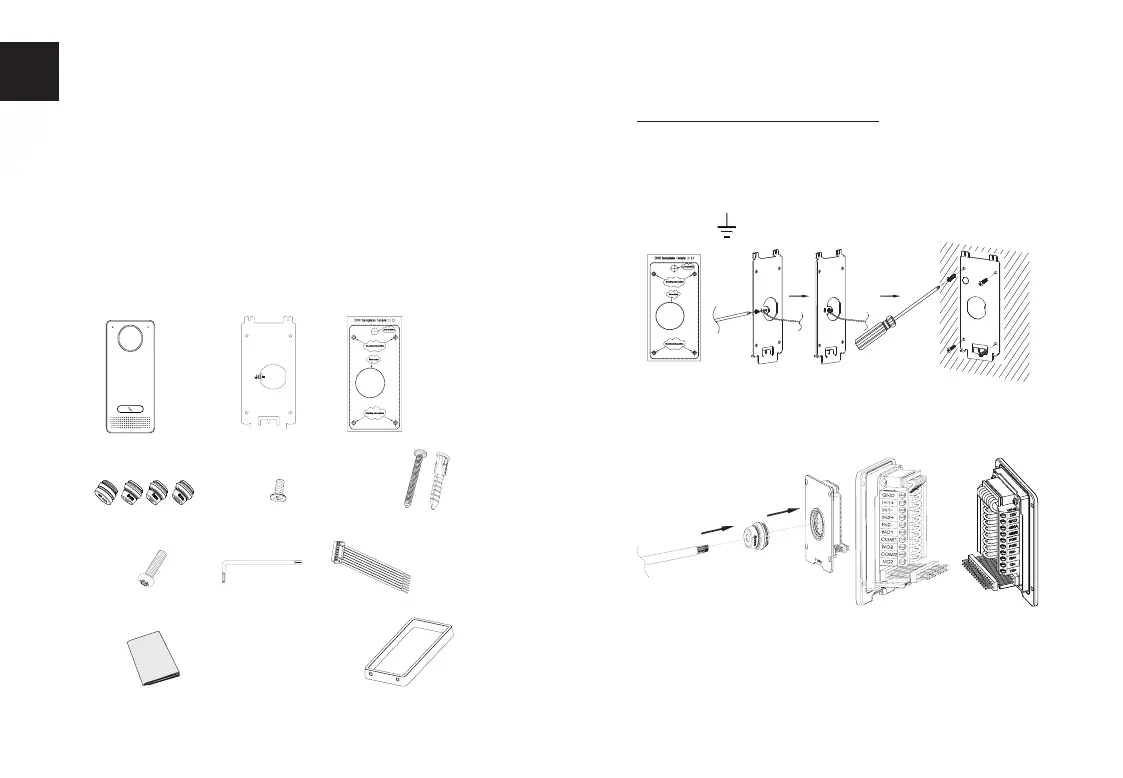

MOUNTING GDS3712
Step 2:
Pull Cat5e or Cat6 cable (not provided) through the rubber gasket
selecting the correct size and the back cover panel piece, please
refer to GDS3712 WIRING TABLE at the end of QIG for Pin connections.
Step 1:
Refer to the “drilling template” to drill holes at targeted place on
wall then mount the installation bracket using the four screws and
anchors provided (screwdriver not provided). Connect and tighten
“Ground” wire (if available) to the bracket ground marked with
printed icon .
On-Wall (Surface) Mounting
Note:
Needle nose plier highly recommended and 2.5mm at screwdriver
required (not provided). Stripping outer plastic shield of the cable
in less than 2 inches suggested. Do NOT leave bare metal outside
the socket by over stripping the inner plastic shield of the wires.
1x Quick Installation Guide
1 x GDS3712
To Next Page
