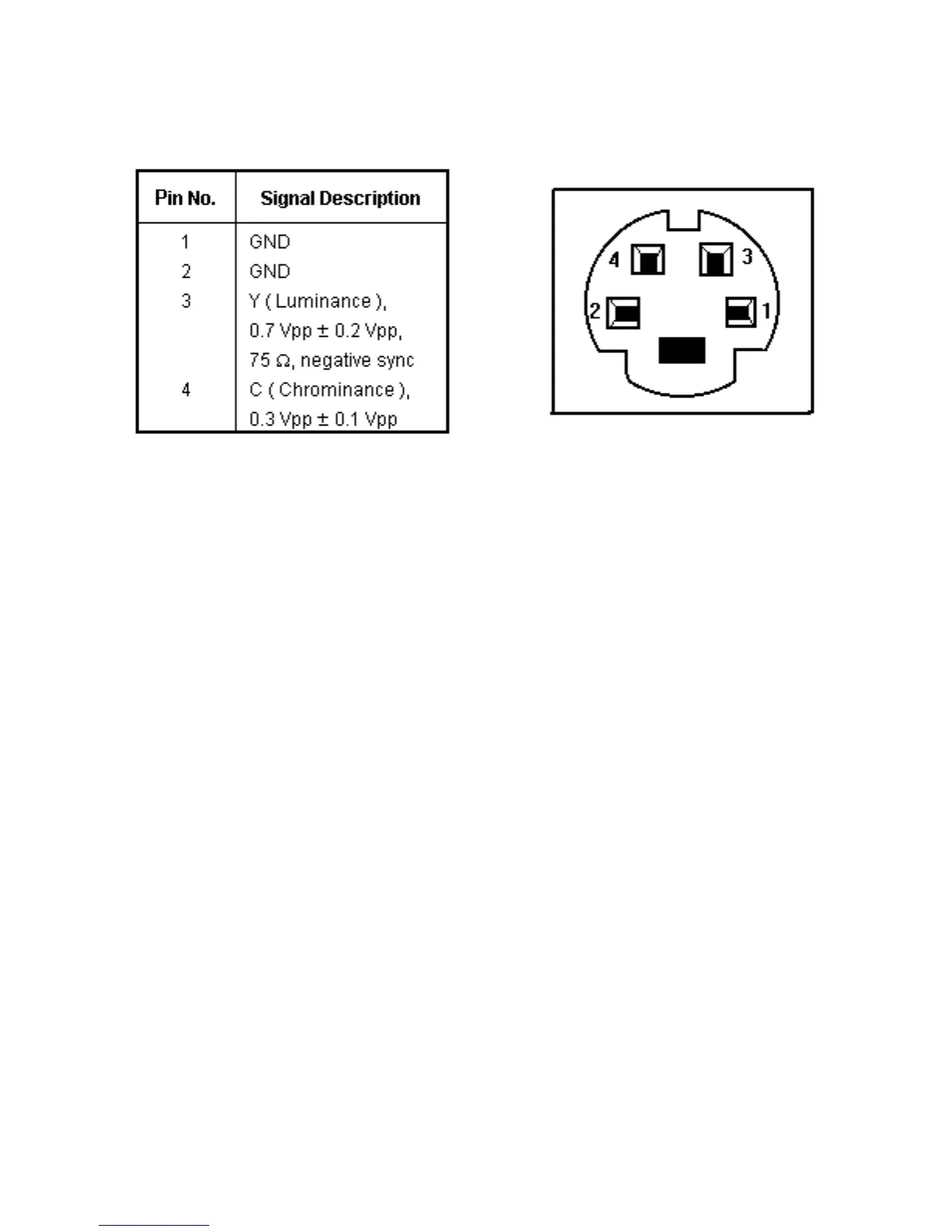

S-VIDEO connector
S-VIDEO connector is a 4 pin mini-DIN connector.
VIDEO OUT connector
Composite video out, 1.0Vpp ± 0.2Vpp 75 ohms, negative sync.
Power Consumption : 5V, 500mA
Note: If you prefer to use an external wallmount power supply instead
of the keyboard adapter, you MUST use the following type:
5V, between 400mA and 1000mA, with a center positive connector
or
