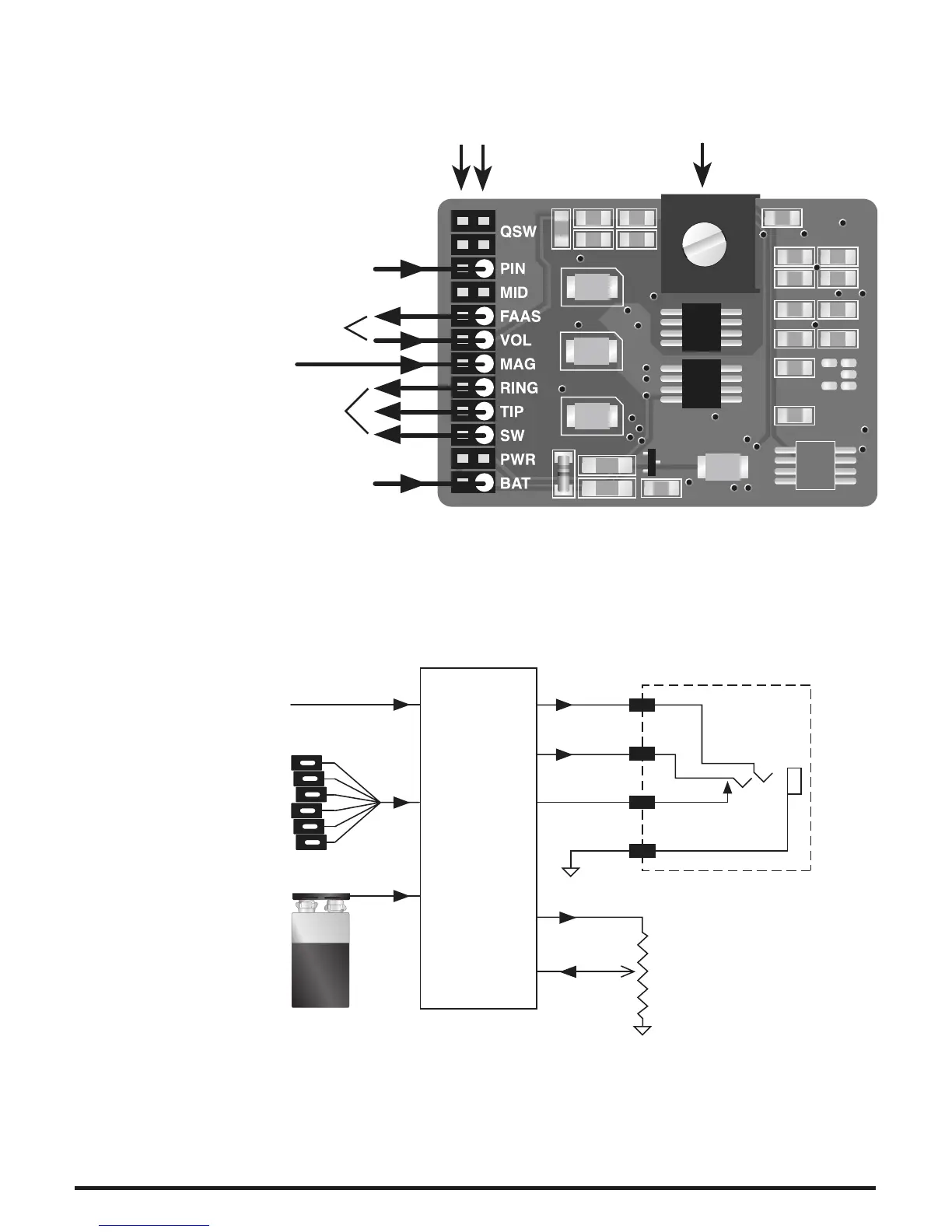

The diagram below shows the functions of the pins used in a standard
installation.
The diagram below shows the schematic for a standard installation.
The magnetic signal comes from wherever you removed the connection to the
old output jack, which will likely be the centre contact of the existing volume
pot or, for Les Paul style instruments, the pickup selector switch. Solder the
black wire to ground.
Schematic
Acousti-Phonic Intelligent Pre-amp
Stereo Jack
GHOST
Volume
GHOST
Pickups
Magnetic Pickups
and Controls
Tip
Ring
Switch
Shank
TIP
RING
SW
GHOST
VOL
MAG
PIN
BATT
Acousti-Phonic Intelligent Pre-amp Connections
GHOST Pickups
GHOST Volume
Magnetic Pickups
Stereo Jack
Battery
GHOST Gain Adjust
Ground
(Black)
Signal
(Colored)
•
Diagram 7.
Diagram 8.
Pickups
To Next Page
