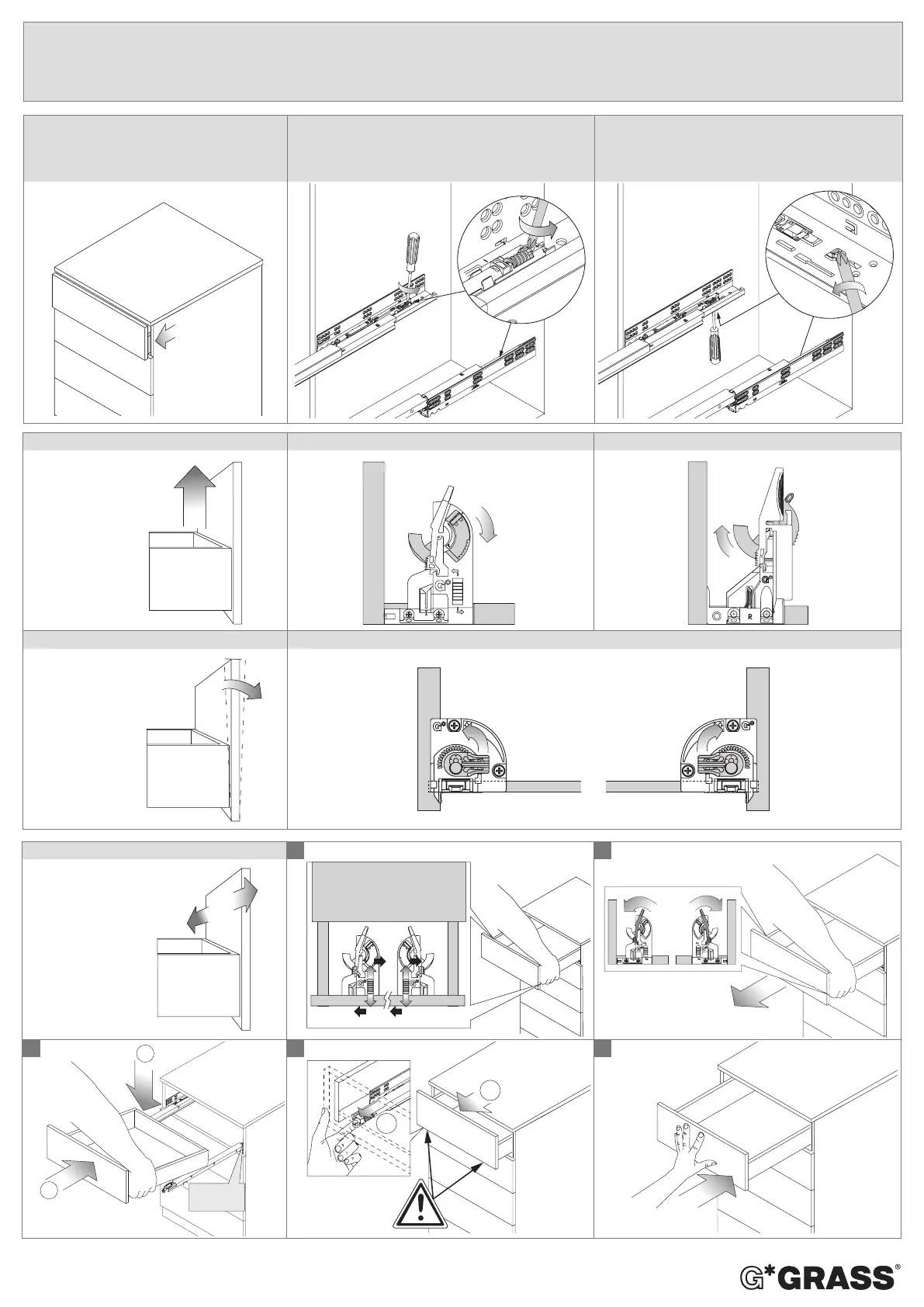

GRASS DYNAPRO TIPMATIC - Adjustment Procedures; Front Gap Adjustment Guide; Drawer Height, Depth, and Tilt Adjustment

Max. ± 1.5 mm
Frontspalteinstellung/Front gap adjustment/
Réglage du jeu de façade/Regolazione del gioco
frontale/Regulación de la fuga frontal/ Justering
av front spalt/Регулировка зазора фасада
R
L
R
L
1
2
click
DYNAPRO TIPMATIC
Verstellungen/Adjustment/Réglages/Regolazioni/Ajustes/Justering/Виды регулировки
113703 – 04/2017
Dynapro 3D Dynapro 2D
Max. + 3.5 mm
Dynapro 3D/2D
Max. + 4.0 mm
1 2
3
4 5
≥ 4.5 mm
1
2
