CHECK BELTS
• Check belts for deterioration or wear and replace
if necessary. Replace belts to accommodate belt
stretch and wear in the traction drive or mower
drive. Refer to Service and Adjustments for
procedures.
CLEAN TRANSAXLE
• Keep transaxles free from buildup of dirt and
chaff which can restrict cooling.
LUBRICATION
• Apply Stens Hi-Temp Grease or equivalent to the
lube fittings on idler pivots.
• Grease the fittings on the front wheel spindles,
the idler arms, and the steering controls every 50
hours of operation.
CLEANING
• Clean engine, battery, seat, deck, etc. of all dirt
and debris with a brush or cloth. Do not use
solvents, harsh cleaners or abrasives.
• Remove packed grass and debris from under
mower deck.
• Keep finished surfaces and wheels free of all
gasoline, oil, etc.
• Protect painted surfaces with automotive type
wax. Lightly coat unpainted surfaces with spray
lubricant and wipe off excess with soft cloth.
IMPORTANT: Never spray unit with water or store unit
outdoors. Water can seep into sealed bearings, which
are sealed against dirt and debris only, causing
reduced component life.
ENGINE
To access engine:
1. Unhook Engine Cover latch.
2. Lift rear of cover and slide out. Set cover aside.
3. To replace cover: Slide front of cover into slot.
4. Insert the back edge of cover into its support
bracket.
5. Hook Engine Cover latch securely.

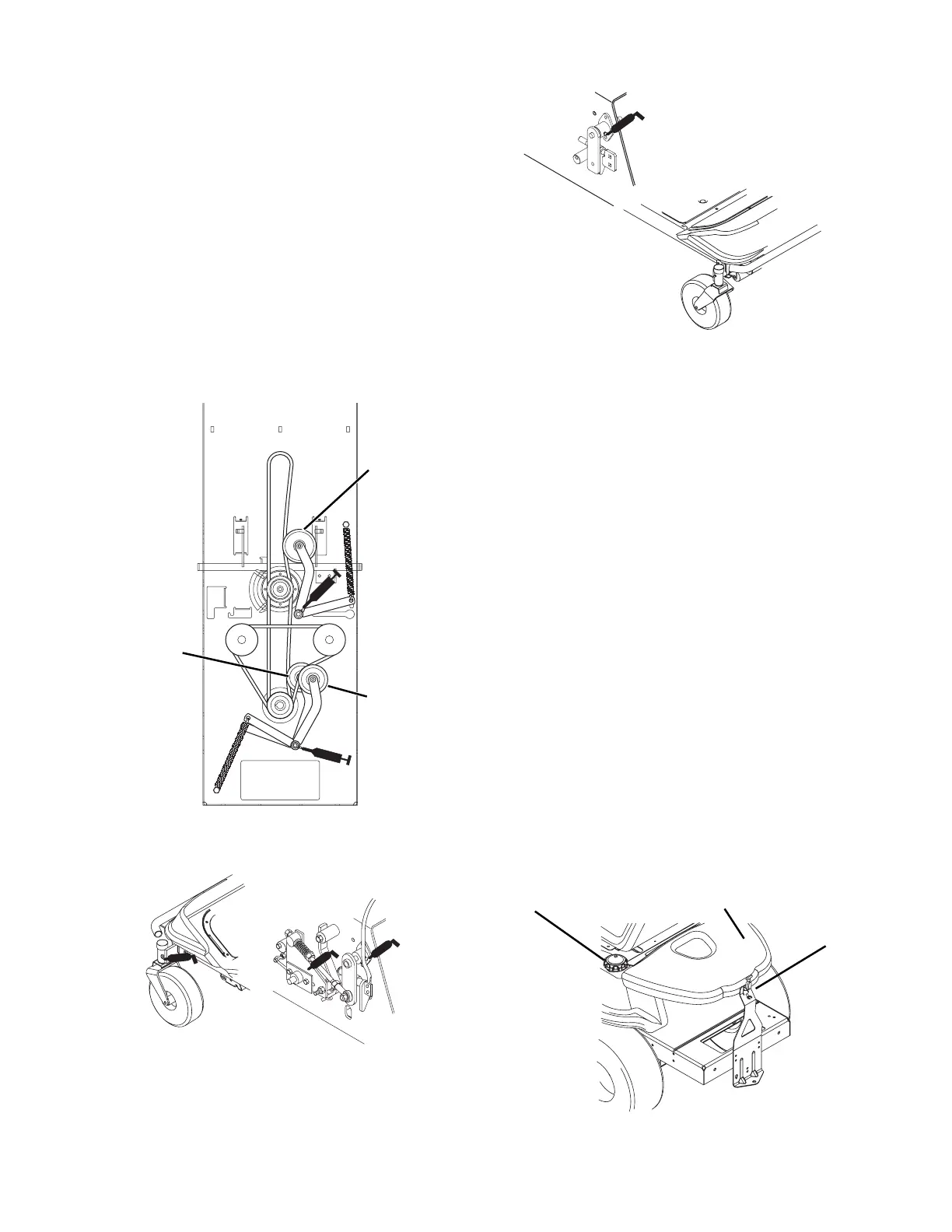

Clutch Shaft
Idler
Transaxle Idler
Mower Drive
Idler
OE0331
Front
Back
OE0700
1740 with Serial Numbers Less
Than 1,000
OE0701
All Other Units
Engine Cover
Fuel Cap
Engine
Cover
Latch
OE0800
To Next Page
