Gravely 2048 ZT User Manual

GB - 26
ADJUSTING THE UNIT TO TRACK
STRAIGHT
The primary reason the unit may not track straight is
incorrect or unbalanced tire air pressure. First, check
and adjust tire pressure. Increase pressure on the side
the unit tracks toward. DO NOT exceed maximum
recommended tire pressure. See Specifications.
If adjusting tire air pressure does not the solve tracking
problem, the steering control lever travel may need to
be adjusted.
To check steering control levers:
With the engine off, push the steering control levers to
their full forward position. If one lever travels farther
than the other, they need to be adjusted.
To adjust:
1. Remove side shrouds. Set aside.
2. Loosen bolts which attach the eccentric to the
seat support. Do not remove the bolts.
3. Rotate eccentric to adjust the travel of the speed
control arm. The thicker portion of the eccentric
shortens the distance the steering control lever
will travel forward. The thinner portion of the
eccentric lengthens the distance the steering
control lever will travel forward.
4. Adjust the rotation of the eccentrics on one or
both sides of the unit so that the steering control
levers align in the full forward position.
5. Tighten the eccentric’s bolts.
6. Reinstall the side shrouds.
ADJUSTING REVERSE TRACKING
Units with Serial Numbers more than 1,000
A bolt attached to the frame adjusts reverse steering
lever travel.
To check steering control levers:
With the engine off, pull the steering control levers to
their full rearward position. If one lever travels farther
than the other, they need to be adjusted.
To adjust:
1. Remove side shrouds. Set aside.
2. Loosen flange nut holding adjustment bolt to the
frame.
3. Slide the bolt down the slot to increase lever
travel.
Slide the bolt up the slot to decrease lever travel.
4. Tighten flange nut.

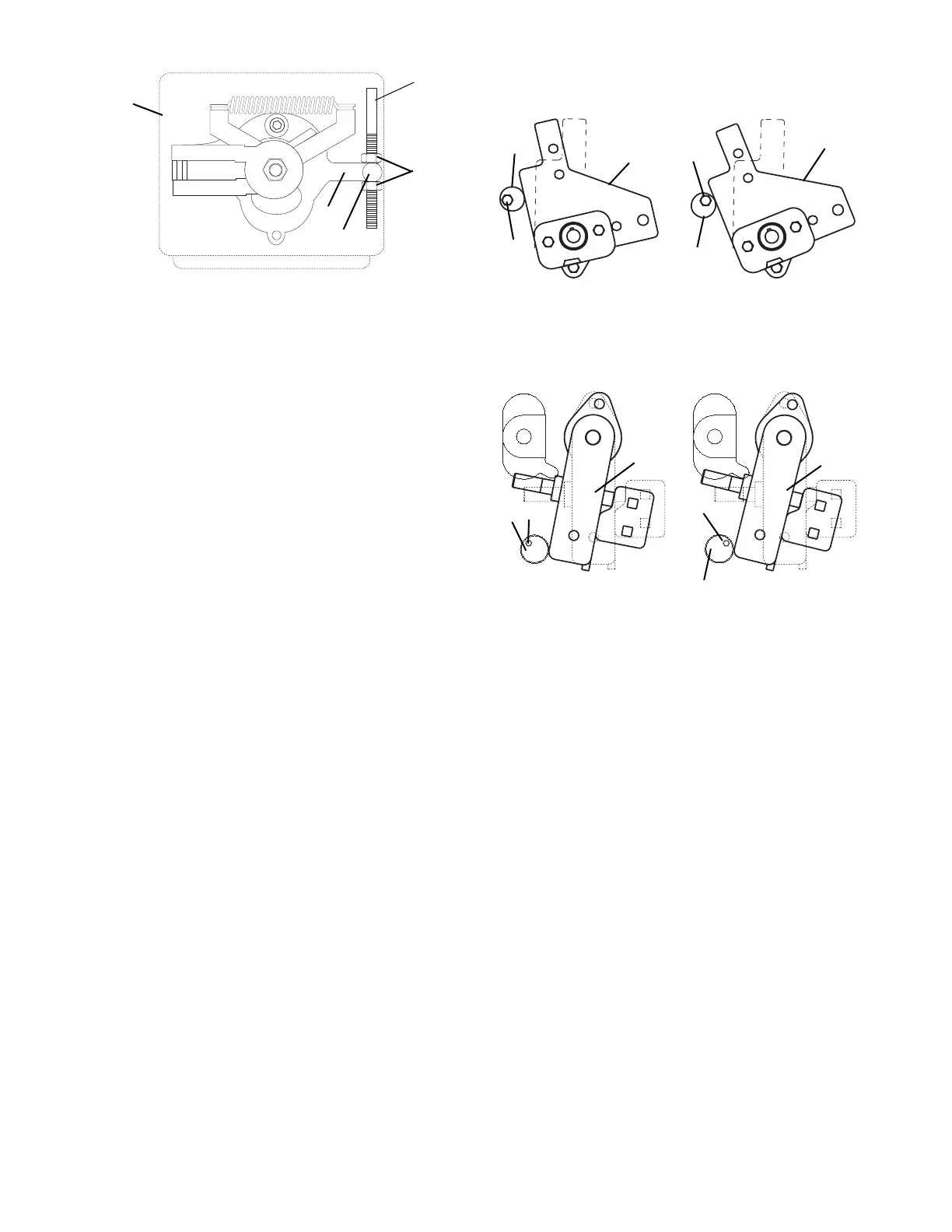

OE0084
1
2
3
4
1. Nuts
2. Transaxle Linkage
3. Pivot Arm
4. Transaxle Housing
5. Transaxle Rod
5
OE0850
Shorter Travel
Longer Travel
1. Eccentric
2. Bolt
3. Speed Control Arm
1
2
3
1
2
3
1740 Units with Serial Numbers less
than 1,000
OE0900
Shorter Travel
Longer Travel
1. Eccentric
2. Bolt
3. Speed Control Arm
1
2
3
1
2
3
All Other Units
