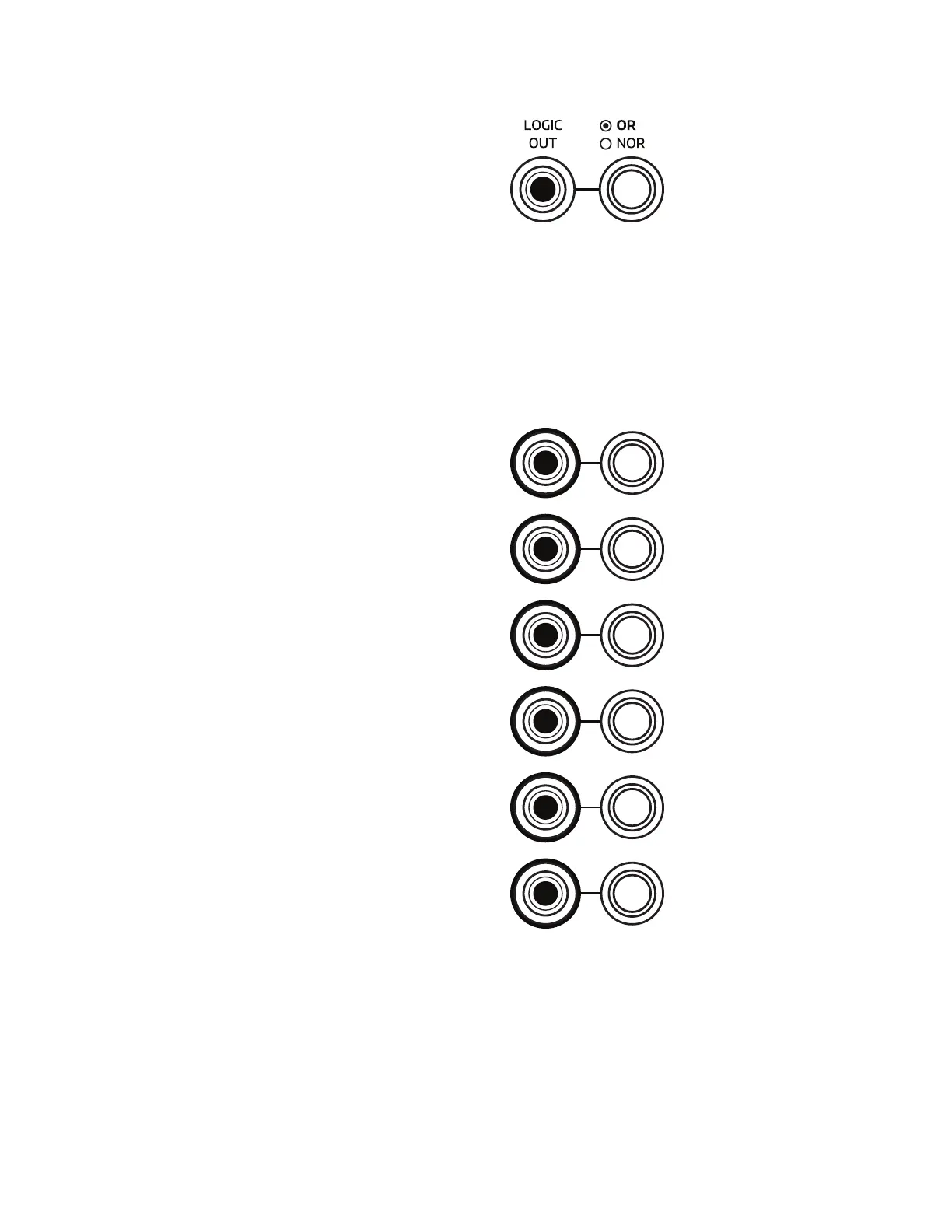

LOGIC OUT Jack and OR/NOR Switch
The Logic Out jack reflects the result of
the chosen logic gate. Its output is a
positive-going pulse (+5V).
The OR/NOR Switch controls the logic
gate used for the computation. When
illuminated, the OR gate is active. When
not illuminated, the NOR gate is active.
Input Jacks and ON/OFF Switches
Each of the six input jacks has its own
latching ON/OFF switch.
The ON state is latched (pressed down),
the OFF state is unlatched. In the ON
state, the baseline illumination of the
switch is ~50%. Incoming signals increase
the illumination of the switch to indicate
activity at that input.
In the OFF state, the switch is not
illuminated, but incoming signals increase
the illumination level to ~50% to provide
visual feedback about the status of
muted inputs.
